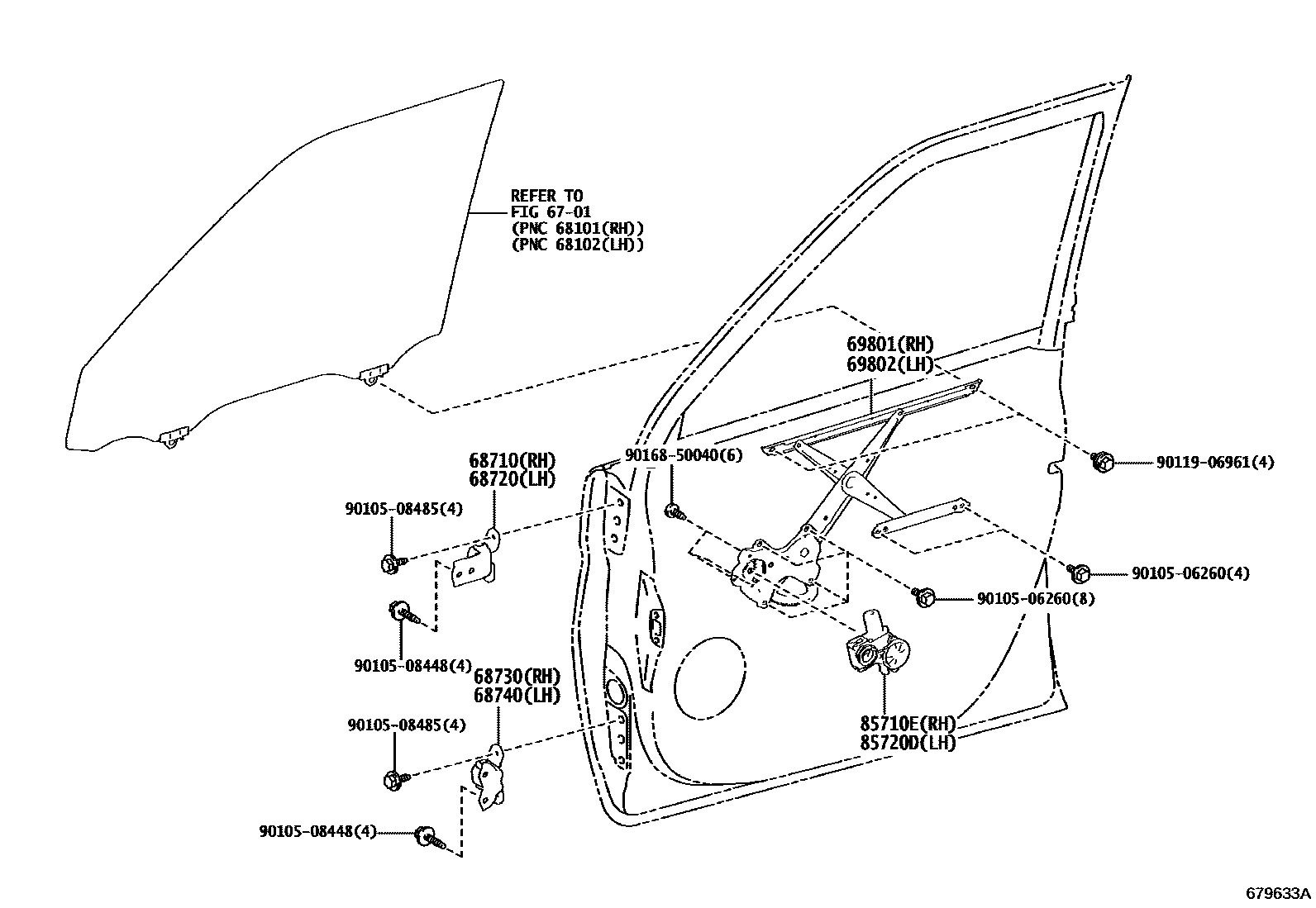

Toyota JPNTAXI — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iNTP10¥2,050201710

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iNTP10¥2,050201710

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iNTP10¥2,240201710

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iNTP10¥2,240201710

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12260iNTP10¥3,940201710

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12260iNTP10¥3,940201710

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52231iNTP10¥27,700201710-201712

sub85710-52232¥20,900

main85710-52232iNTP10¥20,900201801

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52211iNTP10¥21,100201710-201901

sub85720-52240¥15,900

main85720-52240iNTP10¥15,900201902

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906961

main90119-06961¥60

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
