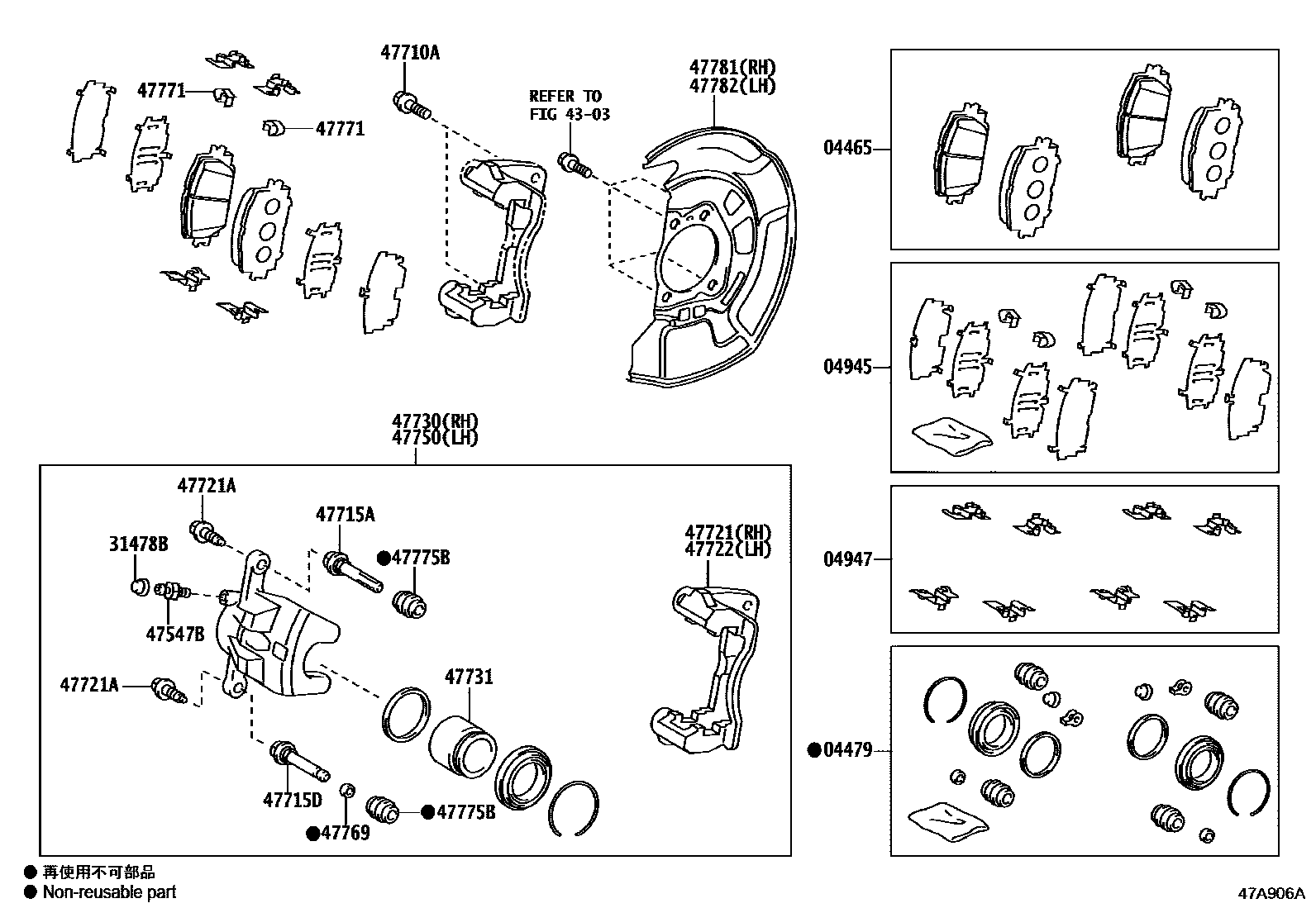

Toyota JPNTAXI — FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02220iNTP10¥10,100201710

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12060iNTP10¥1,800201710

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12111iNTP10¥1,850201710

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iNTP10¥2,080201710

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNTP10¥160201710

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNTP10¥200201710

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNTP10¥160201710

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iNTP10¥360201710

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iNTP10¥360201710

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12A10iNTP10¥5,200201710

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNTP10¥90201710

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12A10iNTP10¥5,200201710

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12A10iNTP10¥29,700201710

47731PISTON, FRONT DISC BRAKE

main47731-12A10iNTP10¥1,250201710

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12A10iNTP10¥29,700201710

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iNTP10¥50201710

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iNTP10¥140201710

47775BBOOT, BUSH DUST, NO.1

main47775-52190iNTP10¥210201710

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iNTP10¥1,050201710

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iNTP10¥1,050201710

21 parts on this diagram · 1 diagram in section
