Toyota JPNTAXI — CLEARANCE & BACK SONAR

5201

5202

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-15010iNTP10¥2,670202402

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iNTP10¥90202402

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-15020iNTP10¥14,700202402

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-50080-C0iNTP10..NAGOM202402

DUMMY-MAT BLACK

main89341-K0060-A0iNTP10..TAKUM202402

SUPER WHITE 2,040

sub89341-50080¥6,000

main89341-K0060-C2iNTP10..TAKUM202402

BLACK MC.,202 ,8Y4

sub89341-50080¥6,000

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-50080-C0iNTP10..NAGOM202402

DUMMY-MAT BLACK

main89341-K0060-C2iNTP10..TAKUM202402

BLACK MC.,���F�h��

sub89341-50080¥6,000

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-50080-C0iNTP10..NAGOM202402

DUMMY-MAT BLACK

main89341-K0060-A0iNTP10..TAKUM202402

SUPER WHITE 2,040

sub89341-50080¥6,000

main89341-K0060-C2iNTP10..TAKUM202402

BLACK MC.,202 ,8Y4

sub89341-50080¥6,000

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-50080-C0iNTP10..NAGOM202402

DUMMY-MAT BLACK

main89341-K0060-A0iNTP10..TAKUM202402

SUPER WHITE 2,040

sub89341-50080¥6,000

main89341-K0060-C2iNTP10..TAKUM202402

BLACK MC.,202 ,8Y4

sub89341-50080¥6,000

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iNTP10¥1,850202402

89347EBEZEL, ULTRASONIC SENSOR, FRONT CORNER

89347FBEZEL, ULTRASONIC SENSOR, FRONT CENTER

89348DCLIP, ULTRASONIC SENSOR

main89348-58130iNTP10¥0202402

89348UBEZEL, ULTRASONIC SENSOR, REAR CORNER

89348VBEZEL, ULTRASONIC SENSOR, REAR CENTER

9015970003

main90159-70003¥60

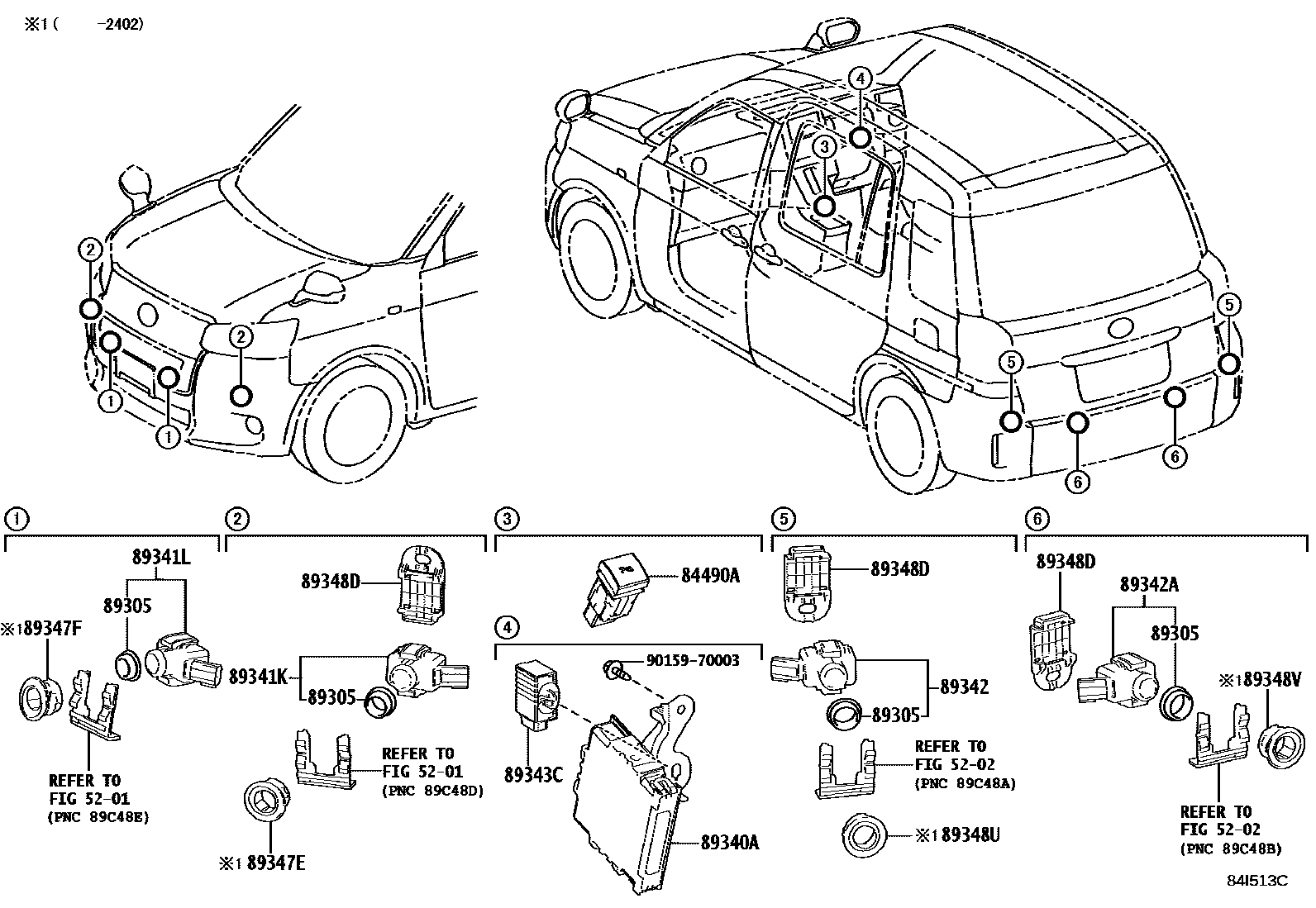

16 parts on this diagram · 1 diagram in section
