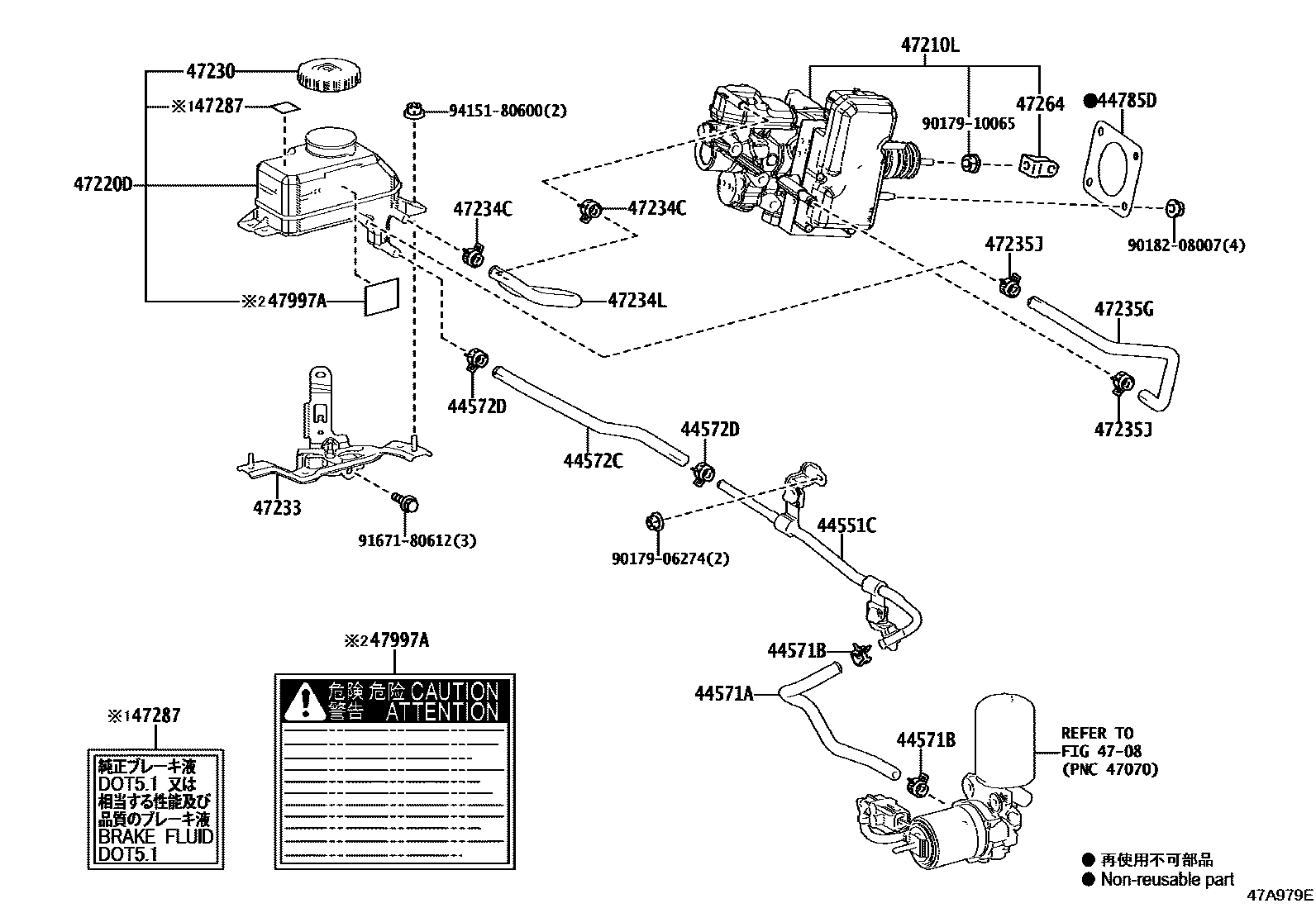

Toyota JPNTAXI — BRAKE MASTER CYLINDER

0001 1 0002 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-15010iNTP10¥1,660201710

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-15010iNTP10¥540201710

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501iNTP10¥120201710

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-15010iNTP10¥720201710-202001

main44572-15011iNTP10¥540202001

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501iNTP10¥120201710

44785DGASKET, BRAKE MASTER CYLINDER

main44785-16020iNTP10¥220201710

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-15010iNTP10¥178,000201710-202001

main47050-15011iNTP10¥133,000202001

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-15010iNTP10¥8,000201710-202001

main47220-15011iNTP10¥6,000202001

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-15010iNTP10¥770201710

47233BRACKET, RESERVOIR

main47233-15010iNTP10¥1,090201710-202001

main47233-15020iNTP10¥820202001

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96137-41501iNTP10¥120201710

47234LHOSE, RESERVOIR, NO.1

main47234-15010iNTP10¥320201710-202001

main47234-15011iNTP10¥180202001

47235GHOSE, RESERVOIR, NO.2

main47235-15010iNTP10¥460201710-202001

main47235-15011iNTP10¥340202001

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501iNTP10¥120201710

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iNTP10¥250201710-201711

47287LABEL, BRAKE FLUID INFORMATION

main47287-15010iNTP10¥110201710

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iNTP10¥110201710

9017906274

main90179-06274¥70

9017910065

main90179-10065¥90

9018208007

main90182-08007¥100

9167180612

main91671-80612¥60

9415180600

main94151-80600¥60

23 parts on this diagram · 2 diagrams in section
