Toyota IZOA — WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE 1/2 0008 1ENGINE 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1INSTRUMENT PANEL 0012 1DOOR 0013 1FLOOR & ROOF 0014 1HIGH VOLTAGE CABLE 0015 1SEAT 0016 1CLAMP & BRACKET 0017 1CONNECTOR 1/3 0018 1CONNECTOR 2/3 0019 1CONNECTOR 3/3

81269BSEAL, FOG LAMP

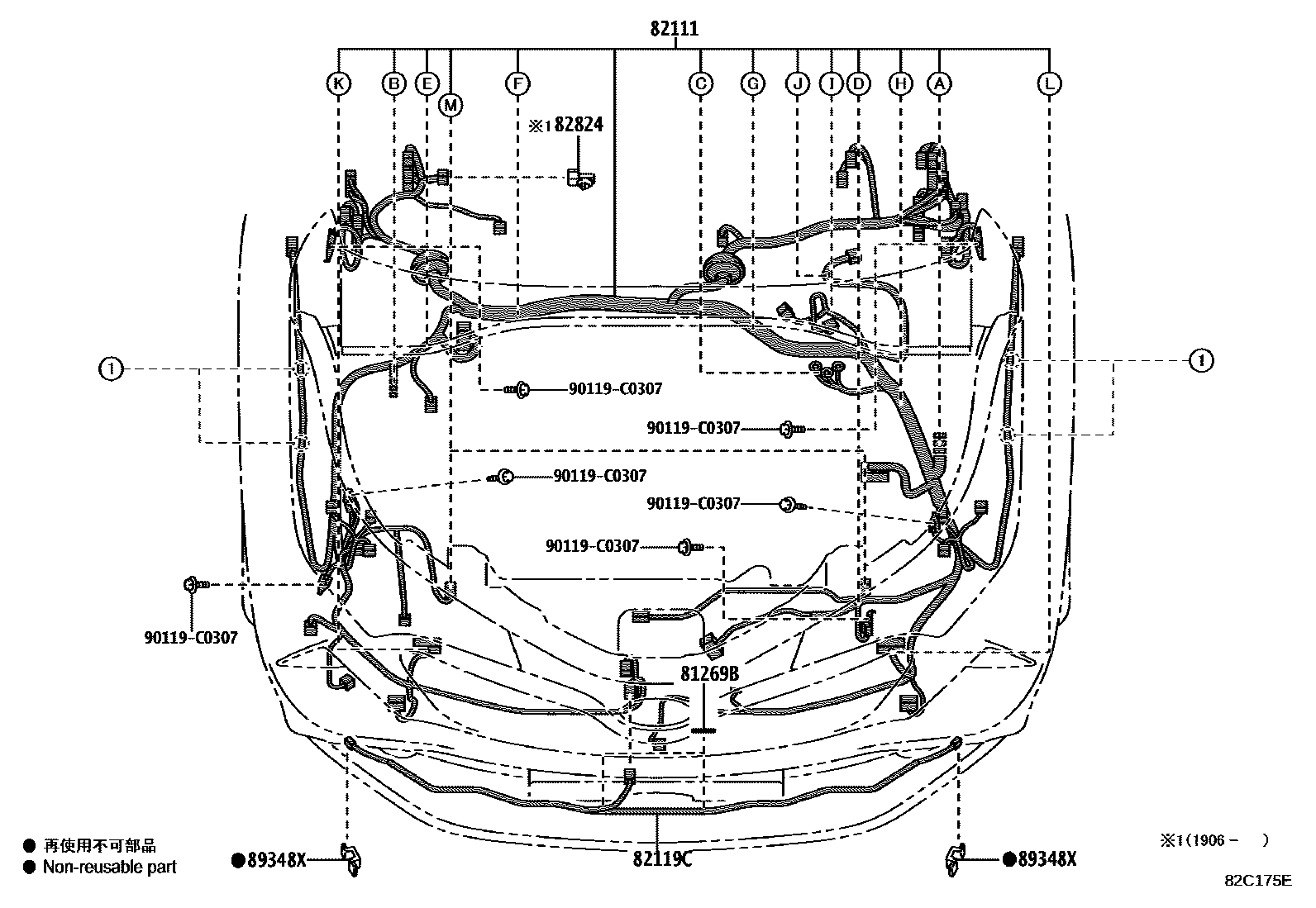

82111WIRE, ENGINE ROOM MAIN

main82111-F4K90iMAXA10..D202105-202304

main82111-F4K91iMAXA10..D202304

main82111-F4L00iMAXA10..N202105-202304

main82111-F4L01iMAXA10..N202304

main82111-F4L40iMAXA10..D201807-202005

main82111-F4L41iMAXA10..D202005-202105

main82111-F4L50iMAXA10..N201807-202005

main82111-F4L51iMAXA10..N202005-202105

main82111-F4L60iMAXA10..E201807-202005

main82111-F4L61iMAXA10..E202005-202105

main82115-F4300iMAXA10..G202105-202304

main82115-F4301iMAXA10..G202304

main82115-F4310iMAXH10..N202105-202304

main82115-F4311iMAXH10..N202304

main82115-F4320iMAXH10..E,G202105-202304

main82115-F4321iMAXH10..E,G202304

82119CWIRE, ENGINE ROOM, NO.5

main82119-F4150iMAXA10,MAXH10..G202105

main82119-F4160iMAXH10..E202105

82824CONNECTOR, WIRING HARNESS

main82824-12530iMAXA10¥550201906-202005

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-07120iMAXA10,MAXH10..G202112

(L)

main89348-50050iMAXA10,MAXH10..G¥260202105-202112

SPORT PACKAGE

main89348-50050iMAXA10,MAXH10..G¥260202112

(J)

90119C0307

main90119-C0307

6 parts on this diagram · 19 diagrams in section
