Toyota IZOA — V-BELT

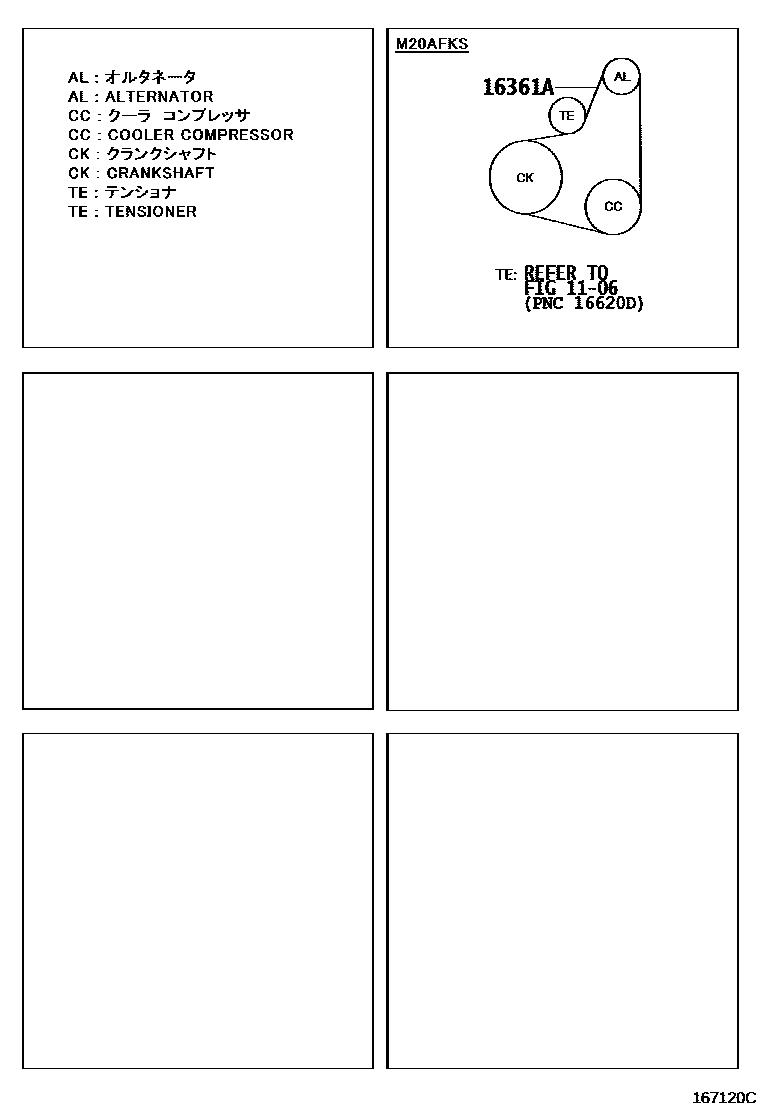

Parts diagram

1106

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02755i¥4,360201807-202102

main90916-02755i¥4,360202102-202105

(J)

main90916-C2018i202102-202105

(L)

main90916-C2018i202105-202303

main90916-C2024i202304

2 parts on this diagram · 1 diagram in section
