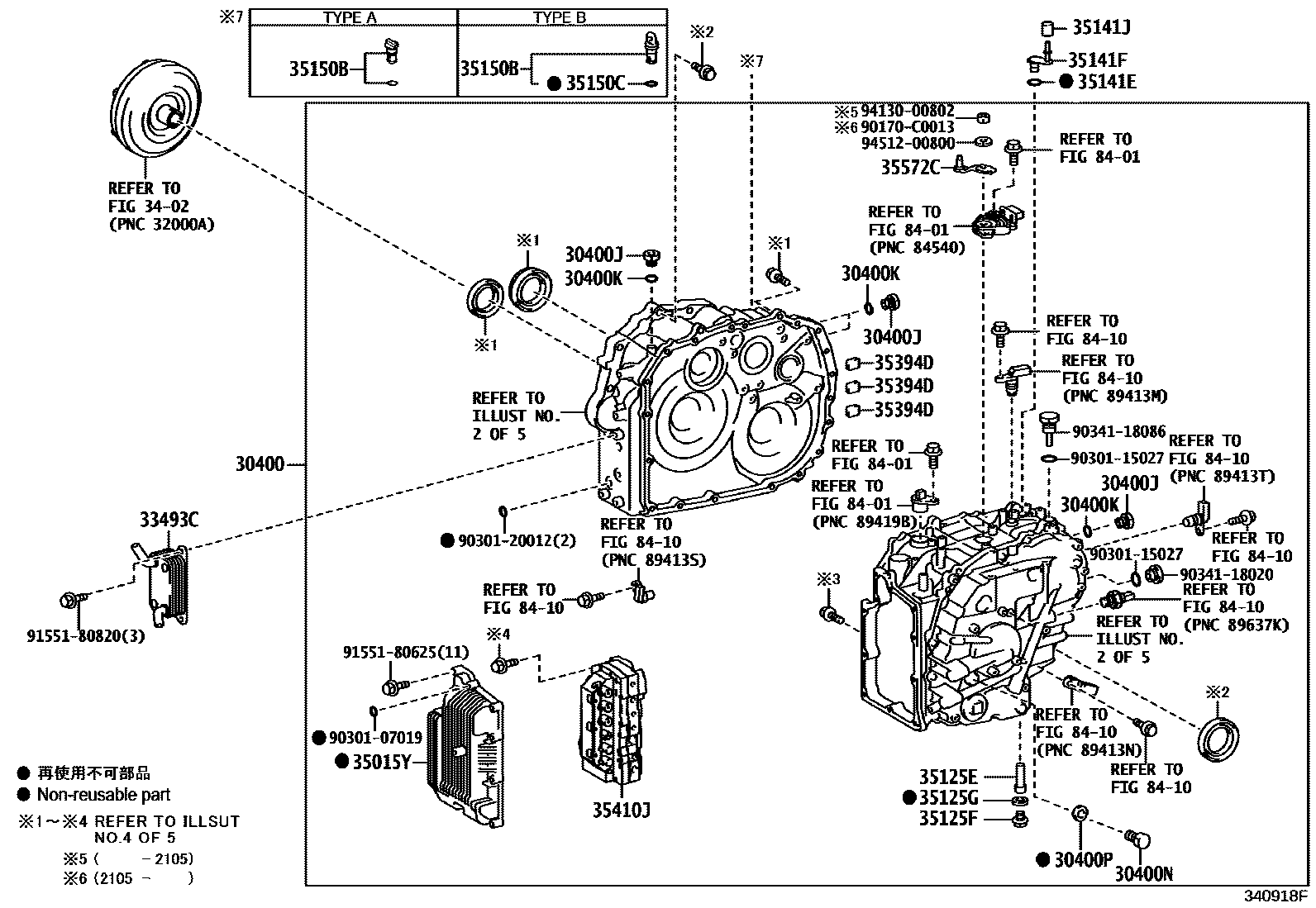

Toyota IZOA — TRANSAXLE ASSY(CVT)

0001 1K120 0002 1K120 0003 1K120 0004 1K120 0005 1K120 0006 1K121 0007 1K121 0008 1K121 0009 1K121 0010 1K121

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-10080iMAXA10¥351,000201807-202105

K120

main30400-F4010iMAXA10202105-202304

K120

main30400-F4020iMAXA10202304

K121

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMAXA10¥120201807-202105

main90341-08001iMAXA10¥120202105-202304

main90341-08001iMAXA10¥120202304

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMAXA10¥170201807-202105

main90301-C0061iMAXA10202105-202304

main90301-C0061iMAXA10202304

30400NPLUG, REFILL(CVT)

main90341-18077iMAXA10¥190201807-202105

main90341-C0011iMAXA10202105

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMAXA10¥110201807-202105

main90430-18008iMAXA10¥110202105-202401

main90430-18008iMAXA10¥110202401

(J)

main90430-C0007iMAXA10202401

(L)

33493CCOOLER, TRANSMISSION OIL

main33493-0A010iMAXA10202204

main33493-12090iMAXA10¥11,900201807-202105

main33493-12090iMAXA10¥11,900202105-202203

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12010iMAXA10¥9,500201807-202105

main35015-12010iMAXA10¥9,500202105-202304

main35015-42020iMAXA10202304

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMAXA10¥300202105

main35125-12500iMAXA10¥300201807-202105

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMAXA10¥190201807-202105

main90341-18016iMAXA10¥190202105

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMAXA10¥110201807-202105

main90430-18008iMAXA10¥110202105-202401

main90430-18008iMAXA10¥110202401

(J)

main90430-C0007iMAXA10202401

(L)

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMAXA10¥140202105

main90301-09173iMAXA10¥140201807-202105

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMAXA10¥660201807-202105

main90930-03240iMAXA10¥660202105

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMAXA10¥140202105

main90930-03243iMAXA10¥140201807-202105

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iMAXA10¥340202105-202304

TYPE B:REFER ILLUST.

main35150-48010iMAXA10¥280201807-202105

TYPE A:REFER ILLUST.

main35150-48010iMAXA10¥280202105-202304

TYPE A:REFER ILLUST.

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMAXA10¥140201807-202105

main90301-09173iMAXA10¥140202105-202304

35394DMAGNET, OIL CLEANER(CVT)

main35394-02010iMAXA10202105

main35394-48010iMAXA10¥280201807-202105

35410JBODY ASSY, TRANSMISSION VALVE

main35410-10240iMAXA10202304

main35410-12881iMAXA10¥53,700202001-202105

main35410-42070iMAXA10202105-202304

sub35410-12881¥53,700

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMAXA10¥590201807-202105

main35572-12190iMAXA10¥590202105

8401

8410

90170C0013

main90170-C0013

9030107019

main90301-07019¥170

9030115027

main90301-15027¥130

9030120012

main90301-20012¥170

9034118020

main90341-18020¥310

9034118086

main90341-18086¥310

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

31 parts on this diagram · 10 diagrams in section
