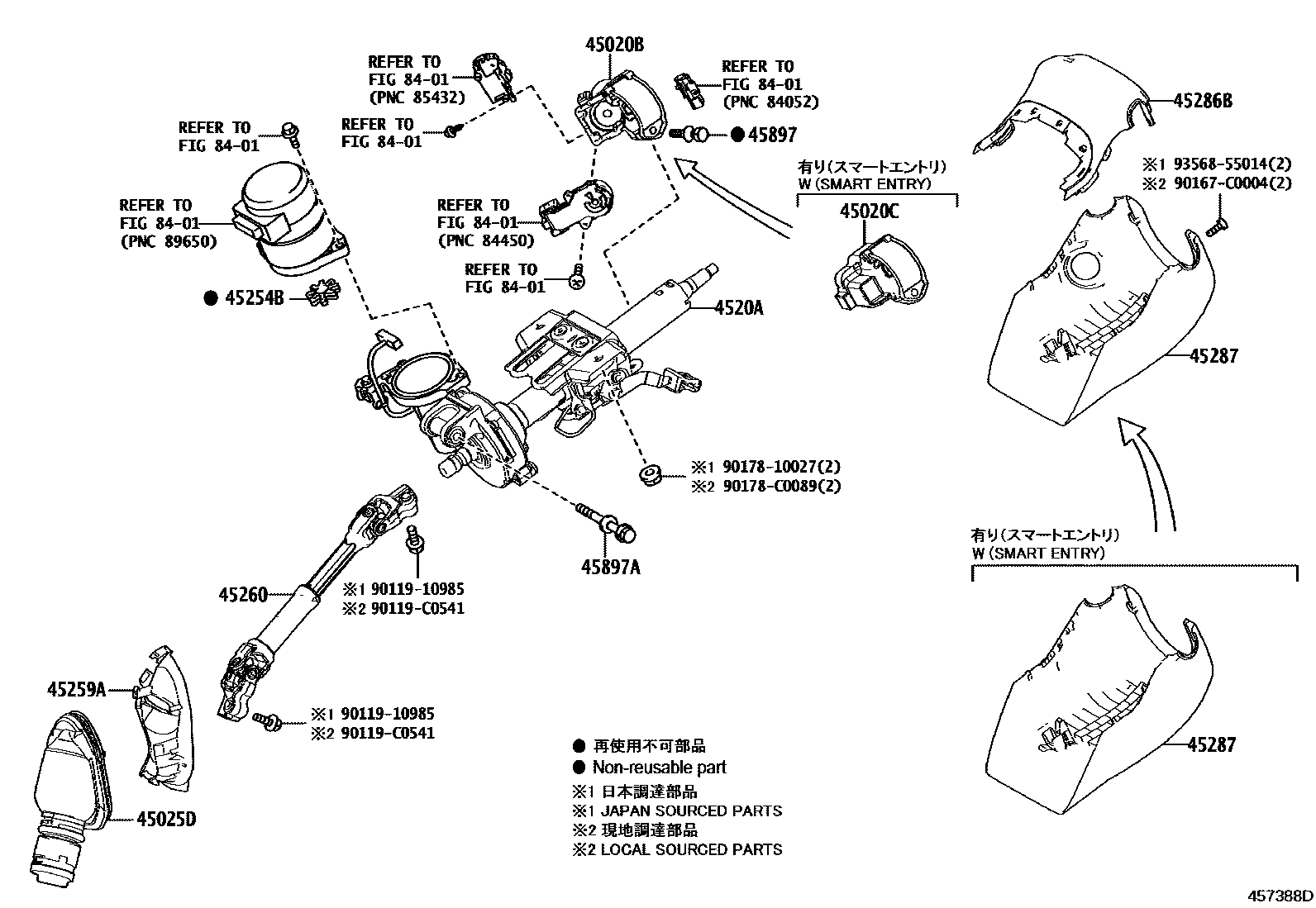

Toyota IZOA — STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#
BLACK,TRIM2#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
(J)
(J)
(L)
(L)
8401
9011910985
90119C0541
main90119-C0541
90167C0004
main90167-C0004
9017810027
90178C0089
main90178-C0089
9356855014
18 parts on this diagram · 1 diagram in section
