Toyota IZOA — SHORT BLOCK ASSEMBLY

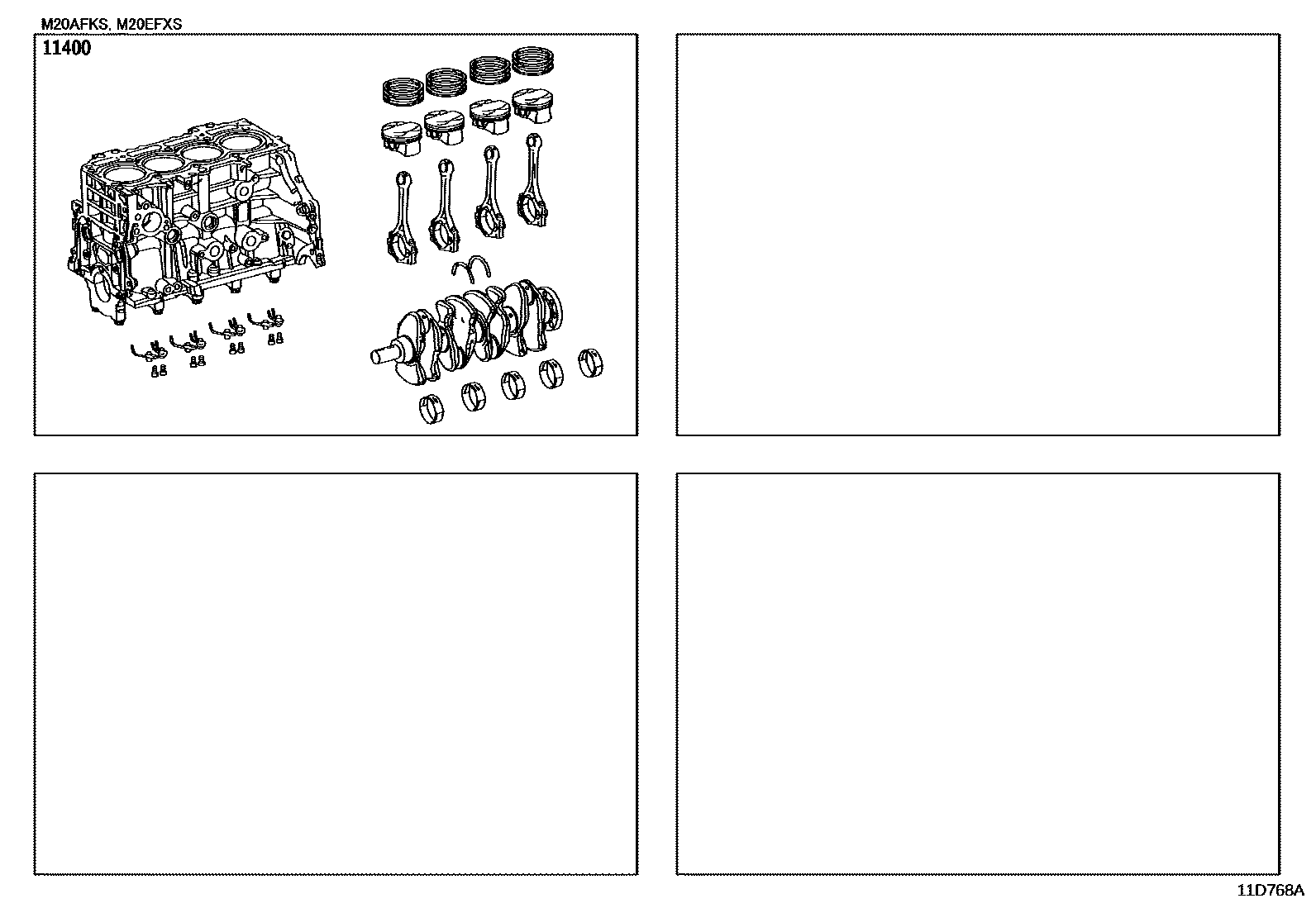

Parts diagram

11400BLOCK ASSY, SHORT

main11400-24030i¥232,000202105-202304

*632

main11400-24040i201807-202105

main11400-24090i202105-202304

*632

main11400-F2110i202102-202105

*633

main11400-F2120i202105-202206

*633

1 parts on this diagram · 1 diagram in section
