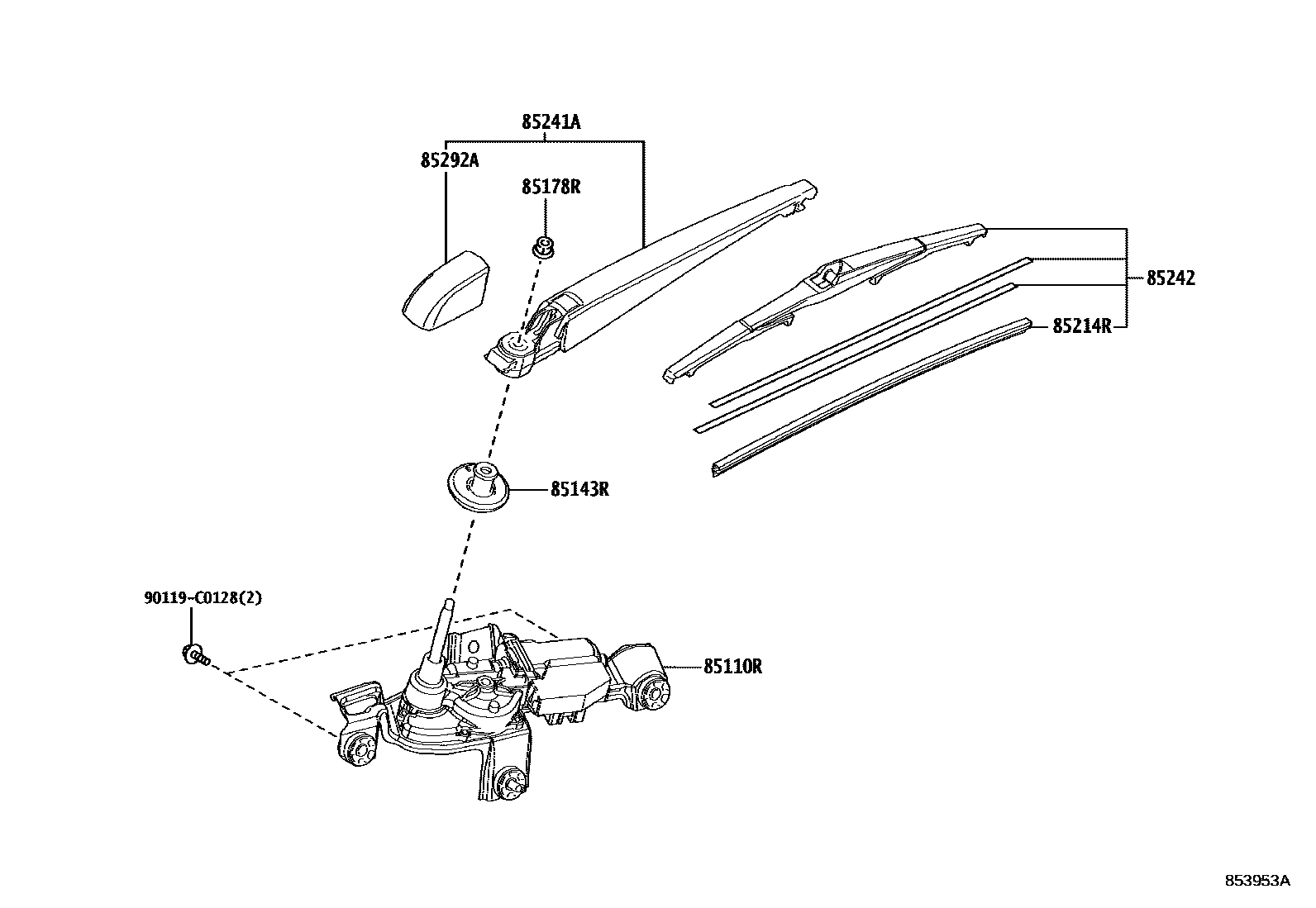

Toyota IZOA — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-F4050iMAXA10201807-202105

85143RGROMMET, REAR WIPER MOTOR

main85143-0R020iMAXA10201807-201810

main85143-F4040iMAXA10201811-202105

85178RNUT (FOR REAR WIPER ARM SETTING)

main90182-C0004iMAXA10201807-202105

85214RRUBBER, REAR WIPER

main85214-F4080iMAXA10201807-202105

85241AARM, REAR WIPER

main85241-F4030iMAXA10201807-202105

85242BLADE, RR WIPER

main85242-F4020iMAXA10201807-202105

85292ACAP, REAR WIPER ARM HEAD

main85292-F4050iMAXA10201807-202105

90119C0128

main90119-C0128

8 parts on this diagram · 1 diagram in section
