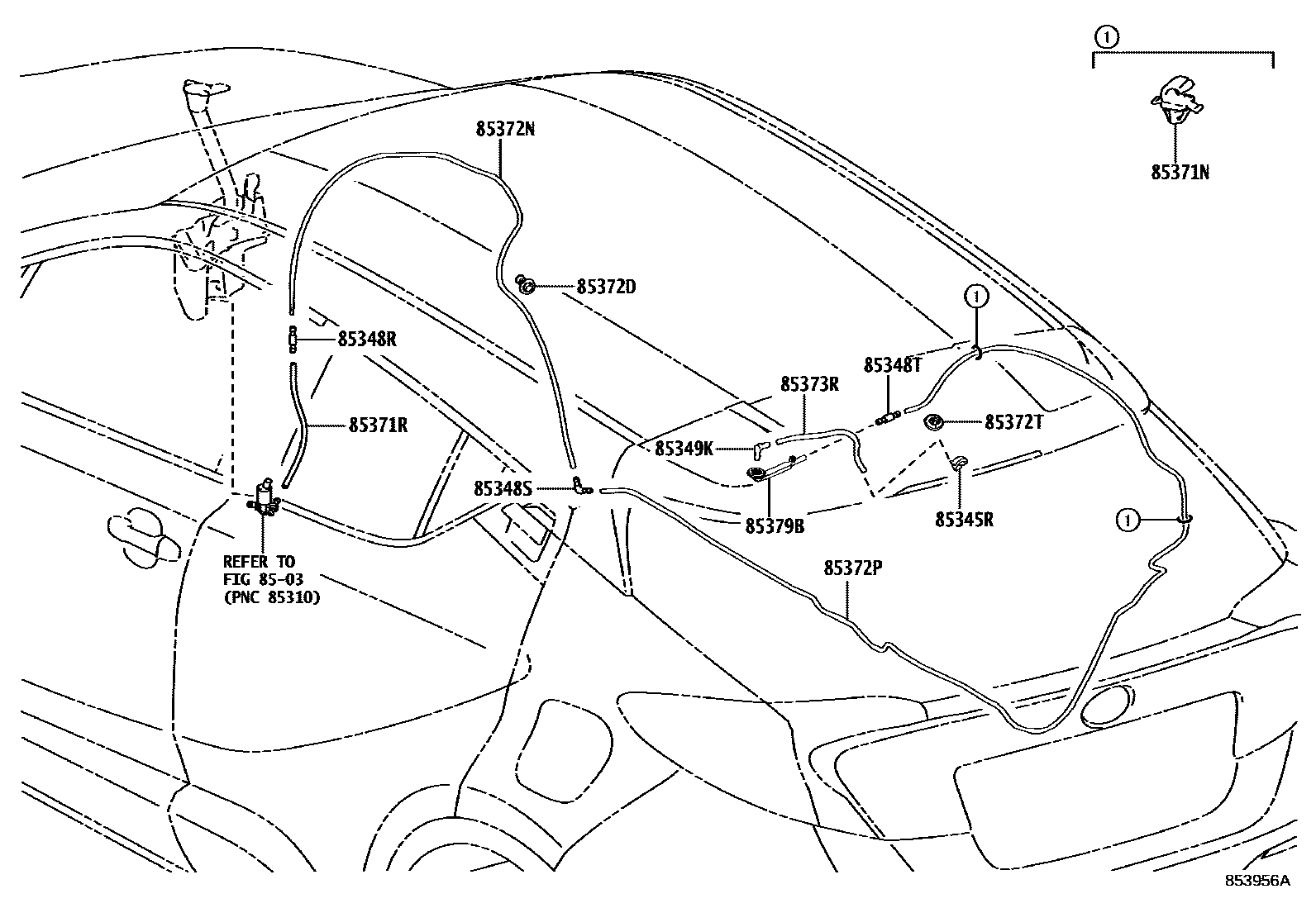

Toyota IZOA — REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
(L)
(J)
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=220
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1560
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3347
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=210
85379BGROMMET, WASHER, A
14 parts on this diagram · 1 diagram in section
