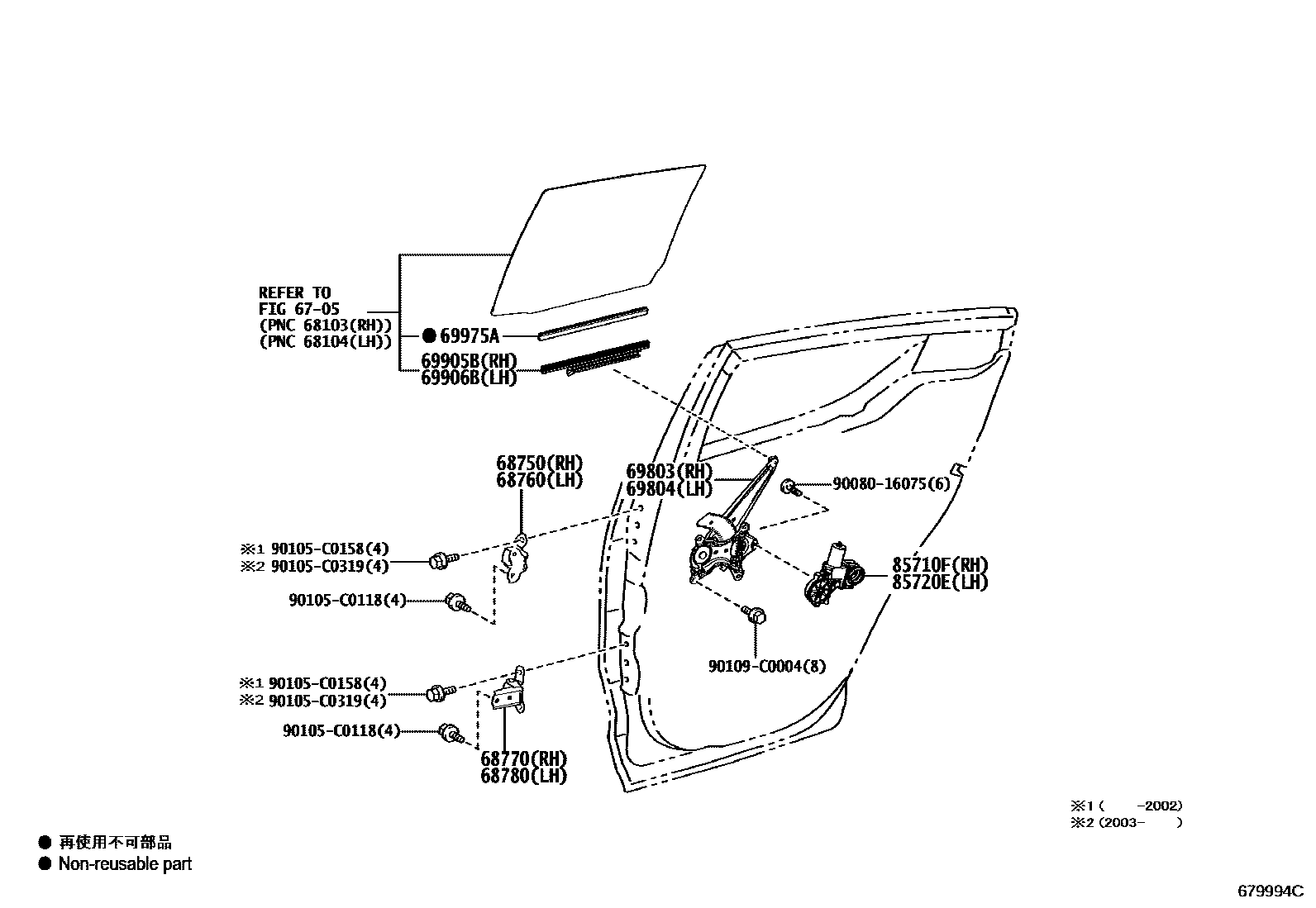

Toyota IZOA — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iMAXA10¥2,030201807-202105

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iMAXA10201807-202105

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D021iMAXA10201807-202105

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D021iMAXA10201807-202105

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-F4030iMAXA10201807-202105

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-F4030iMAXA10201807-202105

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-F4010iMAXA10201807-202105

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-F4010iMAXA10201807-202105

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-47020iMAXA10¥370201807-202105

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-10110iMAXA10¥23,000201807-201912

main85720-F4100iMAXA10202001-202105

main85720-F4120iMAXA10,MAXH10202105

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-10120iMAXA10¥23,000201807-201912

main85710-F4100iMAXA10202001-202105

main85710-F4120iMAXA10,MAXH10202105

9008016075

main90080-16075

90105C0118

main90105-C0118

90105C0158

main90105-C0158

90105C0319

main90105-C0319

90109C0004

main90109-C0004

17 parts on this diagram · 1 diagram in section
