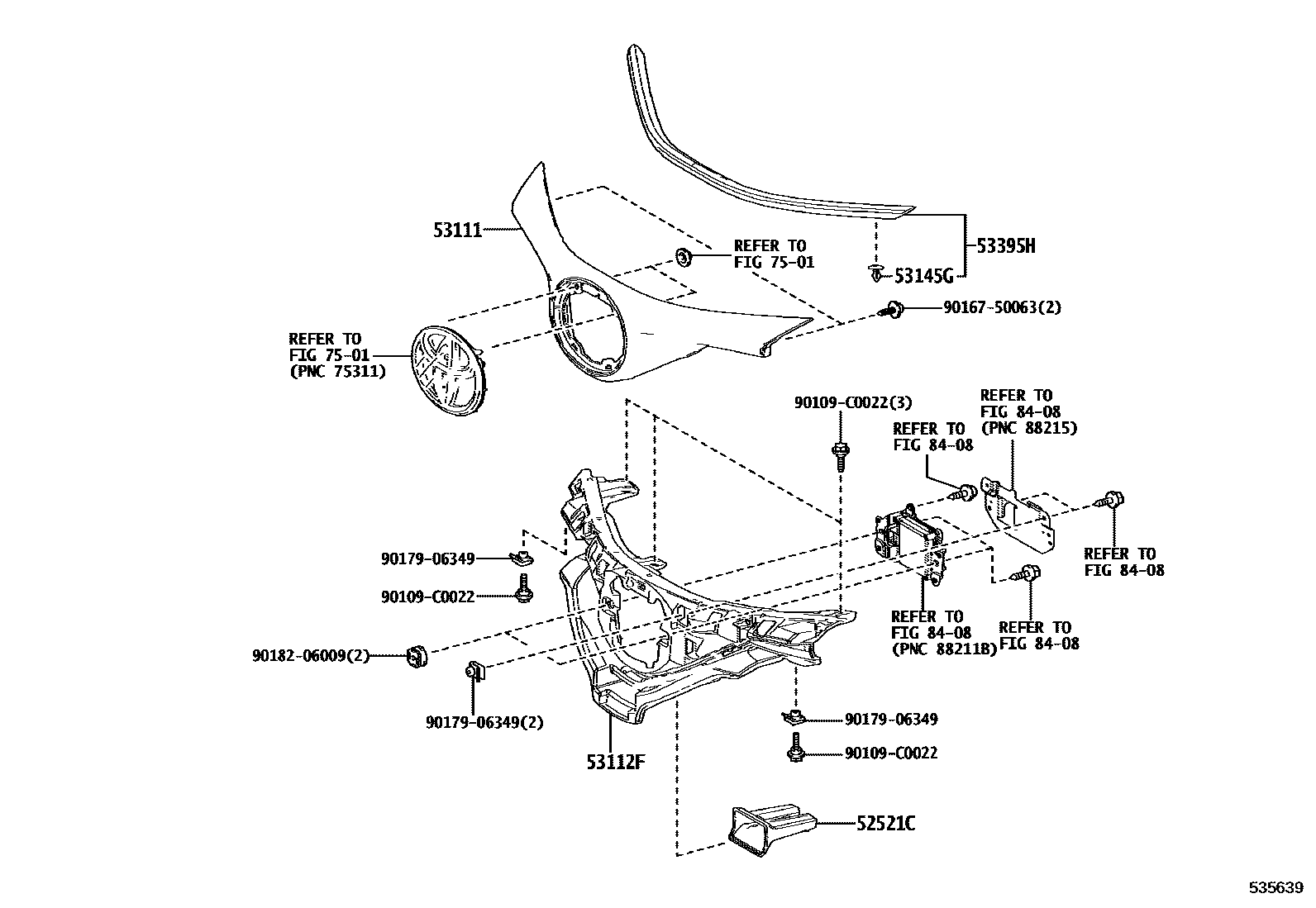

Toyota IZOA — RADIATOR GRILLE

0001 1 0002 1 0003 1

52521CRETAINER, FRONT BUMPER, UPPER

main52521-F4030iMAXA10201807-202105

53111GRILLE, RADIATOR

main53111-F4030iMAXA10201807-202105

NO PAINT REQ.

main53111-F4080iMAXA10,MAXH10..E,G202105

NO PAINT REQ.

main53111-F4100iMAXA10,MAXH10..D,N202105

NO PAINT REQ.

53112FGRILLE, RADIATOR, INSIDE

main53112-F4030iMAXA10201807-202105

main53112-F4090iMAXA10,MAXH10202105

53145GCLIP, RADIATOR GRILLE

main53145-02040iMAXA10201807-202105

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-F4030iMAXA10201807-202105

main53395-F4080iMAXA10,MAXH10202105

7501

8408

90109C0022

main90109-C0022

9016750063

main90167-50063¥60

9017906349

main90179-06349¥180

9018206009

main90182-06009¥100

11 parts on this diagram · 3 diagrams in section
