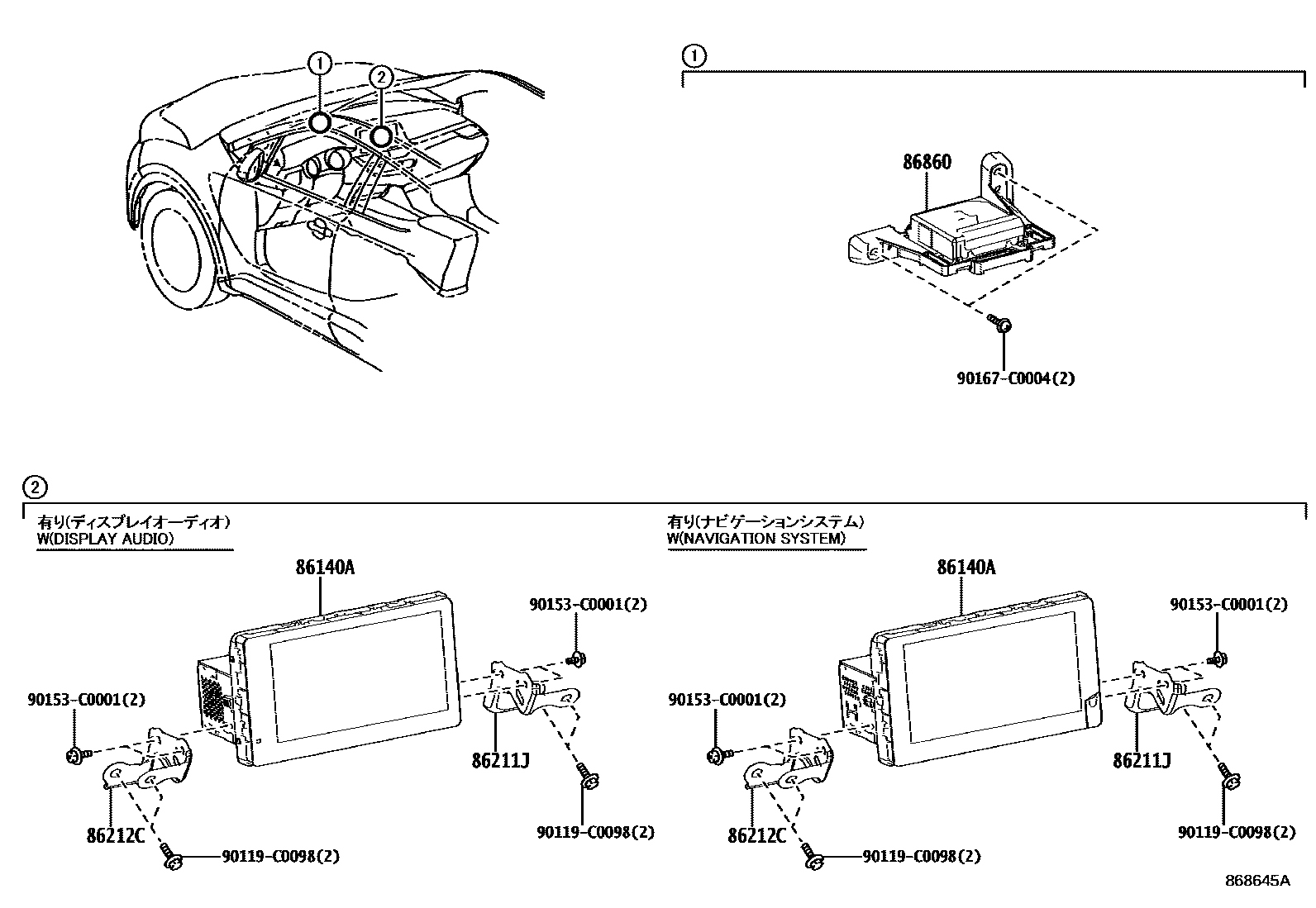

Toyota IZOA — NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-F4180iMAXA10,MAXH10..E,G,N202304-202306

DESAY

sub86140-F4181

main86140-F4181iMAXA10,MAXH10..E,G,N202307

DESAY

sub86140-F4182

main86140-F4190iMAXH10..N202304-202306

HANGSHENG

sub86140-F4191

main86140-F4190iMAXA10..D202304-202306

HANGSHENG,HV ENTRY PKG

sub86140-F4191

main86140-F4191iMAXH10..N202307

HANGSHENG,HV ENTRY PKG

main86140-F4191iMAXA10..D202307

HANGSHENG

main86140-F4280iMAXA10,MAXH10..E,G,N202105-202111

DENSO TEN

sub86140-F4281

main86140-F4281iMAXA10,MAXH10..E,G,N202112-202206

DENSO TEN

sub86140-F4282

main86140-F4282iMAXA10,MAXH10..E,G,N202207-202212

DENSO TEN

sub86140-F4283

main86140-F4283iMAXA10,MAXH10..E,G,N202301-202304

DENSO TEN

main86140-F4290iMAXA10..D202105-202207

DESAY

main86140-F4490iMAXA10..D202207-202304

DESAY

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-F4130iMAXA10,MAXH10202105-202304

main86211-F4170iMAXA10,MAXH10202304

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-F4130iMAXA10,MAXH10202105-202304

main86212-F4170iMAXA10,MAXH10202304

86860ANTENNA ASSY, NAVIGATION

main868A0-F4020iMAXA10,MAXH10202105

90119C0098

main90119-C0098

90153C0001

main90153-C0001

90167C0004

main90167-C0004

7 parts on this diagram · 1 diagram in section
