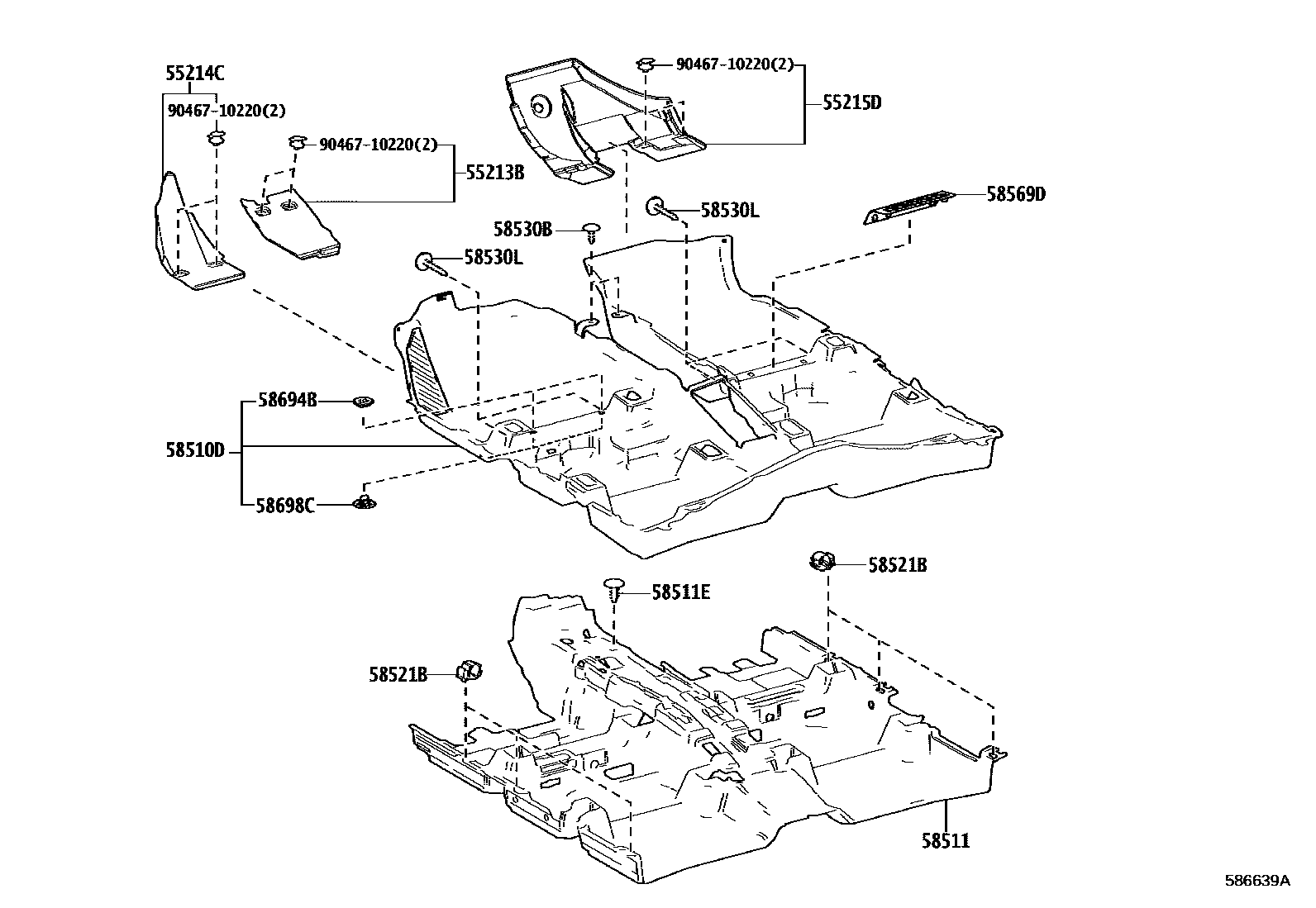

Toyota IZOA — MAT & CARPET

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-F4040iMAXA10201807-202105

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-F4040iMAXA10201807-202001

sub55214-F4041

main55214-F4041iMAXA10202002-202105

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-F4040iMAXA10201807-202105

58510DCARPET ASSY, FLOOR, FRONT

main58510-F4100-C0iMAXH10202105

BLACK,TRIM2#

main58510-F4110-C1iMAXA10201807-202105

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-F4060iMAXA10201807-202003

sub58511-F4061

main58511-F4061iMAXA10202004-202105

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C0iMAXA10201807-202003

BLACK

sub90467-07042¥110

sub90467-06175¥220

main90467-07042-C0iMAXA10202003-202105

BLACK,(J)

sub90467-07042¥110

sub90467-06175¥220

main90467-C0054-C0iMAXA10202003-202105

BLACK,(L)

58521BHOOK, FLOOR CARPET

main58521-F4010iMAXA10201807-202105

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-C0016-C1iMAXA10201807-202105

BLACK,TRIM2#

58530LCLIP, FLOOR CARPET, CENTER

main64726-10020-C2iMAXA10201807-202105

BLACK,TRIM2#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-F4010-C0iMAXA10201807-202105

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010iMAXA10¥130201807-202105

58698CPLATE, MAT SET, LOWER

main58698-78010iMAXA10¥230201807-202105

9046710220

main90467-10220¥80

13 parts on this diagram · 2 diagrams in section
