Toyota IZOA — LOCK CYLINDER SET

0001 1W(SMART ENTRY) 0002 1W/O(SMART ENTRY)

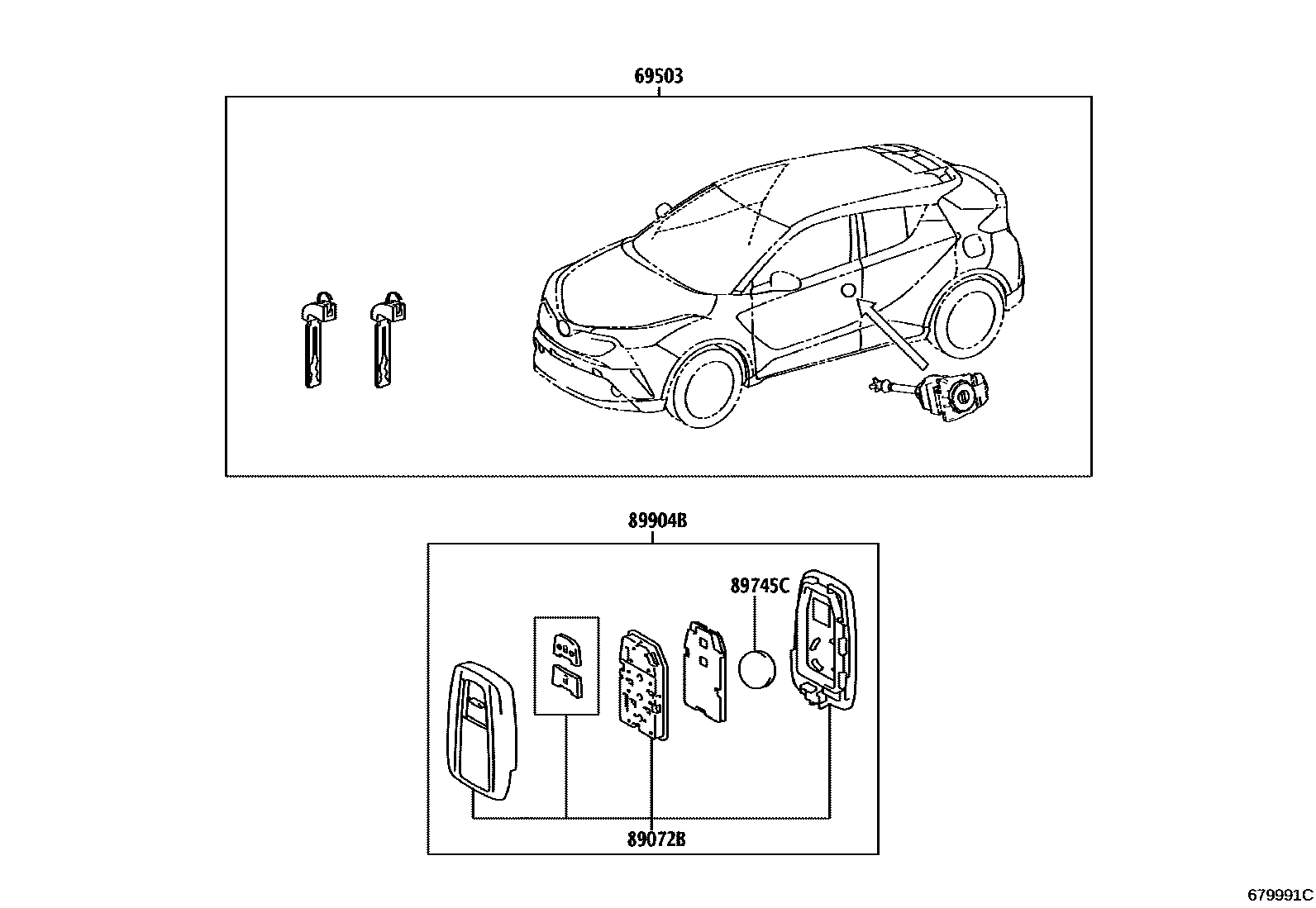

69503CYLINDER SET, LOCK

main69005-F4160iMAXA10..E,N201807-202105

main89704-F4250iMAXA10..D201807-202105

main89704-F4251iMAXA10..D202105

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-F4110iMAXA10..E,N201807-202105

main89072-F4111iMAXA10..G,N202105-202304

main89072-F4240iMAXH10202105-202304

main89072-F4310iMAXA10..G,N202304

main89072-F4320iMAXH10202304

89745CBATTERY, TRANSMITTER

main89745-45010iMAXA10..E,N¥440201807-202105

CR2032

sub89745-50020¥440

main89745-50020iMAXH10..E,G¥440202105-202304

CR2032

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-F4140iMAXA10..E,N201807-202105

main89904-F4141iMAXA10..G,N202105-202211

main89904-F4350iMAXH10202105-202211

main89904-F4450iMAXA10..G,N202205-202304

sub89904-F4141

main89904-F4460iMAXH10202205-202304

sub89904-F4350

main8990H-F4070iMAXA10..G,N202304

main8990H-F4080iMAXH10202304

4 parts on this diagram · 2 diagrams in section
