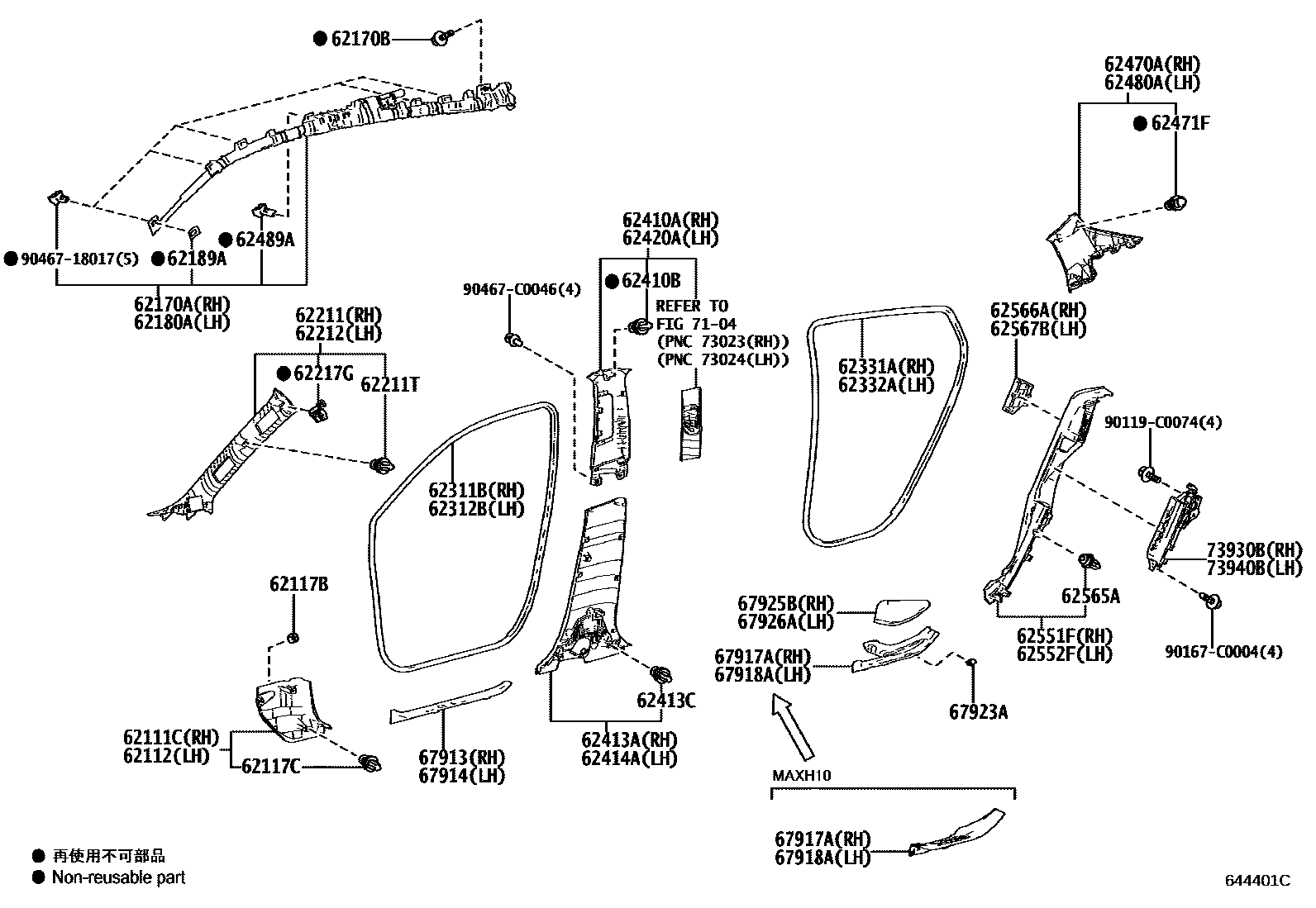

Toyota IZOA — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-F4041-C0iMAXA10201807-202105

BLACK,TRIM2#

main62111-F4041-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-F4041-C0iMAXA10201807-202105

BLACK,TRIM2#

main62112-F4041-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iMAXA10¥80201807-202105

main90467-06147iMAXA10,MAXH10¥80202105

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-C0036iMAXA10201807-202105

main90467-C0036iMAXA10,MAXH10202105

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-F4041iMAXA10201807-202105

main62170-F4041iMAXA10,MAXH10202105

62170BBOLT, W/WASHER

main90119-C0107iMAXA10201807-202105

main90119-C0107iMAXA10,MAXH10202105

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-F4041iMAXA10,MAXH10202105

main62180-F4041iMAXA10201807-202105

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iMAXA10¥80201807-202105

main62189-42010iMAXA10,MAXH10¥80202105

62211GARNISH, FRONT PILLAR, RH

main62210-F4060-B0iMAXA10,MAXH10202105

LT.GRAY,TRIM2#

main62210-F4060-C0iMAXA10201807-202105

BLACK,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-C0036iMAXA10201807-202105

main90467-C0036iMAXA10,MAXH10202105

62212GARNISH, FRONT PILLAR, LH

main62220-F4060-B0iMAXA10,MAXH10202105

LT.GRAY,TRIM2#

main62220-F4060-C0iMAXA10201807-202105

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020iMAXA10¥170201807-202105

main62217-24020iMAXA10,MAXH10¥170202105

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-F4030iMAXA10201807-202105

main62311-F4030iMAXA10,MAXH10202105

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-F4030iMAXA10201807-202105

main62312-F4030iMAXA10,MAXH10202105

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-F4030iMAXA10201807-202105

main62331-F4030iMAXA10,MAXH10202105

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-F4030iMAXA10201807-202105

main62332-F4030iMAXA10,MAXH10202105

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-F4040-C1iMAXA10201807-202105

BLACK,TRIM2#

main62410-F4040-C1iMAXA10,MAXH10202105

BLACK,TRIM2#

62410BCLIP

main90467-C0035iMAXA10¥110201807-202105

main90467-C0035iMAXA10,MAXH10¥110202105

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-F4041-C0iMAXA10201807-202105

BLACK,TRIM2#

main62413-F4041-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-C0036iMAXA10201807-202105

main90467-C0036iMAXA10,MAXH10202105

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-F4041-C0iMAXA10201807-202105

BLACK,TRIM2#

main62414-F4041-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-F4040-C1iMAXA10201807-202105

BLACK,TRIM2#

main62420-F4040-C1iMAXA10,MAXH10202105

BLACK,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-F4060-C0iMAXA10201807-202105

BLACK,TRIM2#

main62470-F4060-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-A0033iMAXA10¥80201807-202105

main90467-A0033iMAXA10,MAXH10¥80202105

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-F4060-C0iMAXA10201807-202105

BLACK,TRIM2#

main62480-F4060-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iMAXA10¥360201807-202105

main62489-28010iMAXA10,MAXH10¥360202105

62551FGARNISH, REAR SEAT SIDE, RH

main62551-F4091-C0iMAXA10201807-202105

BLACK,TRIM2#

main62551-F4091-C0iMAXA10202105

BLACK,TRIM2#

main62551-F4170-C0iMAXH10202105

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-F4050-C0iMAXH10202105

BLACK,TRIM2#

main62552-F4091-C0iMAXA10201807-202105

BLACK,TRIM2#

main62552-F4091-C0iMAXA10202105

BLACK,TRIM2#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main62217-13010iMAXA10,MAXH10¥80202105

main62217-13010iMAXA10¥80201807-202105

62566ACOVER, REAR PILLAR, RH

main62566-F4020-C0iMAXA10201807-202105

BLACK,TRIM2#

main62566-F4020-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

62567BCOVER, REAR PILLAR, LH

main62567-F4020-C0iMAXA10201807-202105

BLACK,TRIM2#

main62567-F4020-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-F4020-C0iMAXA10201807-202105

BLACK,TRIM2#

main67913-F4020-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-F4020-C0iMAXA10201807-202105

BLACK,TRIM2#

main67914-F4020-C0iMAXA10,MAXH10202105

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-F4041-C0iMAXA10201807-202105

BLACK,TRIM2#

main67917-F4041-C0iMAXA10202105

BLACK,TRIM2#

main67917-F4100-C0iMAXH10202105

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-F4041-C0iMAXA10201807-202105

BLACK,TRIM2#

main67918-F4041-C0iMAXA10202105

BLACK,TRIM2#

main67918-F4100-C0iMAXH10202105

BLACK,TRIM2#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030iMAXA10¥110201807-202105

main67923-30030iMAXA10,MAXH10¥110202105

67925BPANEL, REAR DOOR SCUFF, RH

main67925-F4020-C0iMAXA10201807-202105

BLACK,TRIM2#

main67925-F4020-C0iMAXA10202105

BLACK,TRIM2#

67926APANEL, REAR DOOR SCUFF, LH

main67926-F4020-C0iMAXA10201807-202105

BLACK,TRIM2#

main67926-F4020-C0iMAXA10202105

BLACK,TRIM2#

7104

73930BAIRBAG, REAR SEAT, RH

main73930-F4020iMAXA10201807-202105

main73930-F4020iMAXA10,MAXH10202105

73940BAIRBAG, REAR SEAT, LH

main73940-F4020iMAXA10201807-202105

main73940-F4020iMAXA10,MAXH10202105

90119C0074

main90119-C0074

90167C0004

main90167-C0004

9046718017

main90467-18017¥180

90467C0046

main90467-C0046

45 parts on this diagram · 1 diagram in section
