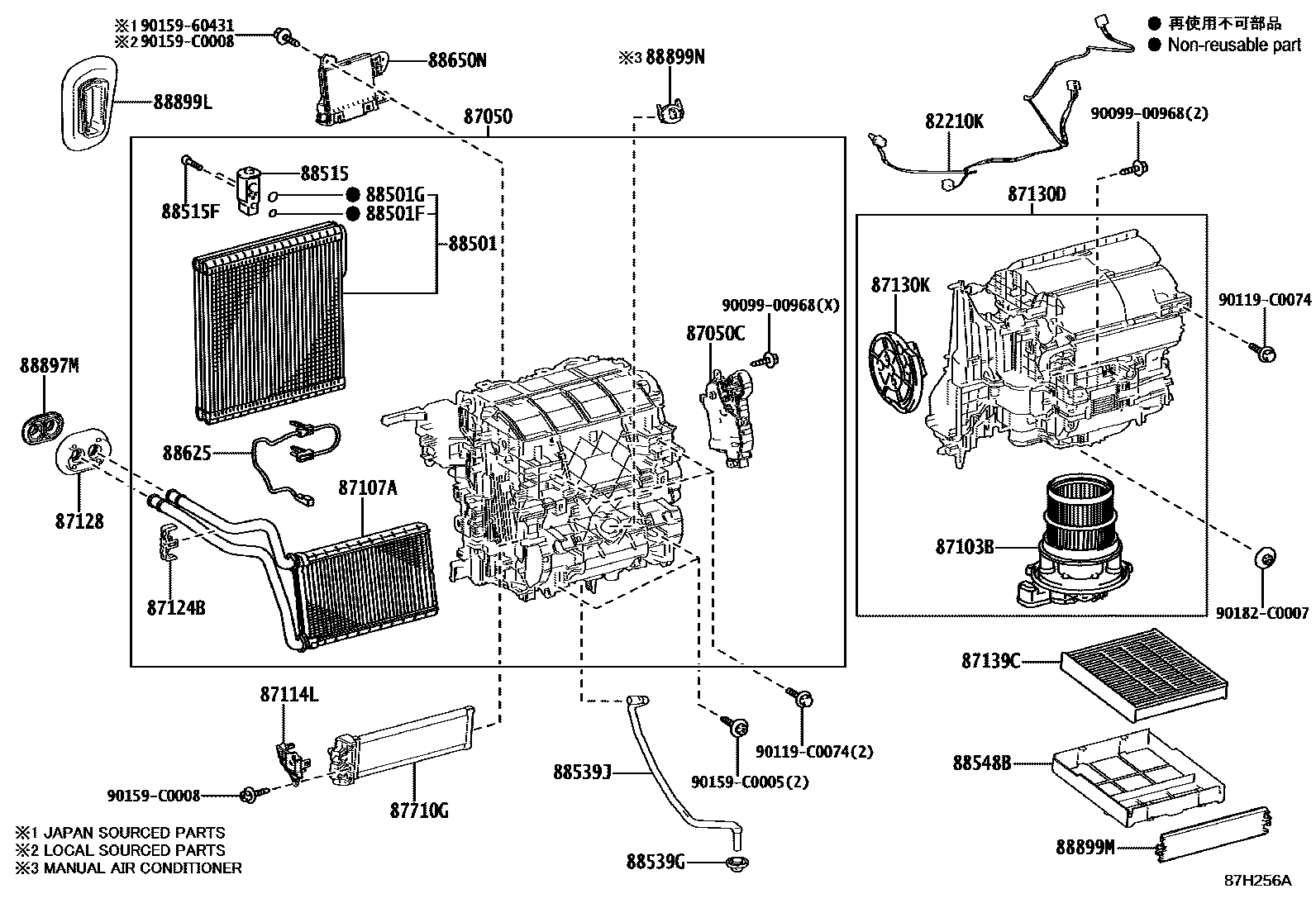

Toyota IZOA — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-F4040iMAXA10201807-202105

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0Z330iMAXA10202005-202105

main87050-F4080iMAXA10..E201807-202005

main87050-F4160iMAXA10..D,N201807-202005

main87050-F4190iMAXH10202105

main87050-F4240iMAXA10..E202005-202105

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4080iMAXA10..E201807-202105

main87106-F4150iMAXA10..D,N201807-202105

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0R040iMAXA10,MAXH10202105

main87103-F4060iMAXA10201807-202105

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-F4040iMAXA10,MAXH10201807-202105

87114LCOVER, HEATER, NO.2

main87114-F4100iMAXA10201807-201905

87124BCLAMP, HEATER

main87124-F4060iMAXA10201807-202105

87128GROMMET, HEATER

main87128-F4060iMAXA10201807-202105

87130DBLOWER ASSY

main87130-0R060iMAXA10,MAXH10202105

main87130-F4070iMAXA10201807-202105

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-F4090iMAXA10201807-202105

87139CFILTER, CLEAN AIR

main87139-02260iMAXA10202101-202304

MICRO DUST FILTER,OE PART

sub87139-02290

main87139-02290iMAXA10,MAXH10202305

MICRO DUST FILTER,OE PART

main87139-58010iMAXA10¥4,000201807-202105

DEODORANT FILTER

main87139-F4050iMAXA10201807-202101

MICRO DUST FILTER,OE PART

sub87139-02260

87710GQUICK HEATER ASSY

main87710-F4040iMAXA10201807-201905

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02460iMAXA10202005-202105

main88501-F4060iMAXA10201807-202005

main88501-F4130iMAXH10202105

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMAXA10¥0201807-202105

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iMAXA10201807-202105

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-F4040iMAXA10,MAXH10202005-202105

main88515-F4080iMAXA10201807-202005

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iMAXA10¥120201807-202105

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iMAXA10201807-202105

88539JHOSE, DRAIN COOLER

main88539-F4070iMAXA10201807-202105

88548BCASE, AIR FILTER

main88899-02260iMAXA10,MAXH10202101-202305

sub88899-02261

main88899-02261iMAXA10,MAXH10202305

main88899-F4350iMAXA10201807-202101

sub88899-02260

88625THERMISTOR, COOLER, NO.1

main88620-07020iMAXA10202005-202105

main88620-F4030iMAXA10201807-202005

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-F4110iMAXA10..D,N201807-202007

main88650-F4111iMAXA10..D,N202007-202105

main88650-F4130iMAXA10..E201807-202005

main88650-F4131iMAXA10..E202005-202105

main88650-F4220iMAXA10202105-202304

main88650-F4290iMAXH10202105

main88650-F4340iMAXA10202304

88897MGROMMET (FOR HEATER PIPE)

main87128-0A040iMAXA10,MAXH10202312

(L)

main87128-28010iMAXA10,MAXH10¥400202312

(J)

main87128-28010iMAXA10¥400201807-202312

88899LPARTS, COOLING UNIT

main88899-47070iMAXA10¥0201807-202005

main88899-F4330iMAXA10202005-202105

88899MPLATE, COVER(FOR AIR FILTER)

main88899-F4290iMAXA10201807-202105

88899NPLATE, COVER

main88899-F4370iMAXA10..D,N201807-202105

9009900968

main90099-00968

90119C0074

main90119-C0074

9015960431

main90159-60431¥70

90159C0005

main90159-C0005

90159C0008

main90159-C0008

90182C0007

main90182-C0007

32 parts on this diagram · 3 diagrams in section
