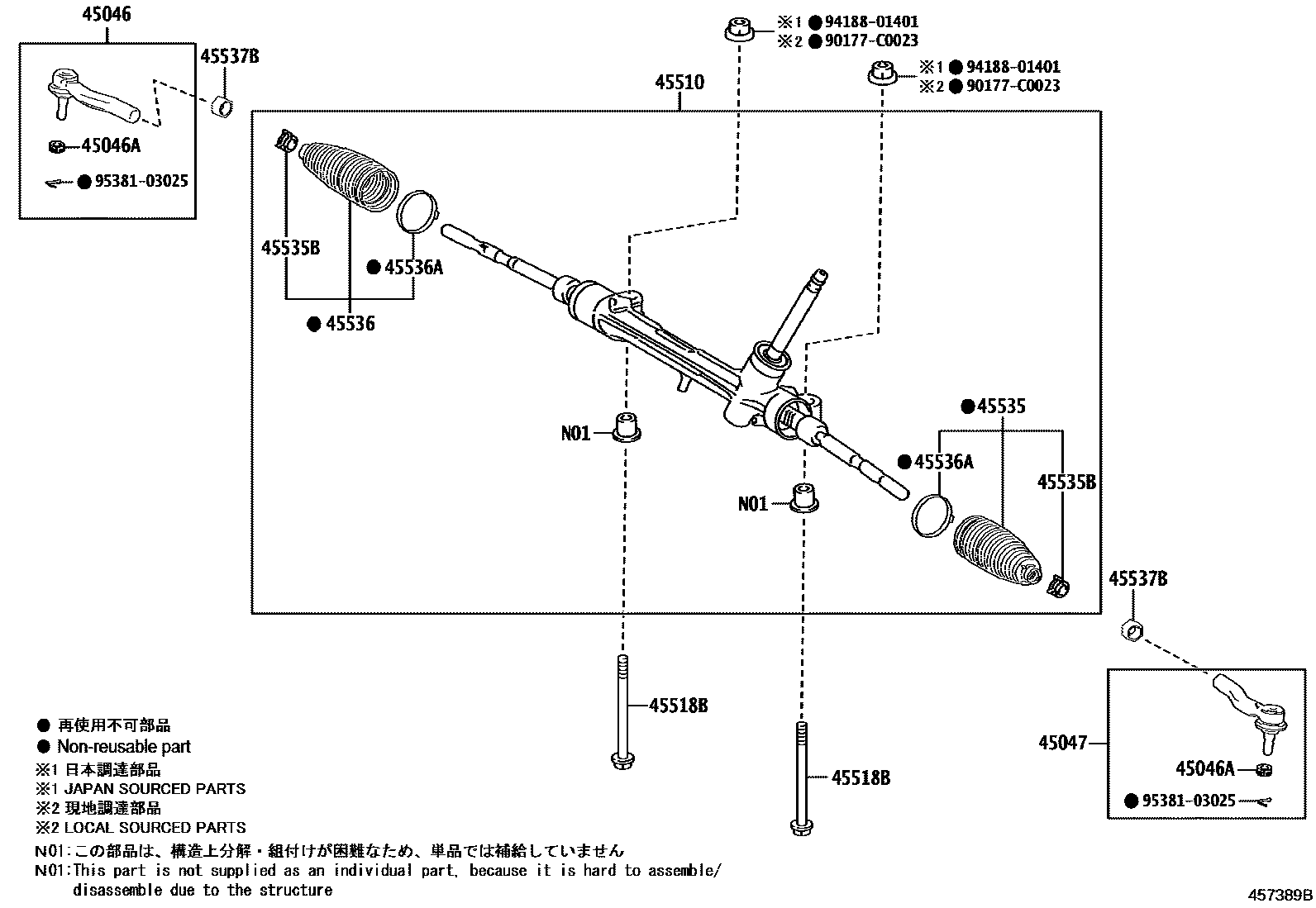

Toyota IZOA — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49265iMAXA10,MAXH10201807-202105

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMAXA10¥130201807-202105

(J)

main90171-C0001iMAXA10201807-202105

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-49205iMAXA10201807-202105

45510GEAR ASSY, STEERING

main45510-F4050iMAXA10201807-202105

45518BBOLT, STEERING RACK HOUSING

main90119-14158iMAXA10¥430201807-202105

(J)

main90119-C0536iMAXA10,MAXH10201807-202105

(L)

45535BOOT, STEERING RACK, NO.1

main45535-59105iMAXA10201807-202105

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030iMAXA10201807-202105

45536BOOT, STEERING RACK, NO.2

main45535-59105iMAXA10201807-202105

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D070iMAXA10201807-202105

45537BNUT, RACK END LOCK

main90178-16001iMAXA10¥120201807-202105

(J)

main90178-C0015iMAXA10201807-202105

(L)

90177C0023

main90177-C0023

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

13 parts on this diagram · 1 diagram in section
