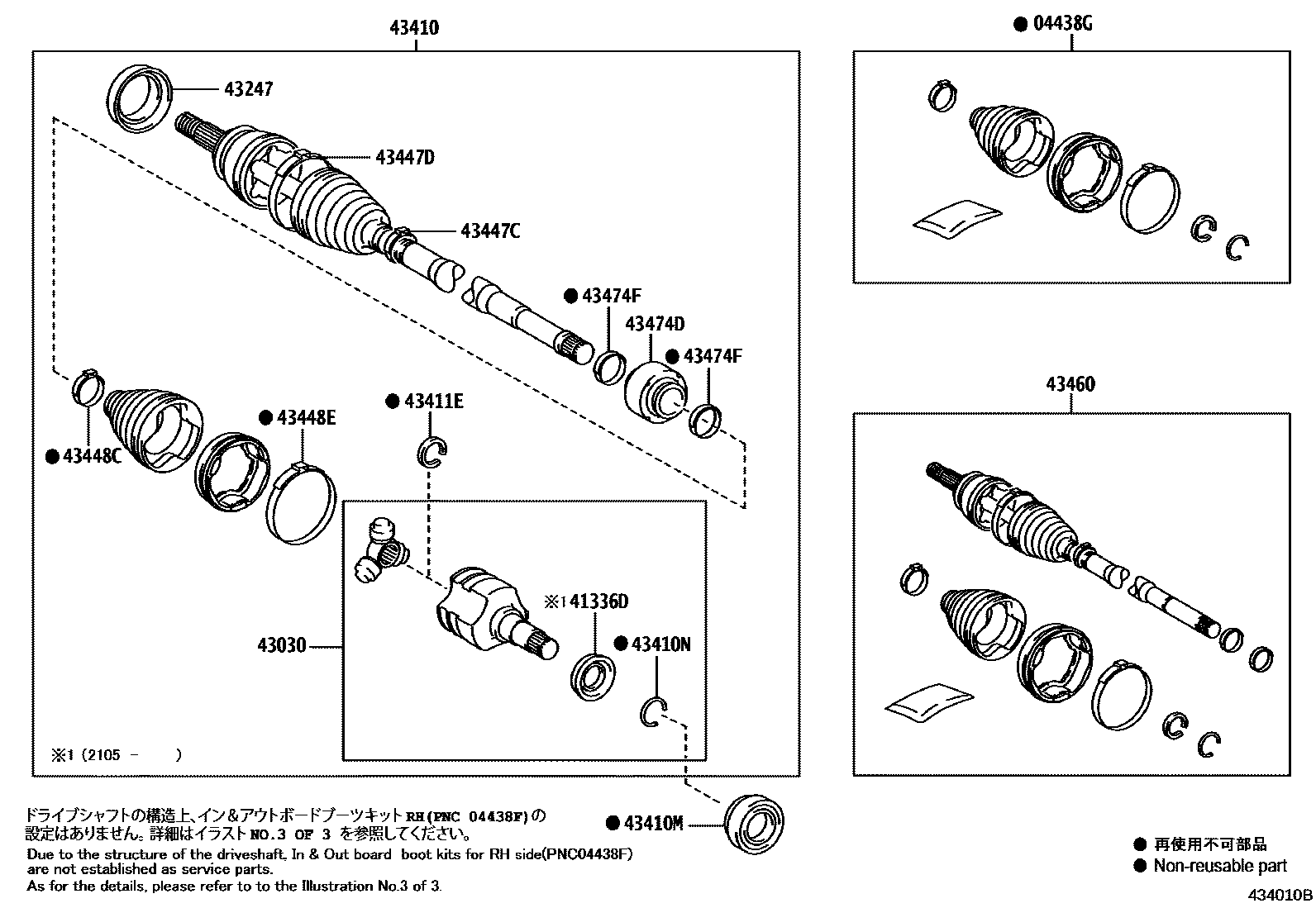

Toyota IZOA — FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH 0005 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-10040iMAXA10201807-202105

main04437-F4070iMAXH10202105

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02390iMAXA10202203

main41336-06330iMAXA10202105-202202

sub41336-02390

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-F4050iMAXH10202105

main43040-F4070iMAXA10201807-202105

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-F4020iMAXA10201807-202105

main43247-F4030iMAXH10202105

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-F4080iMAXA10201807-202105

main43410-F4170iMAXH10202105

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40047iMAXA10¥470201807-202105

main90311-40049iMAXH10¥470202105

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-F4170iMAXH10¥50202105

main90520-C0040iMAXA10201909-202105

(L)

main90521-33002iMAXA10¥100201909-202105

(J)

main90521-33002iMAXA10¥100201807-201909

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iMAXA10¥40201807-202105

(J)

main43425-F4130iMAXH10202105

main90520-C0029iMAXA10201807-202105

(L)

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iMAXA10¥220201807-202105

main42345-F4320iMAXH10202105

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iMAXA10¥340201807-202105

main42345-F4340iMAXH10202105

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iMAXA10¥220201807-202105

main42345-F4320iMAXH10202105

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iMAXA10¥330201807-202105

main42345-F4330iMAXH10202105

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49465iMAXA10201807-202105

main43460-F9120iMAXH10202105

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02570iMAXA10201807-202105

main43474-F4150iMAXH10202105

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-02310iMAXA10201807-202105

main42345-F4300iMAXH10202105

15 parts on this diagram · 5 diagrams in section
