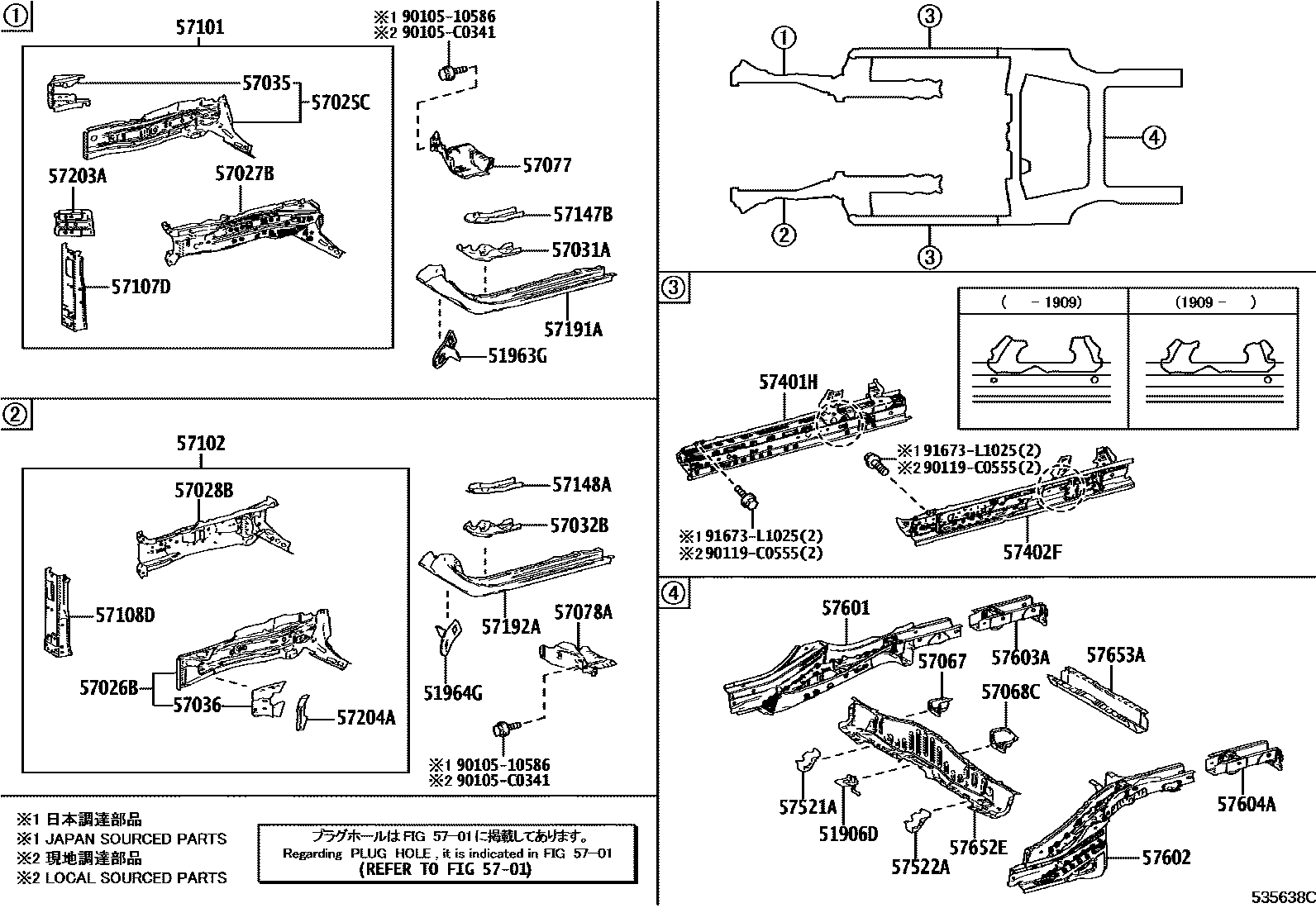

Toyota IZOA — FLOOR SIDE MEMBER

0001 1 0002 1

51906DHANGER SUB-ASSY, EXHAUST PIPE, NO.6

main51906-F4040iMAXA10201807-202105

51963GHOOK, TRANSPORT, FRONT RH

main51093-F4020iMAXA10201807-202002

51964GHOOK, TRANSPORT, FRONT LH

main51094-F4020iMAXA10201807-202002

5701

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-F4030iMAXA10201807-202105

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-F4030iMAXA10201807-202105

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-F4030iMAXA10201807-202105

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-F4030iMAXA10201807-202105

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-F4030iMAXA10201807-202105

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-F4030iMAXA10201807-202105

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-F4031iMAXA10201807-202105

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-F4031iMAXA10201807-202105

57067BRACKET SUB-ASSY, FUEL TANK MOUNTING, NO.1

main57067-F4030iMAXA10201807-202105

57068CBRACKET SUB-ASSY, FUEL TANK MOUNTING, NO.2

main57068-F4030iMAXA10201807-202105

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-F4030iMAXA10201807-202006

sub57077-F4031

main57077-F4031iMAXA10202006-202105

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-F4030iMAXA10201807-202006

sub57078-F4031

main57078-F4031iMAXA10202006-202105

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-F4904iMAXA10201807-202105

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-F4903iMAXA10201807-202105

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-F4030iMAXA10201807-202105

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-F4030iMAXA10201807-202105

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-F4030iMAXA10201807-202105

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-F4030iMAXA10201807-202105

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-F4030iMAXA10,MAXH10201807-202105

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-F4030iMAXA10201807-202105

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-F4031iMAXA10201807-202105

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-F4031iMAXA10201807-202105

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-F4030iMAXA10201807-201909

main57401-F4031iMAXA10201909-202303

sub57401-F4032

main57401-F4032iMAXA10,MAXH10202304

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-F4030iMAXA10201807-201909

main57402-F4031iMAXA10201909-202303

sub57402-F4032

main57402-F4032iMAXA10,MAXH10202304

57521ABRACKET, CENTER FLOOR CROSSMEMBER, RH

main57521-F4030iMAXA10,MAXH10201807-202105

57522ABRACKET, CENTER FLOOR CROSSMEMBER, LH

main57522-F4030iMAXA10,MAXH10201807-202105

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02610iMAXA10,MAXH10202208

main57601-F4030iMAXA10,MAXH10201807-202207

sub57601-02610

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02710iMAXA10,MAXH10202208

main57602-F4030iMAXA10201807-202207

sub57602-02710

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-F4030iMAXA10,MAXH10201807-202105

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-F4030iMAXA10201807-202105

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-02290iMAXH10202105

main57652-F4060iMAXA10201807-202105

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-F4030iMAXA10201807-202105

9010510586

main90105-10586¥100

90105C0341

main90105-C0341

90119C0555

main90119-C0555

91673L1025

main91673-L1025¥120

40 parts on this diagram · 2 diagrams in section
