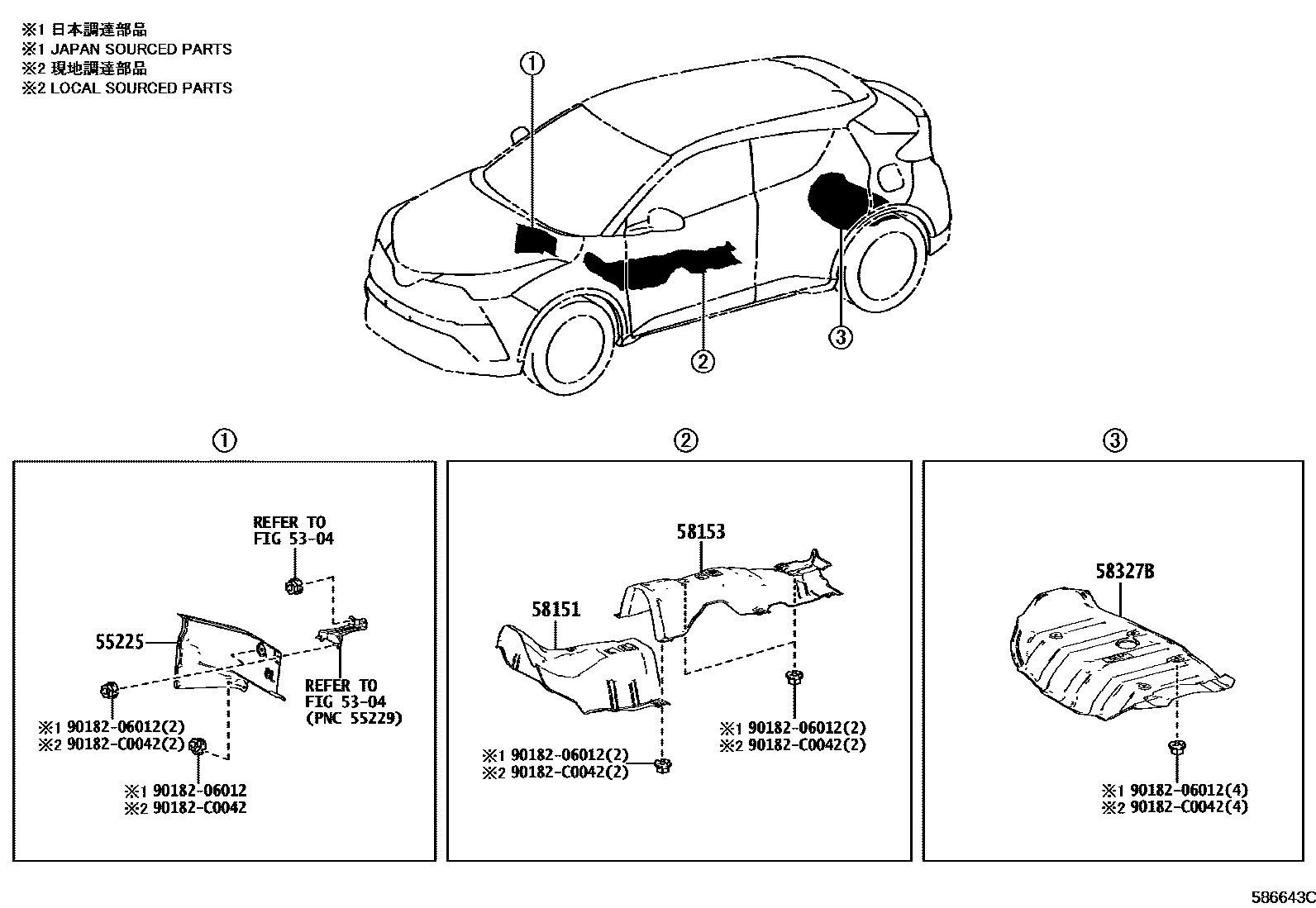

Toyota IZOA — FLOOR INSULATOR

0001 1 0002 1

5304

55225INSULATOR, DASH PANEL HEAT

main55225-F4030iMAXA10201807-202105

main55225-F4050iMAXH10202105

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0A110iMAXA10202304

main58151-F4070iMAXA10201807-202303

sub58151-0A110

main58151-F4100iMAXH10202105-202303

sub58151-F4180

main58151-F4180iMAXH10202304

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-F4040iMAXA10201807-202111

sub58153-F4041

main58153-F4041iMAXA10,MAXH10202112

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-F4040iMAXA10201807-202105

9018206012

main90182-06012¥60

90182C0042

main90182-C0042

7 parts on this diagram · 2 diagrams in section
