Toyota IZOA — ENGINE OVERHAUL GASKET KIT

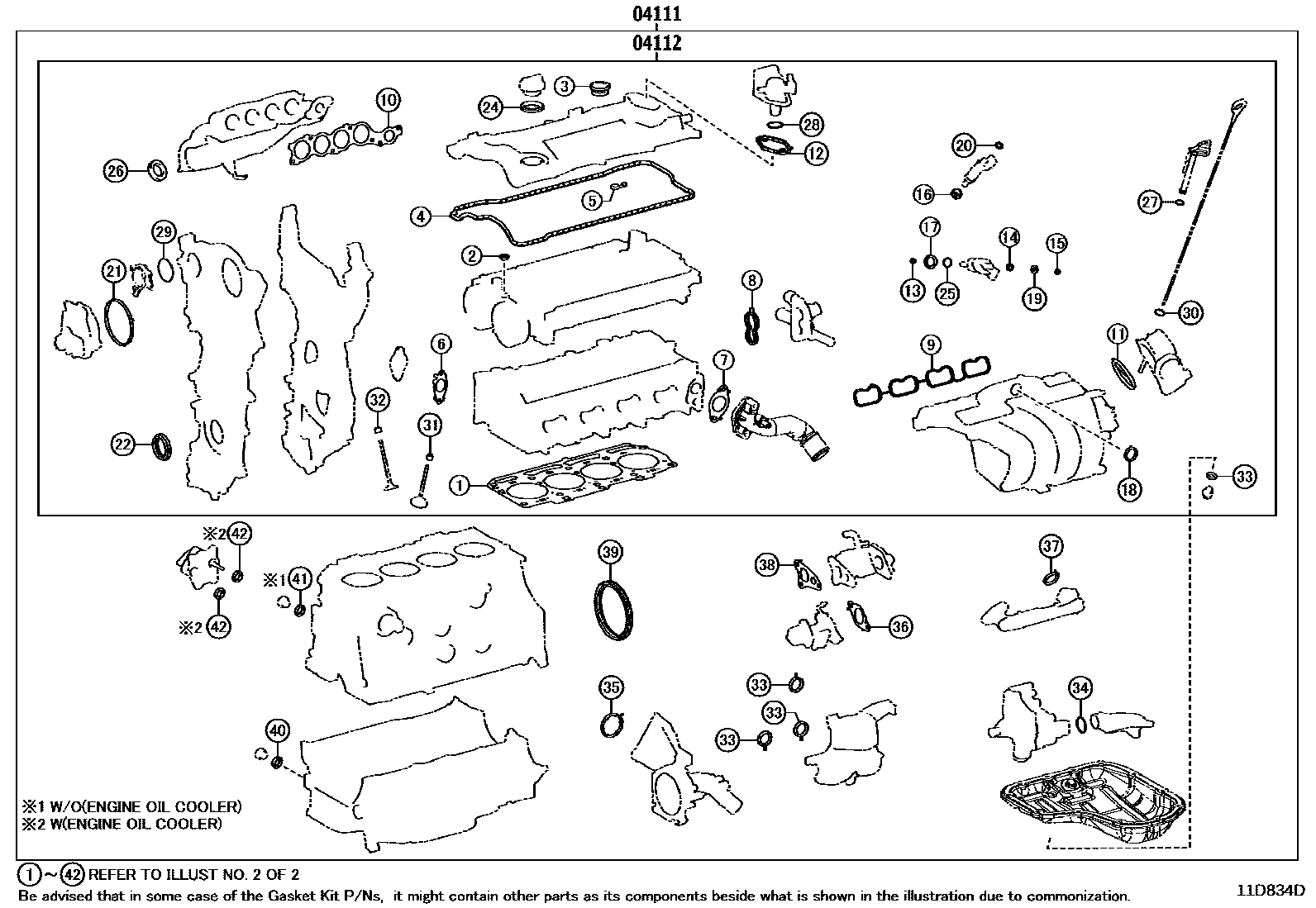

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-24110i202105-202107
*632
sub04111-24111
main04111-24111i202107-202304
*632
main04111-24120i201807-202105
*632
sub04111-24121¥26,000
main04111-F2110i202102-202105
*633
sub04111-F2111
main04111-F2140i202105-202110
sub04111-F2141
main04111-F2141i202110-202111
sub04111-F2142
main04111-F2142i202111-202206
sub04111-F2240
main04111-F2240i202206
04112GASKET KIT, ENGINE VALVE GRIND
main04112-24060i201807-202107
*632
sub04112-24061¥22,100
main04112-24061i¥22,100202107-202304
*632
main04112-F2100i202102-202105
*633
sub04112-F2101
main04112-F2130i202105-202110
sub04112-F2131
main04112-F2131i202110-202111
sub04112-F2132
main04112-F2132i202111-202206
sub04112-F2220
main04112-F2220i202206

2 parts on this diagram · 4 diagrams in section
