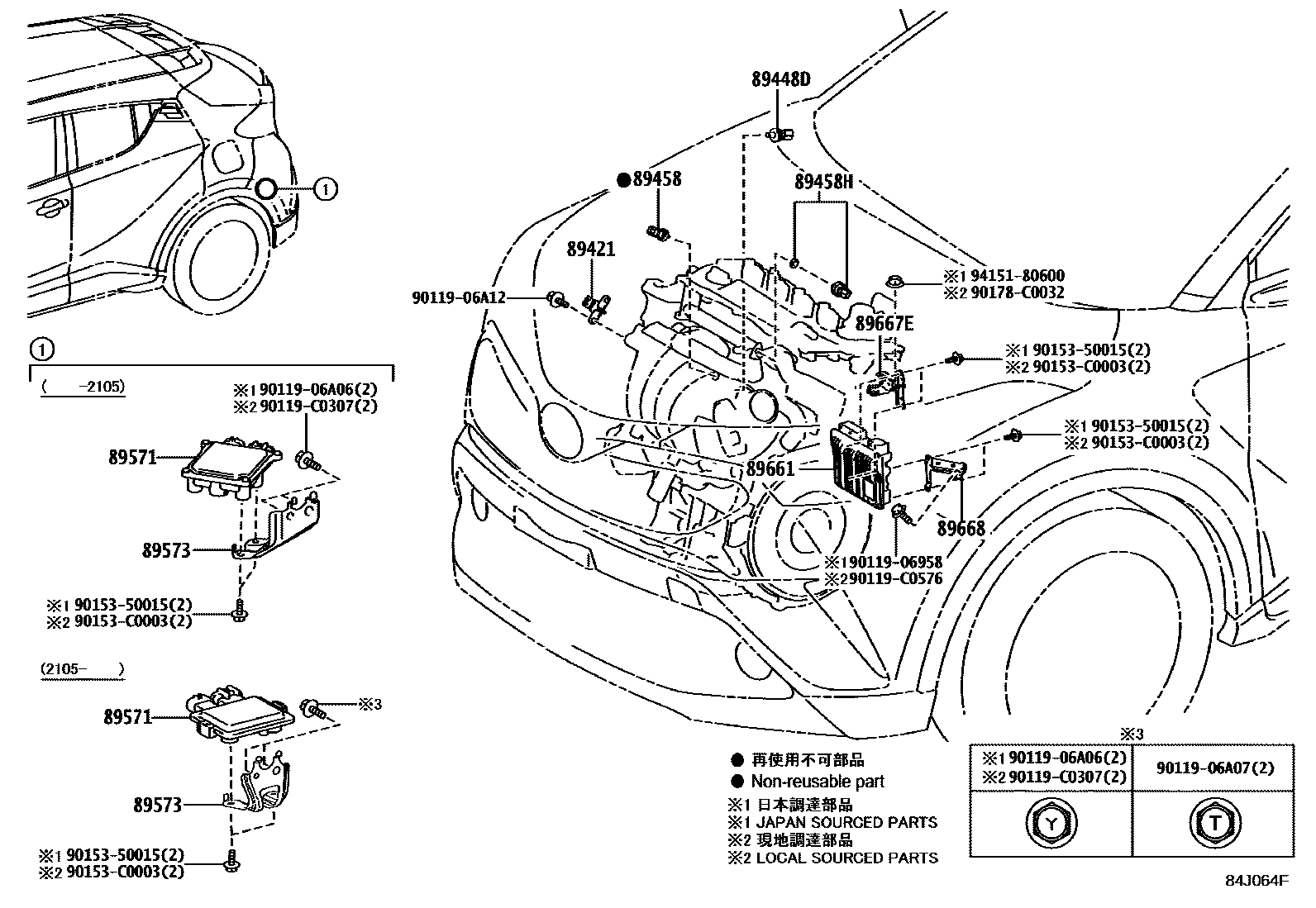

Toyota IZOA — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMAXA10¥5,900201807-202105

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-0R010iMAXA10,MAXH10202403

(L)

main89448-33010iMAXA10,MAXH10¥5,700201807-202403

main89448-33010iMAXA10,MAXH10¥5,700202403

(J)

89458SENSOR, FUEL PRESSURE

main89458-0R010iMAXA10,MAXH10202403

(L)

main89458-33030iMAXA10,MAXH10¥4,320201807-202403

main89458-33030iMAXA10,MAXH10¥4,320202403

(J)

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-0R020iMAXA10,MAXH10202403

(L)

main89458-33041iMAXA10¥4,760201807-202206

main89458-33042iMAXA10,MAXH10¥4,320202207-202403

main89458-33042iMAXA10,MAXH10¥4,320202403

(J)

89571COMPUTER, FUEL PUMP CONTROL

main89571-12010iMAXA10¥10,900201807-202105

main89571-48010iMAXA10,MAXH10¥9,900202105

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-F4010iMAXA10201807-202105

main89573-F4050iMAXA10,MAXH10202105

89661COMPUTER, ENGINE CONTROL

main89661-F4210iMAXA10201807-202105

DENSO

main89661-F4490iMAXA10202304

DENSO

main89661-F4610iMAXH10202105-202304

DENSO

main89661-F4620iMAXA10202105-202304

DENSO

main89661-F4660iMAXH10202304

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-F4060iMAXA10201807-202105

main89667-F4080iMAXH10202105

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-10070iMAXA10201807-201904

main89668-F4080iMAXA10201905-202105

main89668-F4100iMAXH10202105

9011906958

main90119-06958¥60

9011906A06

main90119-06A06¥60

9011906A07

main90119-06A07¥60

9011906A12

main90119-06A12¥60

90119C0307

main90119-C0307

90119C0576

main90119-C0576

9015350015

main90153-50015¥60

90153C0003

main90153-C0003

90178C0032

main90178-C0032

9415180600

main94151-80600¥60

19 parts on this diagram · 2 diagrams in section
