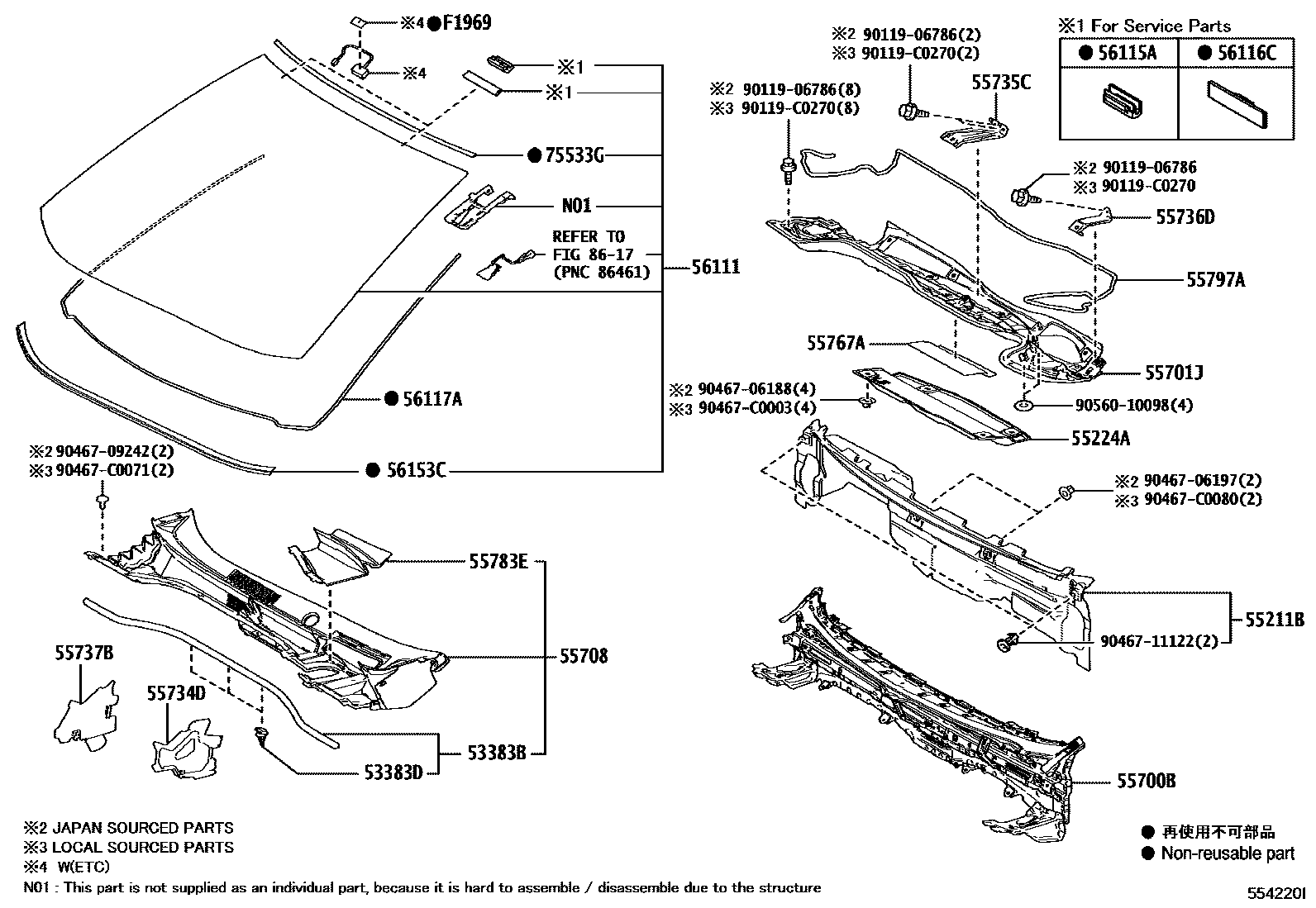

Toyota IZOA — COWL PANEL & WINDSHIELD GLASS
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55224AINSULATOR, DASH PANEL, OUTER NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55767ASHEET, COWL TOP INSULATOR, NO.5
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
GLASS MARK=FUYAO
GLASS MARK=ASAHI
GLASS MARK=E006888
GLASS MARK=E005771
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2979
L=2979
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
GLASS MARK=FUYAO
GLASS MARK=E006888
GLASS MARK=E005771
GLASS MARK=ASAHI
GLASS MARK=ASAHI
8617
F1969TAPE, SEAL(FOR TOLL COLLECTION COMPUTER)
mainF1969-YY010
9011906786
90119C0270
main90119-C0270
9046706188
9046706197
9046709242
9046711122
90467C0003
main90467-C0003
90467C0071
main90467-C0071
90467C0080
main90467-C0080
9056010098
32 parts on this diagram · 1 diagram in section
