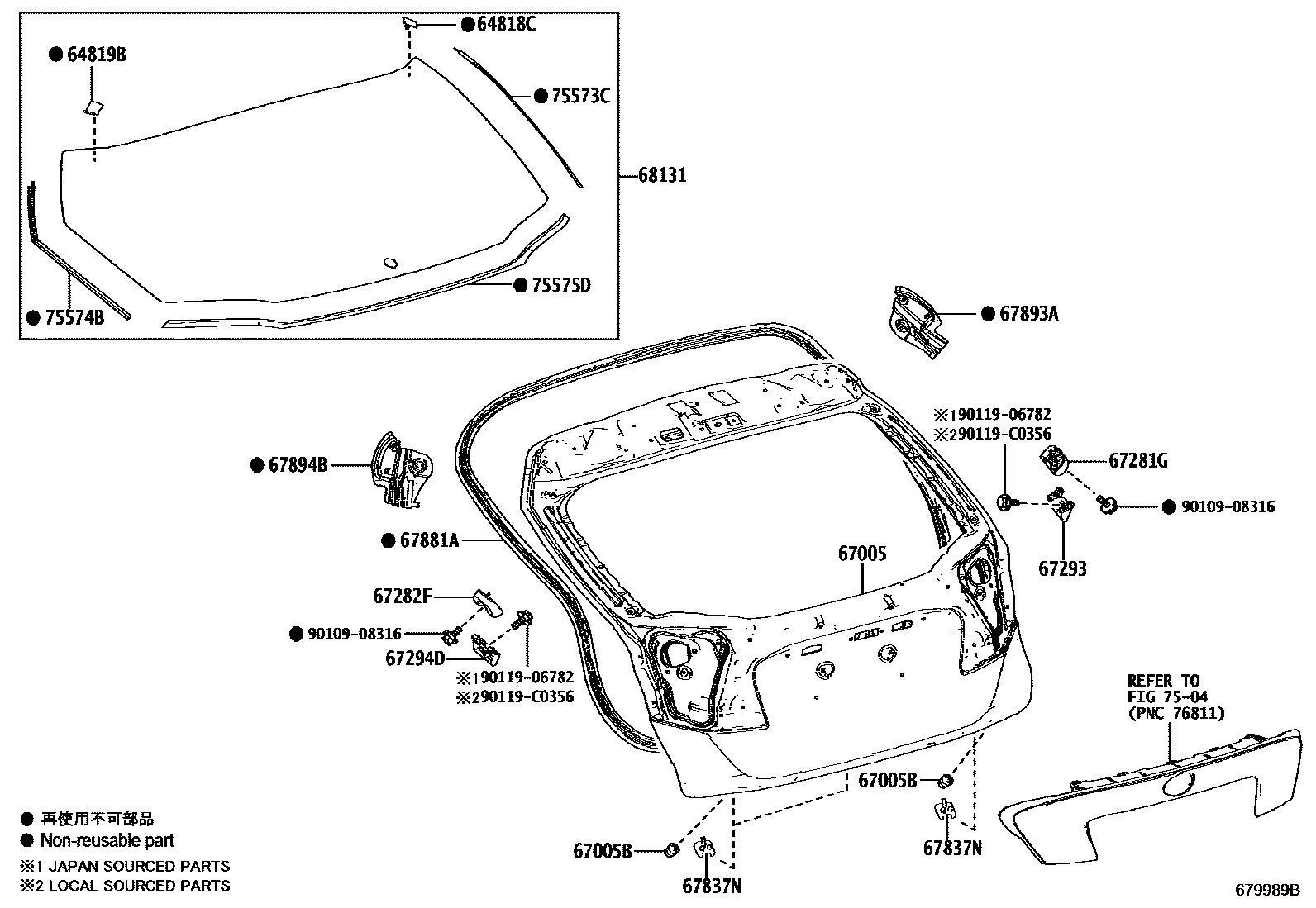

Toyota IZOA — BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-F4030iMAXA10,MAXH10201807-202105

MARK=FUYAO(E006888)

main64818-F4050iMAXA10201807-202105

MARK=NSG(E000546)

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-F4030iMAXA10,MAXH10201807-202105

MARK=FUYAO(E006888)

main64819-F4050iMAXA10,MAXH10201807-202105

MARK=NSG(E000546)

67005PANEL SUB-ASSY, BACK DOOR

main67005-F4080iMAXA10..D201807-202105

main67005-F4090iMAXA10..E,N201807-202105

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iMAXA10,MAXH10¥100201807-202105

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-F4020iMAXA10201807-202105

67282FSTOPPER, BACK DOOR, LWR LH

main67281-F4020iMAXA10201807-202105

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-F4020iMAXA10201807-201902

main67293-F4021iMAXA10201903-202103

sub67293-F4022

main67293-F4022iMAXA10202104-202105

67294DCUSHION, BACK DOOR STOPPER, LH

main67294-F4020iMAXA10201807-201902

main67294-F4021iMAXA10201903-202103

sub67294-F4022

main67294-F4022iMAXA10202104-202105

67837NSEAL, BACK DOOR DUST PROOF

main67837-F4080iMAXA10201807-202105

67881AWEATHERSTRIP, BACK DOOR

main67881-F4030iMAXA10201807-202105

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-F4020iMAXA10201807-202105

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-F4020iMAXA10201807-202105

68131GLASS, BACK DOOR

main68105-F4160iMAXA10201807-202005

MARK=FUYAO(E006888)

main68105-F4180iMAXA10201807-202005

MARK=NSG(E000546)

main68105-F4320iMAXA10,MAXH10..E,G202105

MARK=FUYAO(E006888)

main68105-F4330iMAXA10,MAXH10..E,G202105

MARK=NSG(E000546)

main68105-F4340iMAXA10,MAXH10..D,N202005-202105

MARK=FUYAO(E006888)

main68105-F4350iMAXA10,MAXH10..D,N202005-202105

MARK=NSG(E000546)

7504

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-F4030iMAXA10201807-202105

MARK=FUYAO(E006888)

main75573-F4050iMAXA10201807-202105

MARK=NSG(E000546)

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-F4030iMAXA10201807-202105

MARK=FUYAO(E006888)

main75574-F4050iMAXA10,MAXH10201807-202105

MARK=NSG(E000546)

75575DMOULDING, BACK WINDOW, LOWER

main75575-F4030iMAXA10,MAXH10..D,N201807-202105

MARK=FUYAO(E006888)

main75575-F4050iMAXA10,MAXH10..D,N201807-202105

MARK=NSG(E000546)

main75575-F4070iMAXA10,MAXH10..E,G202105

MARK=FUYAO(E006888)

main75575-F4080iMAXA10,MAXH10..E,G202105

MARK=NSG(E000546)

9010908316

main90109-08316¥80

9011906782

main90119-06782¥60

90119C0356

main90119-C0356

20 parts on this diagram · 2 diagrams in section
