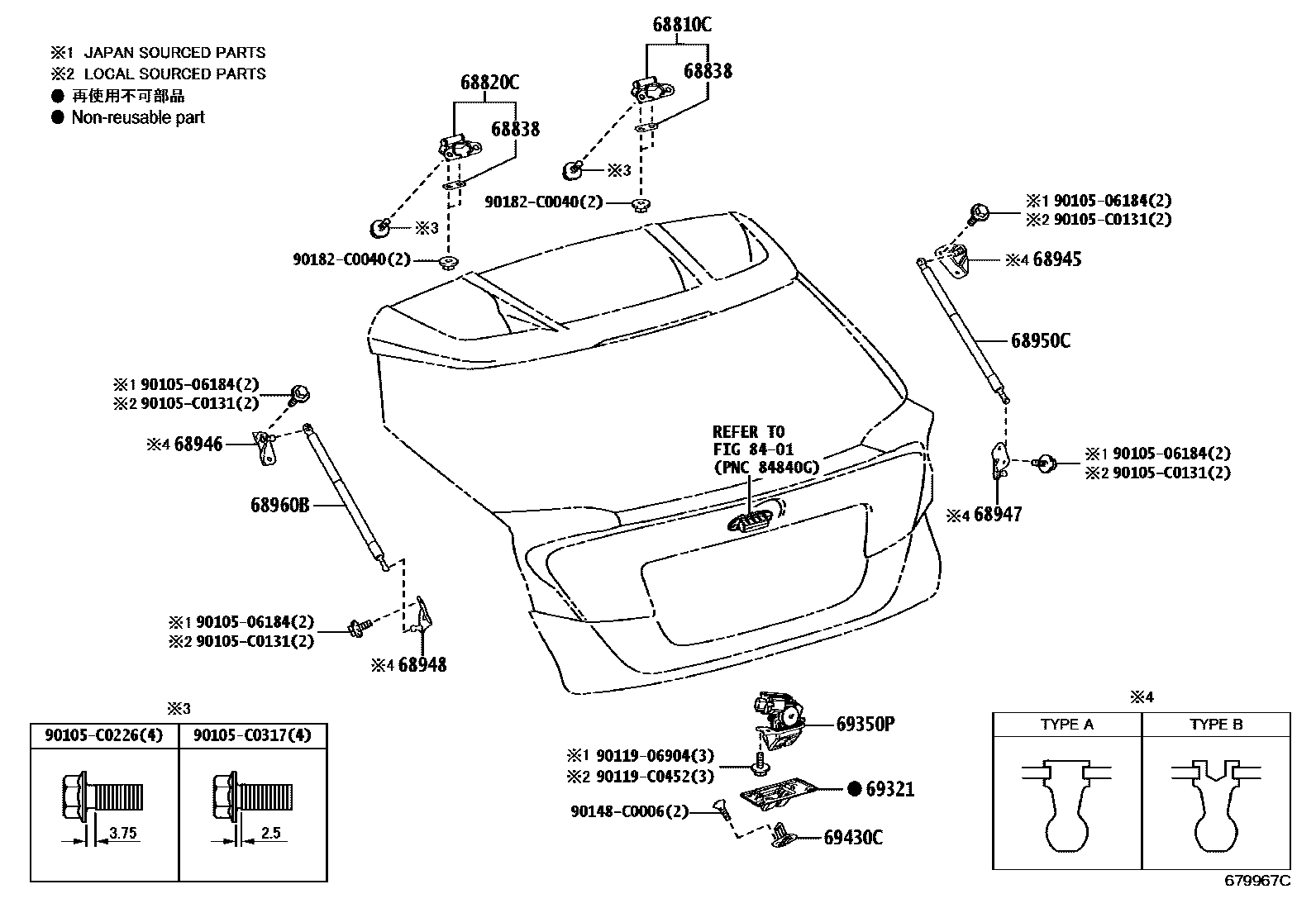

Toyota IZOA — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-F4070iMAXA10,MAXH10201807-202105

68820CHINGE ASSY, BACK DOOR, LH

main68810-F4070iMAXA10201807-202105

68838PAD, BACK DOOR HINGE, NO.1

main68838-F4070iMAXA10,MAXH10201807-202105

T=1.0,PAD T=1.0

main68838-F4080iMAXA10201807-202105

T=1.5,PAD T=1.5

main68838-F4090iMAXA10,MAXH10201807-202105

T=2.0,PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-10010iMAXA10¥410201807-202105

TYPE A:REFER ILLUST.

main68945-F4030iMAXA10201807-202105

TYPE B:REFER ILLUST.

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-10010iMAXA10¥410201807-202105

TYPE A:REFER ILLUST.

main68945-F4030iMAXA10,MAXH10201807-202105

TYPE B:REFER ILLUST.

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-10011iMAXA10,MAXH10¥410201807-202105

TYPE A:REFER ILLUST.

main68947-F4030iMAXA10201807-202105

TYPE B:REFER ILLUST.

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-10011iMAXA10,MAXH10¥410201807-202105

TYPE A:REFER ILLUST.

main68948-F4030iMAXA10,MAXH10201807-202105

TYPE B:REFER ILLUST.

68950CSTAY ASSY, BACK DOOR, RH

main68950-F4090iMAXA10..D,N201807-202105

main68950-F4100iMAXA10..E201807-202105

68960BSTAY ASSY, BACK DOOR, LH

main68960-F4090iMAXA10..D,N201807-202105

main68960-F4100iMAXA10..E201807-202105

69321COVER, BACK DOOR LOCK

main69321-F4020iMAXA10201807-202105

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-F4030iMAXA10201807-201912

main69350-F4031iMAXA10202001-202105

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-F4030iMAXA10201807-202105

8401

9010506184

main90105-06184¥70

90105C0131

main90105-C0131

90105C0226

main90105-C0226

90105C0317

main90105-C0317

9011906904

main90119-06904¥80

90119C0452

main90119-C0452

90148C0006

main90148-C0006

90182C0040

main90182-C0040

21 parts on this diagram · 1 diagram in section
