Toyota IQ — PARTIAL ENGINE ASSEMBLY

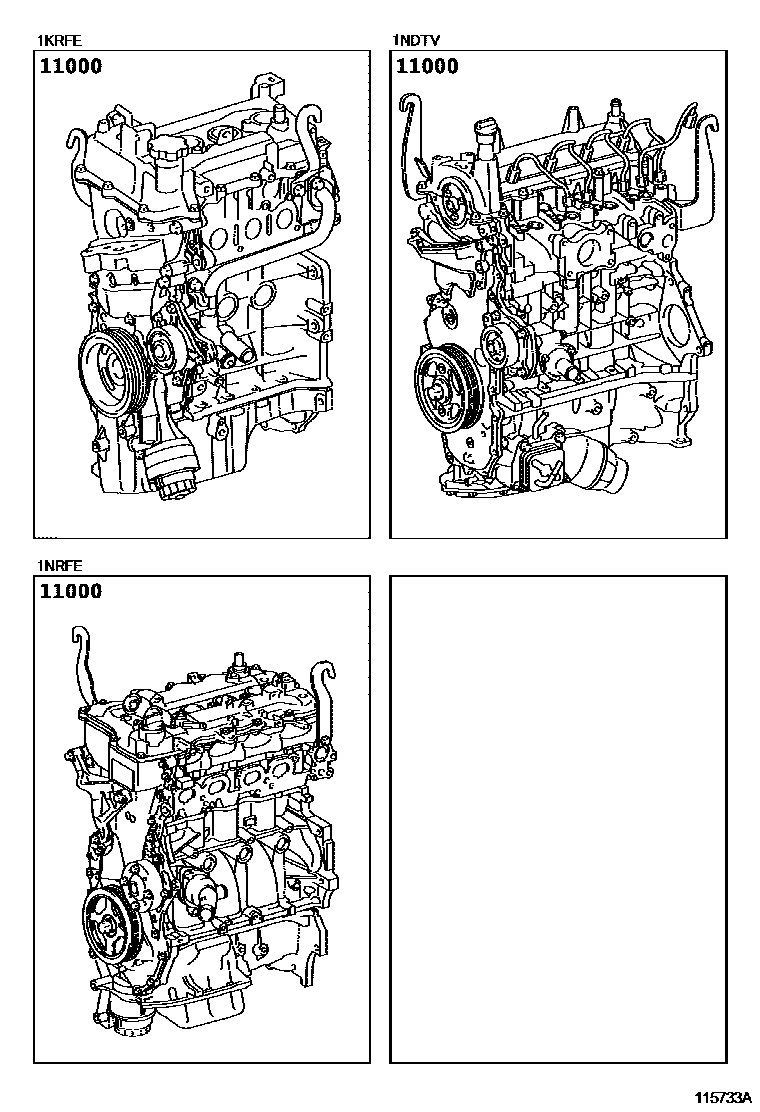

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-33310i200811-200911
main19000-33311i200911-201009
sub19000-33312
sub16206-33031
sub90301-20016
main19000-33340i201009-201012
sub16620-33031
main19000-33341i201012-201205
main19000-40220i200811-201311
main19000-40221i201311-201312
main19000-40222i201312-201405
sub19000-40223
main19000-40240i200811-201311
main19000-40241i201311-201312
main19000-40242i201312-201405
sub19000-40243
main19000-47100i200905-201002
sub94188-00841
main19000-47101i201002-201301
main19000-47102i201301-201405
main19000-47110i200905-201002
sub94188-00841
main19000-47111i201002-201205
sub19000-47112

1 parts on this diagram · 1 diagram in section
