Toyota INNOVA — WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 2/2 0009 1ENGINE ROOM 1/2 0010 1ENGINE ROOM 2/2 0011 1ENGINE ROOM 1/2 0012 1ENGINE ROOM 2/2 0013 1ENGINE 1/3 0014 1ENGINE 2/3 0015 1ENGINE 3/3 0016 1ENGINE 1/3 0017 1ENGINE 2/3 0018 1ENGINE 3/3 0019 1ENGINE 1/3 0020 1ENGINE 2/3 0021 1ENGINE 3/3 0022 1ENGINE 1/3 0023 1ENGINE 2/3 0024 1ENGINE 3/3 0025 1INSTRUMENT PANEL 0026 1INSTRUMENT PANEL 0027 1DOOR 0028 1FLOOR & ROOF 0029 1HIGH VOLTAGE CABLE 0030 1HIGH VOLTAGE CABLE 0031 1SEAT 0032 1CLAMP & BRACKET 1/2 0033 1CLAMP & BRACKET 2/2 0034 1CONNECTOR 1/2 0035 1CONNECTOR 2/2

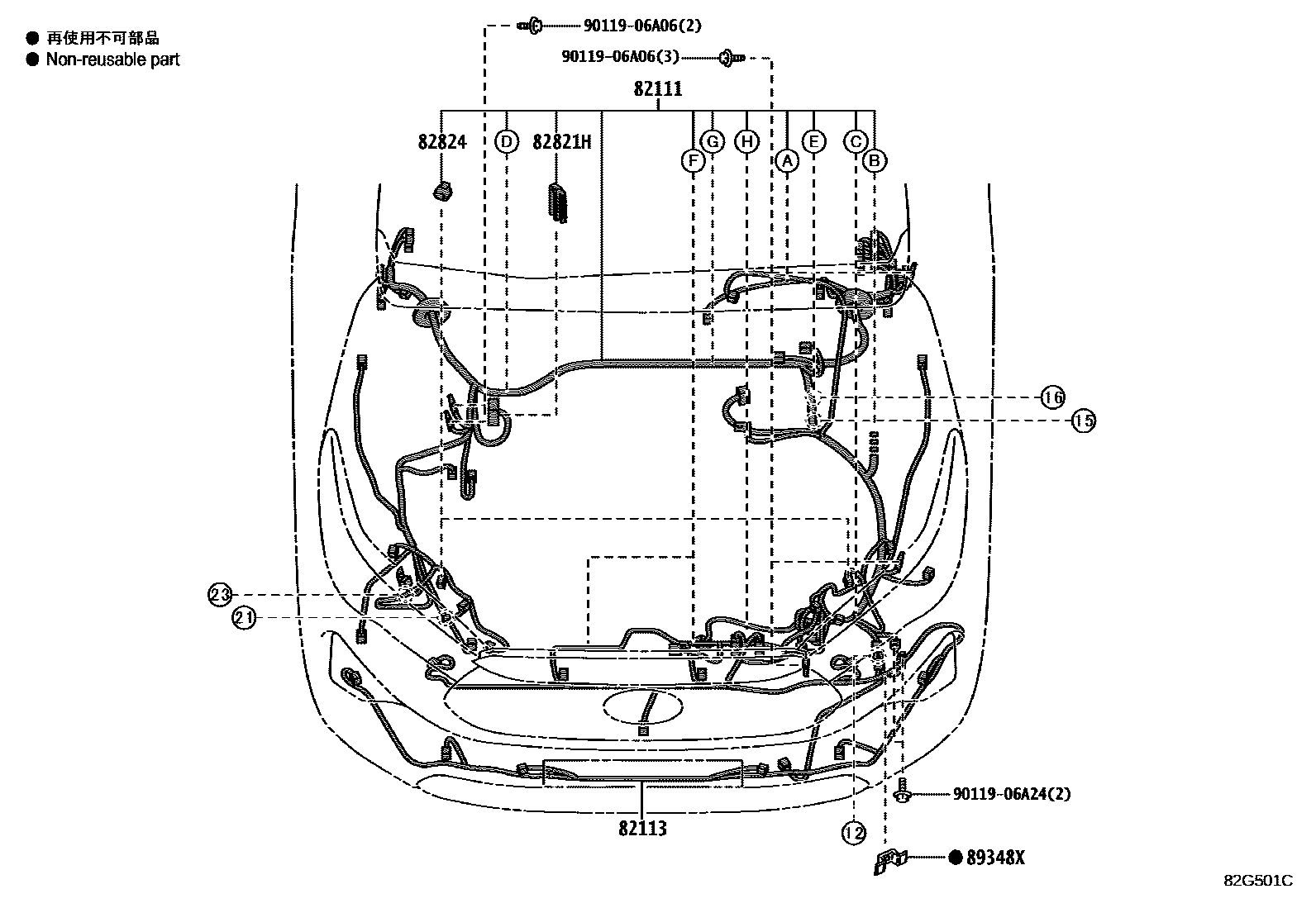

82111WIRE, ENGINE ROOM MAIN

main82111-VT020iMAGA10..IND202212

main82111-VT040iMAGH10..L..IND202212-202503

main82111-VT060iMAGH10..M..IND202212-202503

main82111-VT080iMAGH10..H..IND202212-202503

main82111-VT100iMAGA10..L..(PH,VN)202211

main82111-VT110iMAGA10..GCC202211

main82111-VT130iMAGH10..L..GCC202211

main82111-VT150iMAGA10..L..IDN202211

main82111-VT170iMAGH10..L..IDN202211

main82111-VT190iMAGA10..M..PH202211

main82111-VT200iMAGA10..M..VN202211

main82111-VT230iMAGA10..M..IDN202211-202311

main82111-VT231iMAGA10..M..IDN202311

main82111-VT260iMAGH10..H..GCC202211

main82111-VT280iMAGH10..H..IDN202211

main82111-VT290iMAGA10..MA202211

main82111-VT300iMAGH10..TH202211

main82111-VT310iMAGH10..MA202211

main82111-VT390iMAGH10..M..IDN202211

main82111-VT420iMAGH10..PH,VN202211

82113WIRE, ENGINE ROOM, NO.3

main82113-VT020iMAGH10..M..IND202212

main82113-VT030iMAGH10..H..IND202212

main82113-VT100iMAGA10,MAGH10..H..(IDN,MA)202211

main82113-VT110iMAGH10..H..(GCC,PH,TH,VN)202211

main82113-VT130iMAGA10..PH,VN202211

82821HCOVER, CONNECTOR

main82821-48270iMAGA10,MAGH10¥570202211

82824CONNECTOR, WIRING HARNESS

main82824-V5010iMAGA10,MAGH10..L..GCC202211

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iMAGH10..H;MAGH10..M..IND;MAGA10..MA,PH,VN¥260202211

AFRICA SPEC

main89348-50050iMAGH10..H;MAGH10..M..IND;MAGA10..MA,PH,VN¥260202211

OCEANIA SOEC

9011906A06

main90119-06A06¥60

9011906A24

main90119-06A24¥60

7 parts on this diagram · 35 diagrams in section
