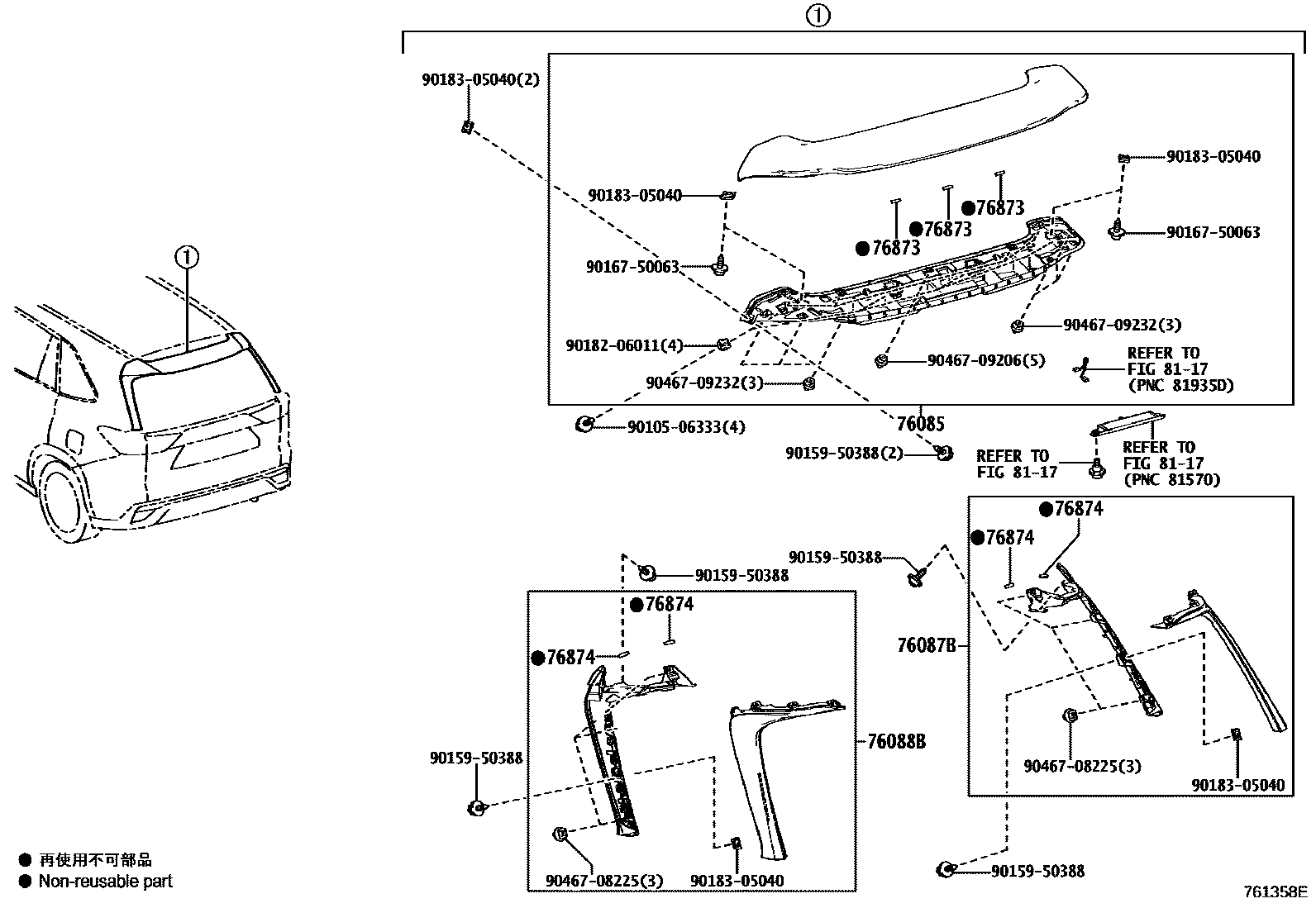

Toyota INNOVA — SPOILER & SIDE MUDGUARD

76085SPOILER SUB-ASSY, REAR

main76085-VT900iMAGA10,MAGH10..IND202212

PAINT REQ.

main76085-VT901iMAGA10,MAGH10..IDNP202211

PAINT REQ.

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-VT010iMAGH10..(H,M)..IND202212

main76087-VT020iMAGA10,MAGH10..IDNP..(H,M)202211

main76087-VT030iMAGA10,MAGH10..L..IND202212

main76087-VT040iMAGA10,MAGH10..IDNP..L202211

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-VT010iMAGH10..(H,M)..IND202212

main76088-VT020iMAGA10,MAGH10..IDNP..(H,M)202211

main76088-VT030iMAGA10,MAGH10..L..IND202212

main76088-VT040iMAGA10,MAGH10..IDNP..L202211

76873PROTECTOR, REAR SPOILER, NO.2

main76873-VT010iMAGA10,MAGH10..IND202212

main76873-VT020iMAGA10,MAGH10..IDNP202211

76874PROTECTOR, REAR SPOILER, NO.3

main87268-VT020iMAGA10,MAGH10..IND202212

main87268-VT110iMAGA10,MAGH10..IDNP202211

8117

9010506333

main90105-06333¥60

9015950388

main90159-50388¥50

9016750063

main90167-50063¥60

9018206011

main90182-06011¥100

9018305040

main90183-05040¥80

9046708225

main90467-08225¥60

9046709206

main90467-09206¥80

9046709232

main90467-09232¥70

14 parts on this diagram · 1 diagram in section
