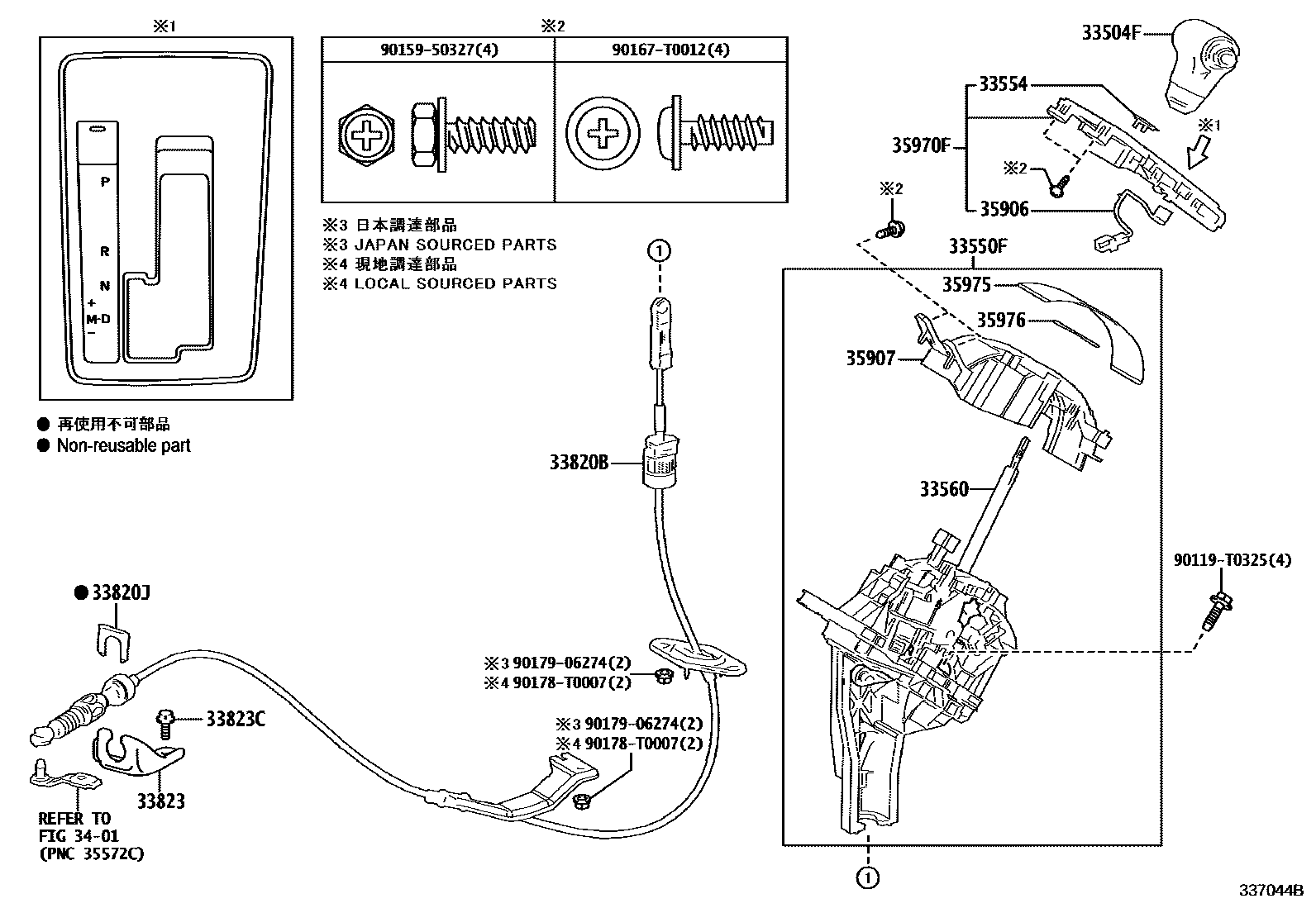

Toyota INNOVA — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-VT010-C0iMAGA10,MAGH10..LHD..L202211

BLACK,TRIM2#,4#

main33504-VT020-C0iMAGA10..LHD..M;MAGH10..H..(GCC,PH)202211

BLACK,TRIM2#,4#

main33504-VT020-C0iMAGH10..VN202211

BLACK,TRIM4#

main33504-VT030-C0iMAGA10,MAGH10..RHD..L202211

BLACK,TRIM2#,4#

main33504-VT040-C0iMAGA10,MAGH10..(H,M)..(IDN,TH)202211

BLACK,TRIM2#,4#

main33504-VT040-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main33504-VT040-C0iMAGH10..(H,M)..IND202212

BLACK,TRIM4#

33550FSHIFT ASSY, TRANSMISSION INSTRUMENT PANEL

main33550-VT010iMAGA10..RHD..IDNP202211

main33550-VT020iMAGA10..LHD202211

main33550-VT030iMAGH10..RHD..IDNP202211

main33550-VT040iMAGH10..LHD202211

main33550-VT050iMAGA10..IND202212

main33550-VT060iMAGH10..IND202212

33554CAP, SHIFT LEVER

main33554-VT010iMAGA10,MAGH10..(H,M)..(IDN,TH)202211

INDONESIA PACKAGE

main33554-VT020iMAGA10..08S..M..IDN202211

BRUNEI SPEC

main33554-VT020iMAGA10,MAGH10..MA202211

AFRICA SPEC

main33554-VT020iMAGA10,MAGH10..MA202211

OCEANIA SOEC

main33554-VT020iMAGA10,MAGH10..MA202211

ASIA GENERAL EXPORT SPEC

main33554-VT030iMAGA10,MAGH10..L..IDN202211

main33554-VT050iMAGA10,MAGH10..L..IND202212

main33554-VT060iMAGH10..(H,M)..IND202212

main33554-VT070iMAGA10,MAGH10..LHD202211

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-VT010iMAGA10..RHD..IDNP202211

main33560-VT020iMAGA10..LHD202211

main33560-VT030iMAGH10..RHD..IDNP202211

main33560-VT040iMAGH10..LHD202211

main33560-VT050iMAGA10..IND202212

main33560-VT060iMAGH10..IND202212

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-VT010iMAGA10..IND202212

main33820-VT020iMAGH10..IND202212

main33820-VT030iMAGA10..RHD..IDNP202211

main33820-VT040iMAGA10..LHD202211

main33820-VT050iMAGH10..RHD..IDNP202211

main33820-VT060iMAGH10..LHD202211

33820JCLIP(FOR TRANSMISSION CONTROL CABLE)

main90468-T0007iMAGA10,MAGH10202211

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-VT010iMAGA10..IDNP202211

main33823-VT020iMAGH10..IDNP202211

main33823-VT030iMAGA10..IND202212

main33823-VT040iMAGH10..IND202212

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-T0342iMAGA10,MAGH10..IDNP202211-202409

main90119-T0342iMAGA10,MAGH10..IND202409

(L)

main91671-80820iMAGA10,MAGH10..IND¥80202409

(J)

3401

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-VT010iMAGA10,MAGH10..RHD..IDNP202211

main35906-VT020iMAGA10,MAGH10..LHD202211

main35906-VT030iMAGA10,MAGH10..IND202212

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-VT010iMAGA10,MAGH10..RHD..IDNP202211

main35907-VT020iMAGA10,MAGH10..LHD202211

main35907-VT030iMAGA10,MAGH10..IND202212

35970FHOUSING ASSY, POSITION INDICATOR

main35970-VT010iMAGA10..M..IDN202211

INDONESIA PACKAGE

main35970-VT020iMAGH10..(H,M)..(IDN,TH)202211

INDONESIA PACKAGE

main35970-VT030iMAGA10..08S..M..IDN202211

BRUNEI SPEC

main35970-VT030iMAGA10..MA202211

AFRICA SPEC

main35970-VT030iMAGA10..MA202211

OCEANIA SOEC

main35970-VT030iMAGA10..MA202211

ASIA GENERAL EXPORT SPEC

main35970-VT040iMAGH10..MA202211

ASIA GENERAL EXPORT SPEC

main35970-VT040iMAGH10..MA202211

BRUNEI SPEC

main35970-VT050iMAGA10..LHD202211

main35970-VT060iMAGH10..LHD202211

main35970-VT070iMAGA10..L..IDN202211

main35970-VT080iMAGH10..L..IDN202211

main35970-VT110iMAGA10..IND202212

main35970-VT120iMAGH10..L..IND202212

main35970-VT130iMAGH10..(H,M)..IND202212

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-VT010iMAGA10,MAGH10..IDNP202211

main35975-VT020iMAGA10,MAGH10..IND202212

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-VT010iMAGA10,MAGH10..IDNP202211

main35976-VT020iMAGA10,MAGH10..IND202212

90119T0325

main90119-T0325¥80

9015950327

main90159-50327¥70

90167T0012

main90167-T0012

90178T0007

main90178-T0007¥80

9017906274

main90179-06274¥70

19 parts on this diagram · 4 diagrams in section
