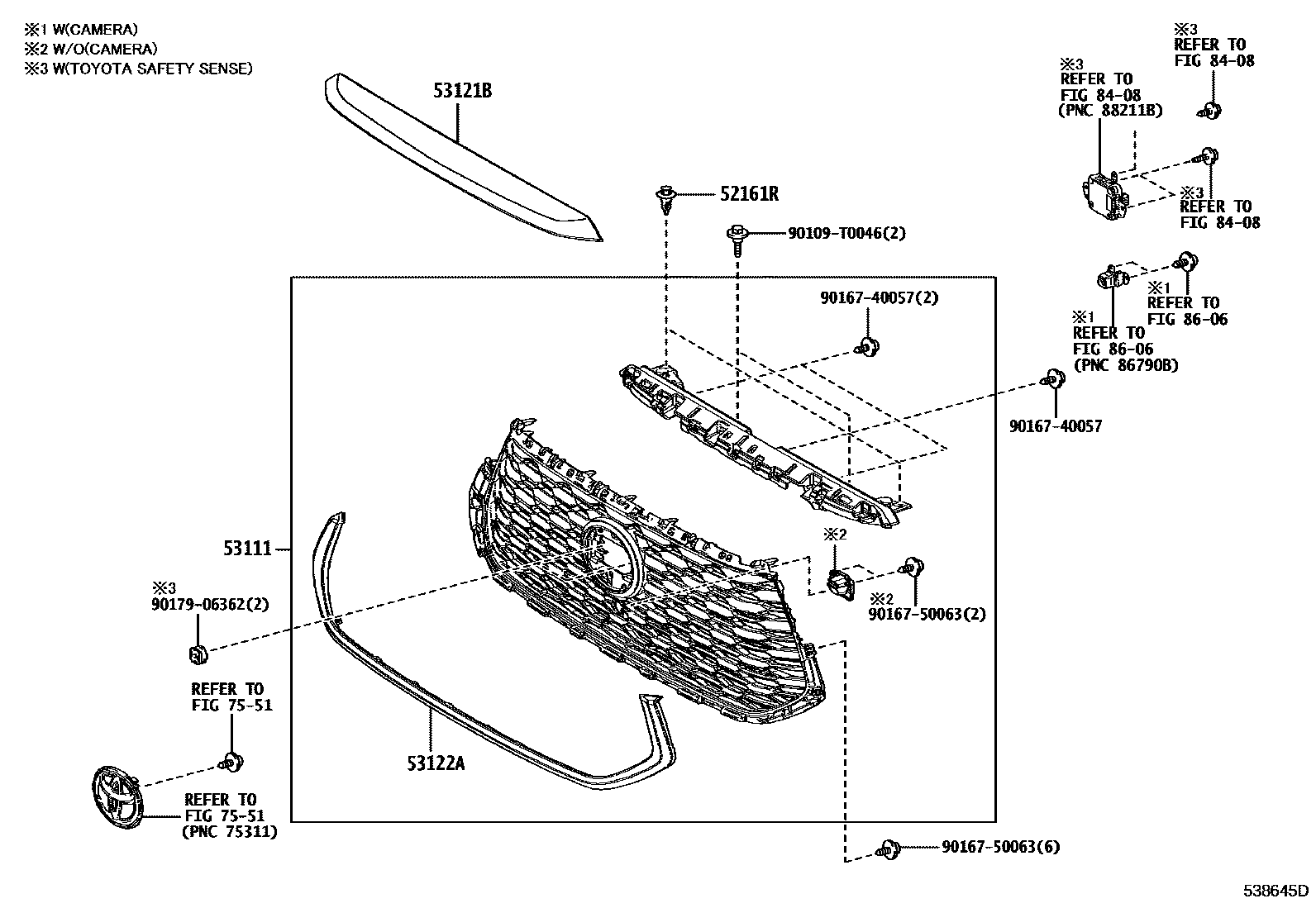

Toyota INNOVA — RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-0K040iMAGA10,MAGH10¥120202211

53111GRILLE, RADIATOR

main53100-VT010iMAGH10..H..IND202212

PLATED

main53100-VT080iMAGA10,MAGH10..L..IND202212

NO PAINT REQ.

main53100-VT100iMAGH10..M..IND202212

PLATED

main53100-VT900iMAGA10,MAGH10..L..IDN202211

PLATED,INDONESIA PACKAGE

main53100-VT900iMAGA10,MAGH10..L..IDN202211

PLATED

main53100-VT901iMAGA10,MAGH10..IDNP..H202211

PLATED

main53111-VT060iMAGA10,MAGH10..IDNP..L202211

NO PAINT REQ.

53121BMOULDING, RADIATOR GRILLE, UPPER

main53121-VT900iMAGA10,MAGH10..IND202212

main53121-VT901iMAGA10,MAGH10..IDNP202211

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-VT010iMAGH10..(H,M)..IND202212

main53122-VT020iMAGA10,MAGH10..L..IND202212

main53122-VT050iMAGA10,MAGH10..IDNP..(H,M)202211

INDONESIA PACKAGE

main53122-VT060iMAGA10,MAGH10..IDNP..L202211

7551

8408

8606

90109T0046

main90109-T0046

9016740057

main90167-40057¥60

9016750063

main90167-50063¥60

9017906362

main90179-06362¥60

11 parts on this diagram · 2 diagrams in section
