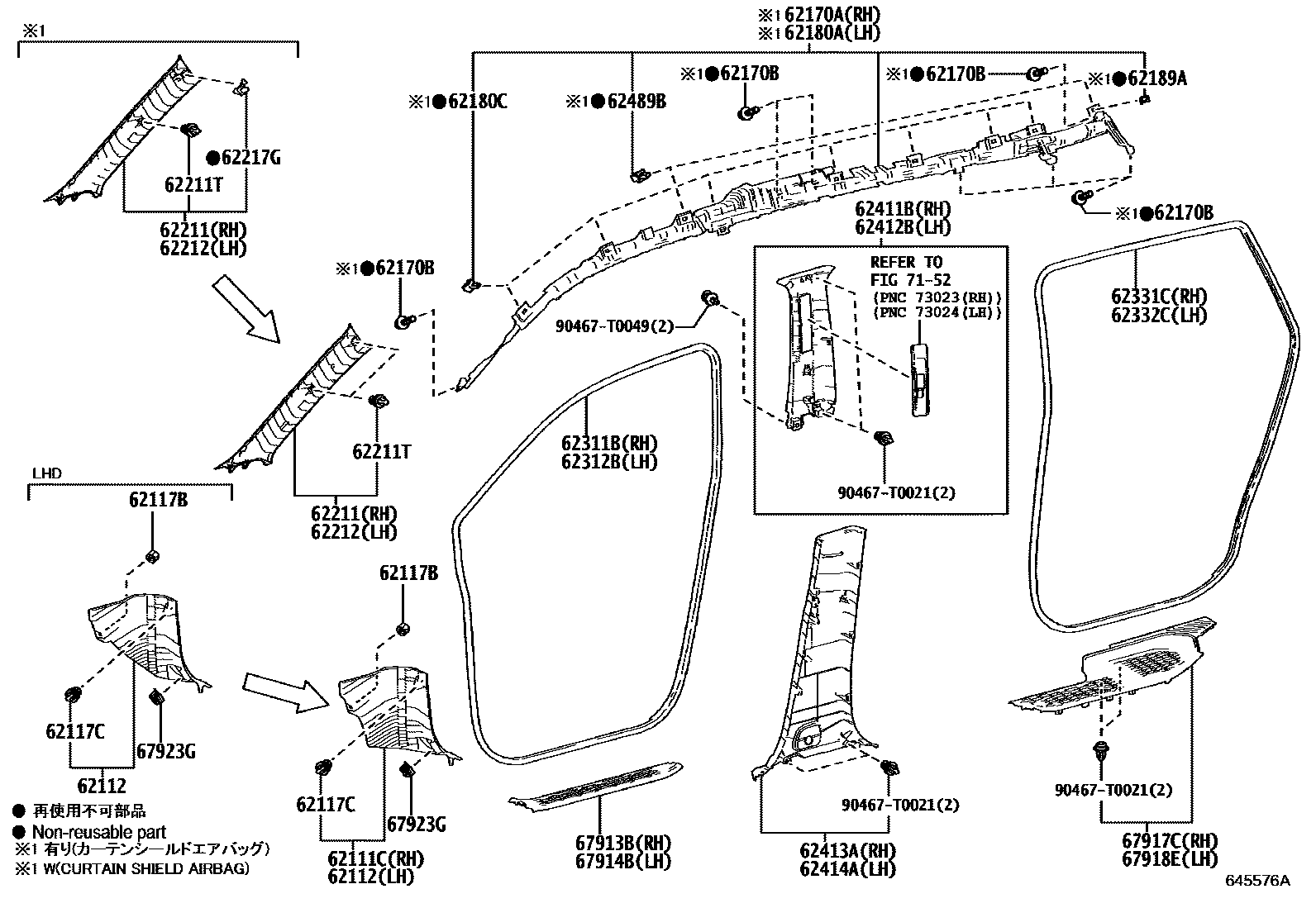

Toyota INNOVA — INSIDE TRIM BOARD

0001 1FRONT SIDE 0002 1DECK SIDE(RH) 0003 1DECK SIDE(LH) 0004 1FRONT SIDE 0005 1DECK SIDE(RH) 0006 1DECK SIDE(LH)

62111CBOARD, COWL SIDE TRIM, RH

main62111-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main62111-VT010-C0iMAGH10..VN202211

BLACK,TRIM2#

main62111-VT010-C0iMAGH10..VN202211

BLACK,TRIM4#

main62111-VT030-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main62111-VT030-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-VT010-C0iMAGH10..VN202211

BLACK,TRIM4#

main62112-VT010-C0iMAGH10..VN202211

BLACK,TRIM2#,4#

main62112-VT020-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main62112-VT020-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main62112-VT030-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main62112-VT030-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iMAGA10,MAGH10¥80202211

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-T0021iMAGA10,MAGH10202211

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-VT010iMAGH10..IDNP..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S202211

UAE SPEC

main62170-VT010iMAGH10..IDNP..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main62170-VT010iMAGH10..IDNP..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62170-VT020iMAGH10..H..IND202212

main62170-VT020iMAGA10,MAGH10..(L,M)..IND202308

62170BBOLT, W/WASHER

main91673-80616iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥60202211

UAE SPEC

main91673-80616iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥60202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main91673-80616iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥60202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main91673-80616iMAGA10,MAGH10..(L,M)..IND¥60202308

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-VT010iMAGH10..IDNP..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S202211

UAE SPEC

main62180-VT010iMAGH10..IDNP..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main62180-VT010iMAGH10..IDNP..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62180-VT020iMAGH10..H..IND202212

main62180-VT020iMAGA10,MAGH10..(L,M)..IND202308

62180CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017iMAGH10..H..GCC¥180202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main90467-18017iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥180202211

UAE SPEC

main90467-18017iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥180202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main90467-18017iMAGA10,MAGH10..(L,M)..IND¥180202308

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥80202211

UAE SPEC

main62189-42010iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥80202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main62189-42010iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥80202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62189-42010iMAGA10,MAGH10..(L,M)..IND¥80202308

62211GARNISH, FRONT PILLAR, RH

main62211-VT010-B0iMAGA10..M..PH;MAGA10,MAGH10..08S..(L,M)..(GCC,IDN,PH)202211

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM2#,4#

main62211-VT010-B0iMAGH10..H..GCC202211

LT.GRAY,TRIM2#,4#

main62211-VT020-B0iMAGA10,MAGH10..MA202211

LT.GRAY,TRIM2#,4#

main62211-VT020-B0iMAGA10..VN;MAGA10..07S..IDN;MAGH10..H..(GCC,IDN,PH,TH)202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#,4#

main62211-VT020-B0iMAGH10..L..GCC202211

LT.GRAY,TRIM2#

main62211-VT020-B0iMAGH10..L..GCC202211

LT.GRAY,TRIM4#

main62211-VT020-B0iMAGH10..L..GCC202211

UAE SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#,4#

main62211-VT030-B0iMAGA10,MAGH10..L..IND202212-202308

LT.GRAY,TRIM4#

main62211-VT030-B0iMAGH10..M..IND202212-202308

LT.GRAY,TRIM2#,4#

main62211-VT040-B0iMAGA10,MAGH10..L..IND202308-202503

LT.GRAY,TRIM2#,4#

main62211-VT040-B0iMAGH10..M..IND202308

LT.GRAY,TRIM4#

main62211-VT050-B0iMAGH10..H..IND202212

LT.GRAY,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-T0021iMAGA10..M..PH;MAGA10,MAGH10..08S..(IDN,PH)202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main90467-T0021iMAGA10,MAGH10..(L,M)..IND202211-202308

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main90467-T0021iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S202211

UAE SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main90467-T0021iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main90467-T0021iMAGA10,MAGH10..(L,M)..IND202308

62212GARNISH, FRONT PILLAR, LH

main62212-VT010-B0iMAGA10..M..PH;MAGA10,MAGH10..08S..(L,M)..(GCC,IDN,PH)202211

LT.GRAY,TRIM2#,4#

main62212-VT010-B0iMAGH10..H..GCC202211

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM2#,4#

main62212-VT020-B0iMAGA10..VN;MAGA10..07S..IDN;MAGH10..H..(GCC,IDN,PH,TH)202211

LT.GRAY,TRIM4#

main62212-VT020-B0iMAGA10,MAGH10..MA202211

LT.GRAY,TRIM2#,4#

main62212-VT020-B0iMAGA10,MAGH10..MA202211

UAE SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#,4#

main62212-VT020-B0iMAGA10,MAGH10..MA202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#,4#

main62212-VT020-B0iMAGH10..VN202211

LT.GRAY,TRIM2#

main62212-VT030-B0iMAGH10..M..IND202212-202308

LT.GRAY,TRIM4#

main62212-VT030-B0iMAGH10..M..IND202212-202308

LT.GRAY,TRIM2#,4#

main62212-VT040-B0iMAGH10..M..IND202308

LT.GRAY,TRIM4#

main62212-VT040-B0iMAGA10,MAGH10..L..IND202308-202503

LT.GRAY,TRIM2#,4#

main62212-VT050-B0iMAGH10..H..IND202212

LT.GRAY,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iMAGH10..L..GCC¥140202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62217-42050iMAGA10,MAGH10..(L,M)..IND¥140202308

main62217-42050iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥140202211

UAE SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-VT010iMAGA10,MAGH10..IDNP202211

main62311-VT020iMAGA10,MAGH10..IND202212

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-VT010iMAGA10,MAGH10..IDNP202211

main62312-VT020iMAGA10,MAGH10..IND202212

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-VT010iMAGA10,MAGH10..IDNP202211

main62331-VT020iMAGA10,MAGH10..IND202212

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-VT010iMAGA10,MAGH10..IDNP202211

main62332-VT020iMAGA10,MAGH10..IND202212

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-VT010-B1iMAGA10..M..PH;MAGA10,MAGH10..08S..(L,M)..(GCC,IDN,PH)202211

LT.GRAY,TRIM2#,4#

main62411-VT010-B1iMAGH10..H..GCC202211

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM2#,4#

main62411-VT020-B1iMAGA10..M..PH;MAGA10,MAGH10..08S..(IDN,PH)202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#,4#

main62411-VT020-B1iMAGH10..VN202211

LT.GRAY,TRIM2#

main62411-VT020-B1iMAGH10..VN202211

LT.GRAY,TRIM4#

main62411-VT020-B1iMAGH10..VN202211

LT.GRAY,TRIM2#,4#

main62411-VT020-B1iMAGH10..VN202211

UAE SPEC,LT.GRAY,TRIM2#,4#

main62411-VT030-B1iMAGH10..M..IND202212-202308

LT.GRAY,TRIM4#

main62411-VT030-B1iMAGA10,MAGH10..L..IND202212-202308

LT.GRAY,TRIM2#,4#

main62411-VT040-B1iMAGA10,MAGH10..L..IND202308

LT.GRAY,TRIM4#

main62411-VT040-B1iMAGH10..M..IND202308

LT.GRAY,TRIM2#,4#

main62411-VT040-B1iMAGH10..H..IND202212

LT.GRAY,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-VT010-B1iMAGH10..H..GCC202211

LT.GRAY,TRIM2#,4#

main62412-VT010-B1iMAGA10..M..PH;MAGA10,MAGH10..08S..(L,M)..(GCC,IDN,PH)202211

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM2#,4#

main62412-VT020-B1iMAGA10..VN;MAGA10..07S..IDN;MAGH10..H..(GCC,IDN,PH,TH)202211

UAE SPEC,LT.GRAY,TRIM2#,4#

main62412-VT020-B1iMAGA10,MAGH10..MA202211

LT.GRAY,TRIM2#

main62412-VT020-B1iMAGA10,MAGH10..MA202211

LT.GRAY,TRIM4#

main62412-VT020-B1iMAGA10,MAGH10..MA202211

LT.GRAY,TRIM2#,4#

main62412-VT020-B1iMAGA10,MAGH10..MA202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM2#,4#

main62412-VT030-B1iMAGA10,MAGH10..L..IND202212-202308

LT.GRAY,TRIM2#,4#

main62412-VT030-B1iMAGA10,MAGH10..L..IND202212-202308

LT.GRAY,TRIM4#

main62412-VT040-B1iMAGA10,MAGH10..L..IND202308

LT.GRAY,TRIM2#,4#

main62412-VT040-B1iMAGA10,MAGH10..L..IND202308

LT.GRAY,TRIM4#

main62412-VT040-B1iMAGH10..H..IND202212

LT.GRAY,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211-202302

BLACK,TRIM4#

sub62413-VT011

main62413-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211-202302

BLACK,TRIM2#,4#

sub62413-VT011

main62413-VT010-C0iMAGA10,MAGH10..MA202211-202302

BLACK,TRIM2#

sub62413-VT011

main62413-VT011-C0iMAGH10..VN202303

BLACK,TRIM2#,4#

main62413-VT011-C0iMAGA10,MAGH10..MA202303

BLACK,TRIM2#

main62413-VT011-C0iMAGA10,MAGH10..MA202303

BLACK,TRIM4#

main62413-VT020-C0iMAGA10,MAGH10..L..IND202212-202503

BLACK,TRIM4#

main62413-VT020-C0iMAGH10..(H,M)..IND202212-202503

BLACK,TRIM2#,4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-VT010-C0iMAGA10,MAGH10..MA202211-202302

BLACK,TRIM2#

sub62414-VT011

main62414-VT010-C0iMAGA10,MAGH10..MA202211-202302

BLACK,TRIM4#

sub62414-VT011

main62414-VT010-C0iMAGA10,MAGH10..MA202211-202302

BLACK,TRIM2#,4#

sub62414-VT011

main62414-VT011-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202303

BLACK,TRIM2#,4#

main62414-VT011-C0iMAGA10,MAGH10..MA202303

BLACK,TRIM2#

main62414-VT011-C0iMAGA10,MAGH10..MA202303

BLACK,TRIM4#

main62414-VT020-C0iMAGH10..(H,M)..IND202212-202503

BLACK,TRIM4#

main62414-VT020-C0iMAGH10..(H,M)..IND202212-202503

BLACK,TRIM2#,4#

62489BCLIP, ROOF SIDE INNER GARNISH

main62489-28010iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥360202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main62489-28010iMAGH10..H;MAGA10..08S..(MA,VN);MAGA10..RHD..IDNP..07S¥360202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62489-28010iMAGH10..L..GCC¥360202211

UAE SPEC

main62489-28010iMAGA10,MAGH10..(L,M)..IND¥360202308

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM2#

main67913-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM4#

main67913-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main67913-VT020-C0iMAGH10..(H,M)..IND202212

BLACK,TRIM4#

main67913-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM2#,4#

main67914-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#

main67914-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM4#

main67914-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main67914-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-VT010-C0iMAGH10..VN202211

BLACK,TRIM2#

main67917-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM4#

main67917-VT010-C0iMAGA10,MAGH10..MA202211

BLACK,TRIM2#,4#

main67917-VT020-C0iMAGA10,MAGH10..L..IND202212

BLACK,TRIM4#

main67917-VT020-C0iMAGH10..(H,M)..IND202212

BLACK,TRIM2#,4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-VT010-C0iMAGH10..VN202211

BLACK,TRIM4#

main67918-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM2#

main67918-VT010-C0iMAGA10..IDNP..(L,M);MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM2#,4#

main67918-VT020-C0iMAGH10..(H,M)..IND202212

BLACK,TRIM4#

main67918-VT020-C0iMAGH10..(H,M)..IND202212

BLACK,TRIM2#,4#

67923GCLAMP, COWL SIDE TRIM BOARD

main67923-VT020iMAGA10,MAGH10202211

7152

90467T0021

main90467-T0021

90467T0049

main90467-T0049

30 parts on this diagram · 6 diagrams in section
