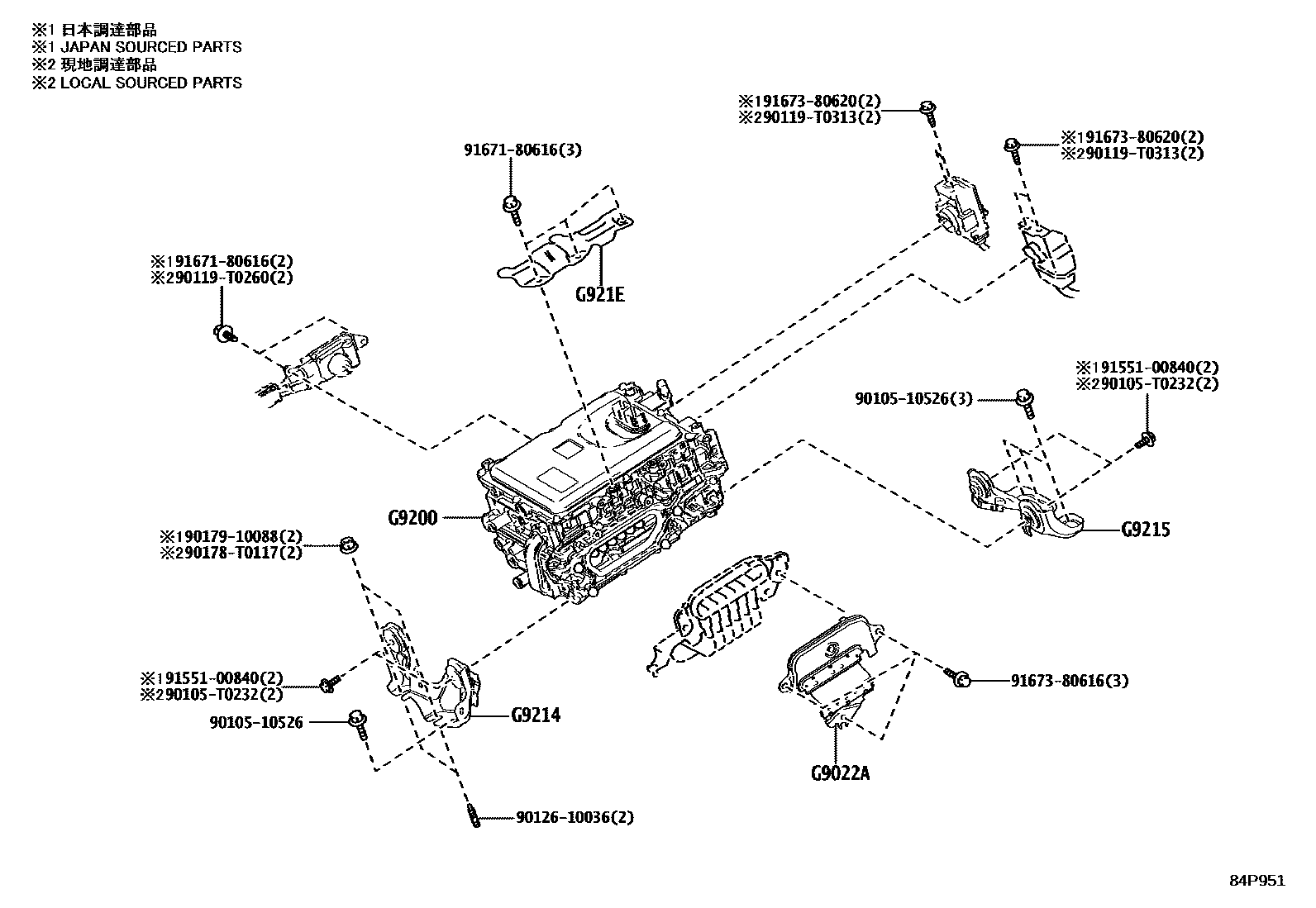

Toyota INNOVA — HEV INVERTER

0001 1 0002 1

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902228030iMAGH10202211

G9200INVERTER ASSY, W/CONVERTER

mainG92A047210iMAGH10202211

G9214BRACKET, INVERTER, NO.1

mainG9214F7010iMAGH10202211

IND SOURCED PARTS

mainG9214F7020iMAGH10202211

IDN SOURCED PARTS

G9215BRACKET, INVERTER, NO.2

mainG9215F7010iMAGH10202211

IND SOURCED PARTS

mainG9215F7020iMAGH10202211

IDN SOURCED PARTS

G921EPROTECTOR, INVERTER

mainG921EF7010iMAGH10..IND202212

mainG921EF7020iMAGH10..IDNP202211

9010510526

main90105-10526¥100

90105T0232

main90105-T0232

90119T0260

main90119-T0260

90119T0313

main90119-T0313

9012610036

main90126-10036¥100

90178T0117

main90178-T0117

9017910088

main90179-10088¥100

9155100840

main91551-00840¥80

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

16 parts on this diagram · 2 diagrams in section
