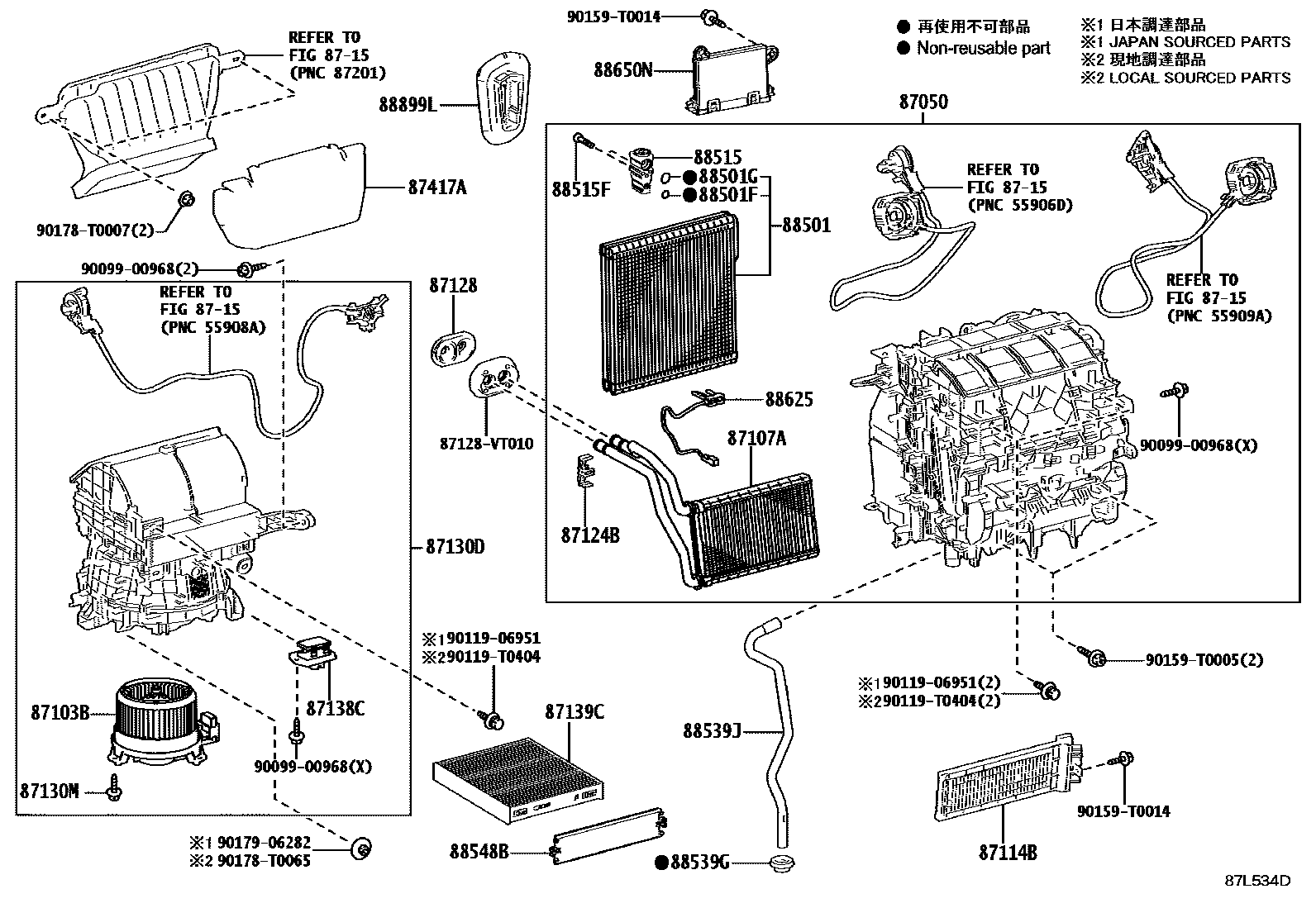

Toyota INNOVA — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT MANUAL AIR CONDITIONER 0002 1FRONT AUTO AIR CONDITIONER 0004 1FRONT COOLER 0005 1FRONT AIR CONDITIONER 0006 1REAR COOLER 0007 1REAR AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-VT110iMAGH10..L..IND202212

main87050-VT120iMAGH10..(H,M)..IND202212

main87050-VT130iMAGH10..L..IDN202211

main87050-VT140iMAGH10..RHD..IDNP..(H,M)202211

INDONESIA PACKAGE

main87050-VT150iMAGH10..PH,VN202211

main87050-VT160iMAGH10..GCC202211

main87050-VT170iMAGA10..IND202212

main87050-VT180iMAGA10..L..IDN202211

main87050-VT190iMAGA10..L..IDN202211

INDONESIA PACKAGE

main87050-VT200iMAGA10..PH,VN202211

main87050-VT210iMAGA10..GCC202211

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K411iMAGA10,MAGH10..L..IDN202211

main87103-0K431iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE

main87103-0K441iMAGA10,MAGH10..LHD202211

main87103-0K451iMAGA10,MAGH10..IND202212

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-VT010iMAGA10,MAGH10..IND202212

main87107-VT020iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE

main87107-VT030iMAGA10,MAGH10..LHD202211

87114BCOVER, HEATER

main87114-0K060iMAGA10,MAGH10..IDNP202211

main87114-0K080iMAGA10,MAGH10..IND202212

87124BCLAMP, HEATER

main87124-06140iMAGA10,MAGH10..H,M;MAGA10,MAGH10..L..(GCC,IND,PH,VN)¥390202211

INDONESIA PACKAGE

87128GROMMET, HEATER

main87128-0K140iMAGA10,MAGH10..L..IDN202211

main87128-0K150iMAGA10,MAGH10..LHD..L;MAGA10,MAGH10..IDNP..(H,M)202211

INDONESIA PACKAGE

main87128-0K160iMAGA10,MAGH10..IND202212

87130DBLOWER ASSY

main87130-VT010iMAGA10,MAGH10..L..IND202212

main87130-VT020iMAGH10..(H,M)..IND202212

main87130-VT030iMAGA10,MAGH10..L..IDN202211

main87130-VT040iMAGA10,MAGH10..RHD..IDNP..(H,M)202211

INDONESIA PACKAGE

main87130-VT050iMAGA10,MAGH10..LHD202211

87130MSCREW(FOR BLOWER)

main87193-87101iMAGA10,MAGH10¥0202211

87138CRESISTOR, BLOWER

main87138-0K360iMAGA10,MAGH10..RHD..L¥3,380202211

87139CFILTER, CLEAN AIR

main87139-06130iMAGH10..H..IND202212

MICRO DUST FILTER,OE PART

main87139-0K030iMAGA10,MAGH10..IDN,MA,PH,TH202211

POLLEN FILTER,OE PART

main87139-0K040iMAGA10,MAGH10..(H,L)..PH202211

POLLEN FILTER,OE PART

main87139-0K040iMAGA10,MAGH10..GCC,VN202211

POLLEN FILTER,AFRICA SPEC,OE PART

main87139-0K040iMAGA10,MAGH10..GCC,VN202211

POLLEN FILTER,OCEANIA SOEC,OE PART

main87139-0K040iMAGA10,MAGH10..GCC,VN202211

POLLEN FILTER,GUATEMALA SPEC,OE PART

main87139-0K040iMAGA10,MAGH10..GCC,VN202211

POLLEN FILTER,PANAMA SPEC,OE PART

main87139-0K050iMAGA10,MAGH10..(L,M)..IND202212

POLLEN FILTER,OE PART

main87139-58010iMAGA10,MAGH10¥4,000202211

DEODORANT FILTER

8715

87417APACKING, AIR DUCT

main87417-VT010iMAGA10,MAGH10..IND202212

main87417-VT020iMAGA10,MAGH10..IDNP202211

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-VT040iMAGH10..IND202212

main88501-VT050iMAGH10..IDNP202211

main88501-VT060iMAGA10..IND202212

main88501-VT070iMAGA10..IDNP202211

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMAGA10,MAGH10¥0202211

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iMAGA10,MAGH10202211

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0D620iMAGA10..IND202212

main88515-37030iMAGA10..IDN,MA,PH,VN¥4,800202211

main88515-48120iMAGA10,MAGH10..GCC¥6,300202211

main88515-52120iMAGH10..IDN,MA,PH,TH,VN202211

main88515-VT010iMAGH10..IND202212

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iMAGA10,MAGH10¥120202211

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main87128-VT030iMAGA10,MAGH10..IND202212

main88888-02020iMAGA10,MAGH10..IDNP202211

88539JHOSE, DRAIN COOLER

main88539-VT010iMAGA10,MAGH10..IND202212

main88539-VT020iMAGA10,MAGH10..RHD..IDNP202211

main88539-VT030iMAGA10,MAGH10..LHD202211

88548BCASE, AIR FILTER

main88548-0K091iMAGA10,MAGH10..IDNP202211

main88548-0K101iMAGA10,MAGH10..IND202212

88625THERMISTOR, COOLER, NO.1

main88620-0K010iMAGA10,MAGH10¥870202211

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-VT010iMAGH10..(H,M)..IND202212

main88650-VT020iMAGA10,MAGH10..L..IND202212

main88650-VT030iMAGA10,MAGH10..LHD..L;MAGA10,MAGH10..IDNP..(H,M)202211

INDONESIA PACKAGE

main88650-VT040iMAGA10,MAGH10..L..IDN202211

88899LPARTS, COOLING UNIT

main88899-VT030iMAGA10,MAGH10..IND202212

main88899-VT040iMAGA10,MAGH10..IDNP202211

87128VT010GROMMET, HEATER

main87128-VT010

9009900968

main90099-00968

9011906951

main90119-06951¥80

90119T0404

main90119-T0404

90159T0005

main90159-T0005¥90

90159T0014

main90159-T0014

90178T0007

main90178-T0007¥80

90178T0065

main90178-T0065

9017906282

main90179-06282¥90

32 parts on this diagram · 6 diagrams in section
