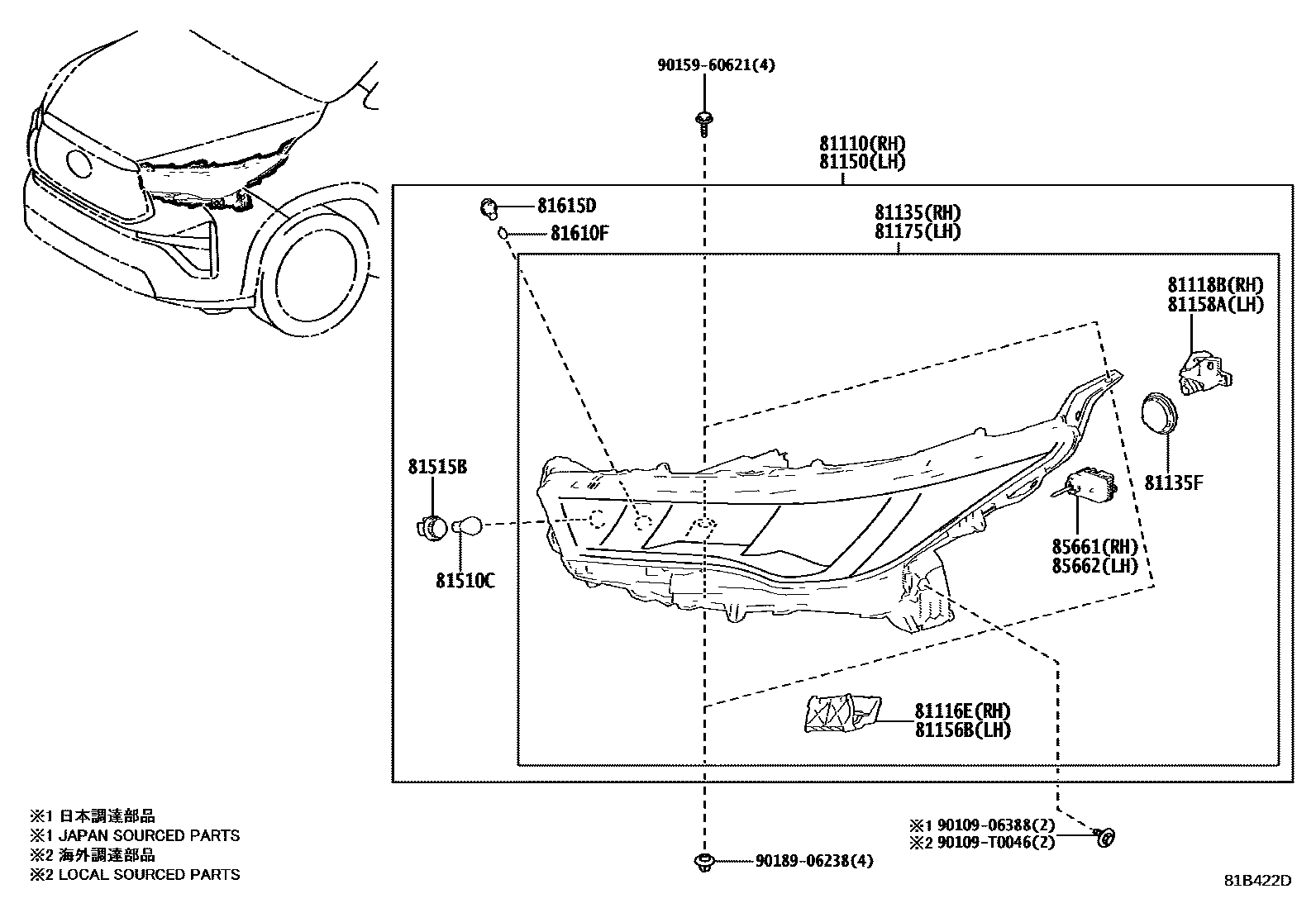

Toyota INNOVA — HEADLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

81110HEADLAMP ASSY, RH

main81110-VT010iMAGA10,MAGH10..L..IND202212

main81110-VT020iMAGH10..M..IND202212-202502

main81110-VT030iMAGH10..H..IND202212-202502

main81110-VT040iMAGA10,MAGH10..L..IDN202211

main81110-VT050iMAGA10,MAGH10..LHD..L202211

main81110-VT080iMAGA10,MAGH10..M..IDN202211

main81110-VT090iMAGA10..LHD..M202211-202306

main81110-VT100iMAGA10,MAGH10..RHD..IDNP..H202211

main81110-VT110iMAGH10..LHD..H202211-202306

main81110-VT200iMAGA10..M..PH202307

main81110-VT210iMAGH10..H..(GCC,PH)202307

81116EBRACKET, HEADLAMP, RH NO.2

main81116-VT010iMAGH10..(H,M)..IND202212-202503

81118BBRACKET, HEADLAMP, RH NO.1

main81118-VT010iMAGA10,MAGH10..L..IND202212-202503

main81146-VT040iMAGH10..H..(GCC,PH)202211-202307

main81146-VT080iMAGA10..M..VN202211-202307

81135UNIT ASSY, HEADLAMP, RH

main81130-VT040iMAGA10,MAGH10..L..IDN202211

main81130-VT050iMAGA10,MAGH10..LHD..L202211

main81130-VT080iMAGA10,MAGH10..M..IDN202211

main81130-VT090iMAGA10..M..VN202211-202307

main81130-VT100iMAGA10,MAGH10..RHD..IDNP..H202211

main81130-VT110iMAGH10..VN202211-202307

main81145-VT010iMAGA10,MAGH10..L..IND202212

main81145-VT020iMAGH10..M..IND202212-202503

81135FCOVER, HEADLAMP BACK

main90075-66016iMAGA10,MAGH10..L..IND¥610202212

81150HEADLAMP ASSY, LH

main81150-VT010iMAGA10,MAGH10..L..IND202212

main81150-VT020iMAGH10..M..IND202212-202502

main81150-VT030iMAGH10..H..IND202212-202502

main81150-VT040iMAGA10,MAGH10..L..IDN202211

main81150-VT050iMAGA10,MAGH10..LHD..L202211

main81150-VT080iMAGA10,MAGH10..M..IDN202211

main81150-VT090iMAGA10..LHD..M202211-202306

main81150-VT100iMAGA10,MAGH10..RHD..IDNP..H202211

main81150-VT110iMAGH10..VN202211-202306

main81150-VT200iMAGA10..M..PH202307

main81150-VT210iMAGH10..H..(GCC,PH)202307

81156BBRACKET, HEADLAMP, LH NO.2

main81156-VT010iMAGH10..(H,M)..IND202212-202503

81158ABRACKET, HEADLAMP, LH NO.1

main81158-VT010iMAGA10,MAGH10..L..IND202212-202503

main81158-VT040iMAGA10,MAGH10..(H,M)..(GCC,PH)202211-202307

81175UNIT ASSY, HEADLAMP, LH

main81170-VT040iMAGA10,MAGH10..L..IDN202211

main81170-VT050iMAGA10,MAGH10..LHD..L202211

main81170-VT080iMAGA10,MAGH10..M..IDN202211

main81170-VT090iMAGA10..M..VN202211-202307

main81170-VT100iMAGA10,MAGH10..RHD..IDNP..H202211

main81170-VT110iMAGH10..H..(GCC,PH)202211-202307

main81185-VT010iMAGA10,MAGH10..L..IND202212

main81185-VT020iMAGH10..M..IND202212-202503

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15020iMAGH10..H..(GCC,PH)¥350202211-202307

12V 21W,AMBER

main90981-15028iMAGA10,MAGH10..(L,M)..IND¥350202212

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-52570iMAGA10..M..VN;MAGA10..RHD..IDNP;MAGH10..IDN,MA,TH,VN¥660202211-202307

main90075-60069iMAGH10..M..IND¥1,000202212-202503

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069iMAGA10,MAGH10..L..IND¥110202212

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60089iMAGA10,MAGH10..L..IND¥610202212

85661MOTOR, HEADLAMP LEVELING, RH

main85661-VT010iMAGH10..(H,M)..IND202212-202503

85662MOTOR, HEADLAMP LEVELING, LH

main85661-VT010iMAGH10..(H,M)..IND202212-202503

9010906388

main90109-06388¥70

90109T0046

main90109-T0046

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

19 parts on this diagram · 5 diagrams in section
