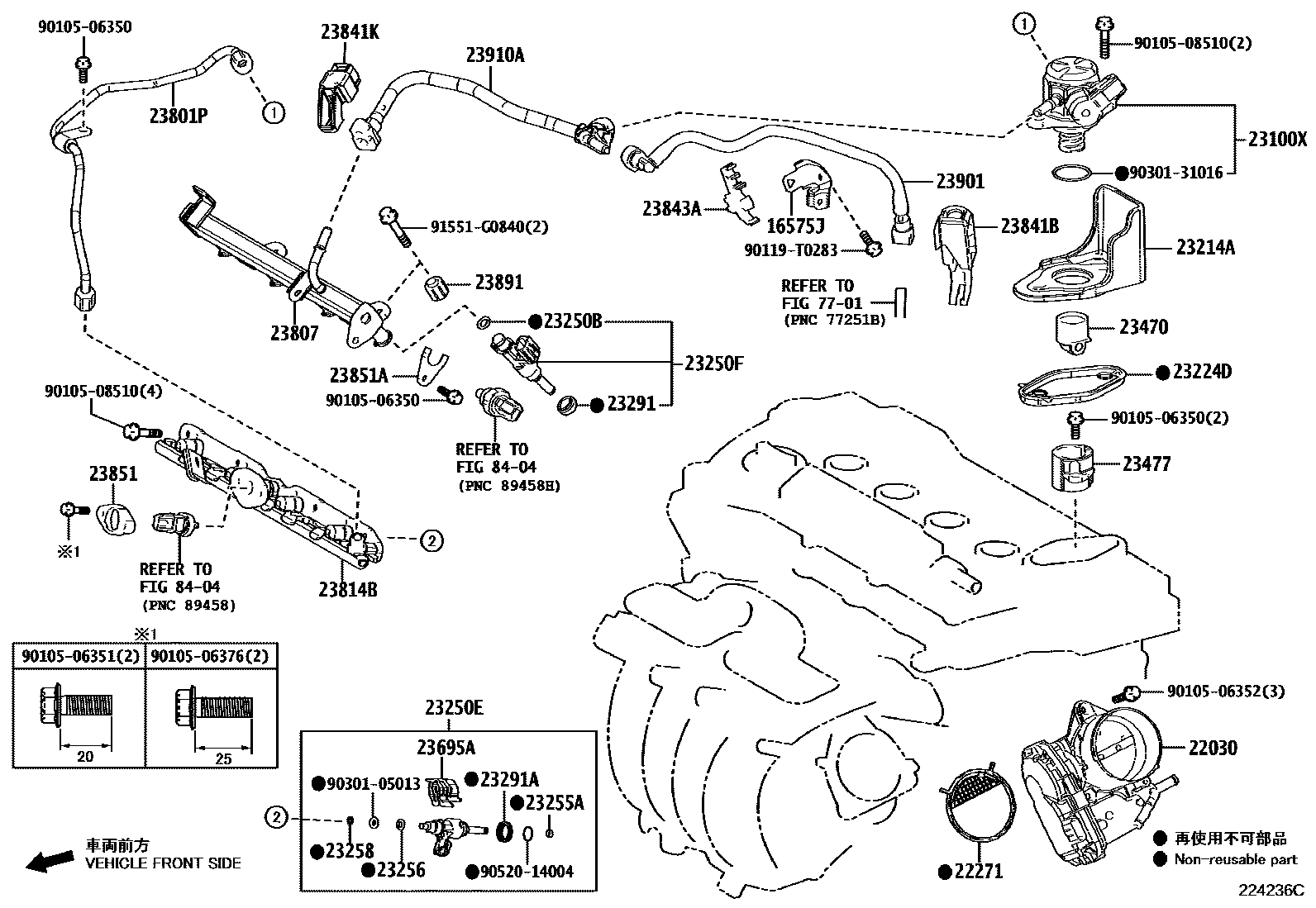

Toyota INNOVA — FUEL INJECTION SYSTEM
16575JBRACKET, FUEL TUBE CLAMP
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
(J)
(J)
(L)
(L)
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23214APROTECTOR, FUEL PUMP
(J)
(L)
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
(J)
(L)
23477GUIDE, FUEL PUMP LIFTER
(J)
(L)
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
(J)
(L)
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
(L)
(J)
7701
8404
9010506350
9010506351
9010506352
9010506376
9010508510
90119T0283
main90119-T0283
9030105013
9030131016
9052014004
91551G0840
40 parts on this diagram · 2 diagrams in section
