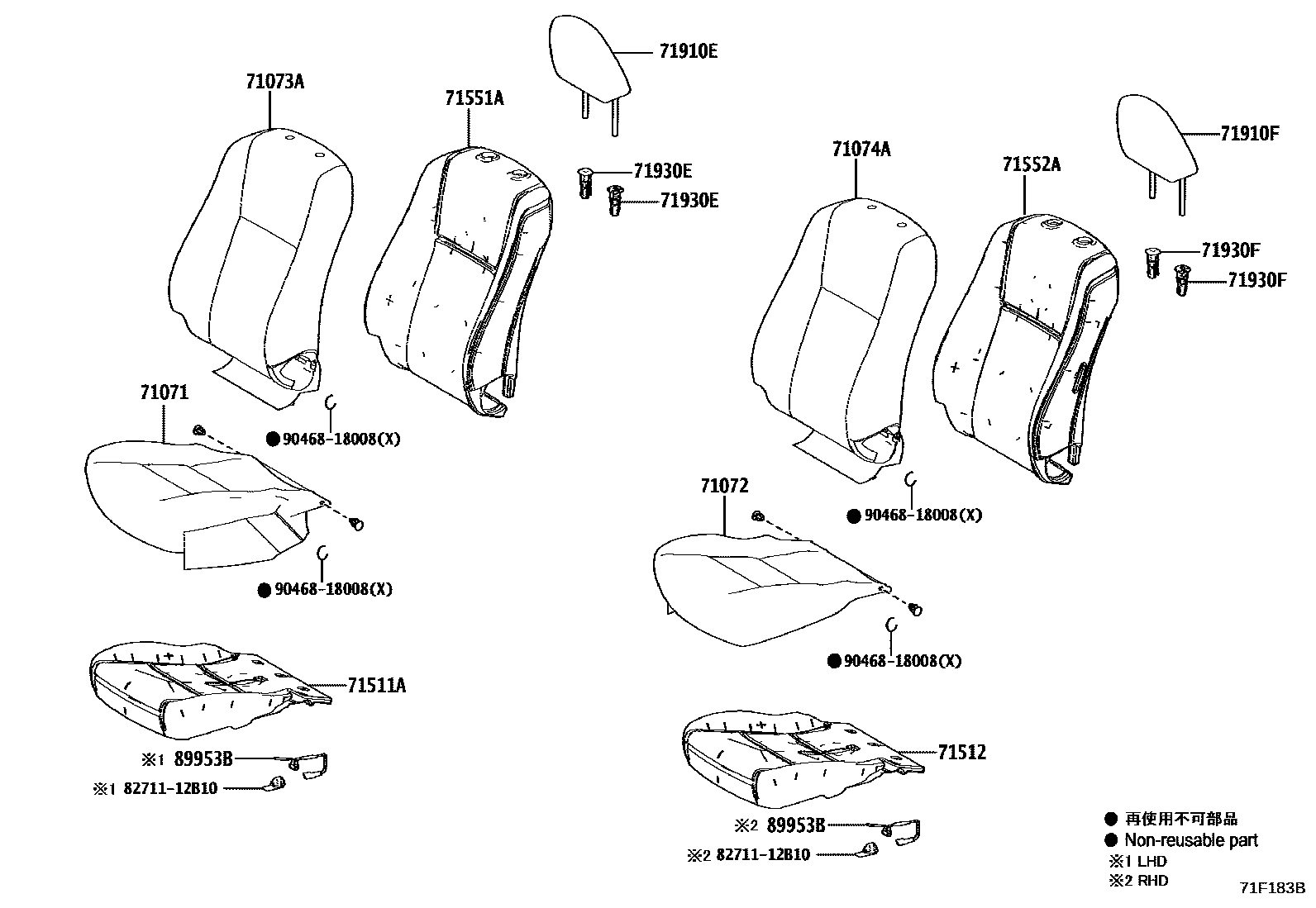

Toyota INNOVA — FRONT SEAT & SEAT TRACK

0001 1 0002 1DRIVER 0003 1DRIVER 0004 1DRIVER W(POWER SEAT) 0005 1DRIVER W(POWER SEAT) 0006 1DRIVER W(POWER SEAT) 0007 1DRIVER W(POWER SEAT) 0008 1DRIVER W(POWER SEAT) 0009 1DRIVER 0010 1DRIVER W(VERTICAL SEAT) 0011 1PASSENGER 0012 1PASSENGER 0013 1PASSENGER W(CLIMATE CONTROL S0014 1PASSENGER 0015 1FITTING PARTS 0016 1FITTING PARTS 0017 1SEAT EDGE WIRE

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-VT010-C1iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#

main71071-VT010-E1iMAGA10,MAGH10..L..IND202212

DARK CHESTNUT,TRIM4#

main71071-VT030-E1iMAGH10..M..IND202212

DARK CHESTNUT,TRIM4#

main71071-VT040-E2iMAGH10..H..IND202212

DARK CHESTNUT,TRIM4#

main71071-VT050-C1iMAGA10,MAGH10..L..IDN202211

BLACK,TRIM2#

main71071-VT050-E1iMAGA10,MAGH10..L..IDN202211

DARK CHESTNUT,TRIM4#

main71071-VT060-C1iMAGA10,MAGH10..08S..M..IDN202211

BLACK,TRIM2#

main71071-VT060-E1iMAGA10,MAGH10..08S..M..IDN202211

DARK CHESTNUT,TRIM4#

main71071-VT090-C2iMAGA10,MAGH10..08S..MA202211

BLACK,TRIM2#

main71071-VT100-C3iMAGA10,MAGH10..07S..(MA,TH)202211

BLACK,TRIM2#

main71071-VT100-C4iMAGH10..TH202211

DK.CHESTNUT,TRIM4#

main71071-VT110-C5iMAGA10,MAGH10..L..(GCC,PH)202211

BLACK,TRIM2#

main71071-VT110-E2iMAGA10,MAGH10..L..(GCC,PH)202211

DARK CHESTNUT,TRIM4#

main71071-VT120-C5iMAGA10..VN;MAGA10..M..PH;MAGH10..H..GCC202211

BLACK,TRIM2#

main71071-VT120-E1iMAGA10..VN;MAGA10..M..PH;MAGH10..H..GCC202211

DARK CHESTNUT,TRIM4#

main71071-VT130-C5iMAGH10..PH202211

BLACK,TRIM2#

main71071-VT130-C6iMAGH10..PH,VN202211

DK.CHESTNUT,TRIM4#

main71071-VT140-C5iMAGA10,MAGH10..07S..IDN202211

BLACK,TRIM2#

main71071-VT140-C6iMAGA10,MAGH10..07S..IDN202211

DK.CHESTNUT,TRIM4#

71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH

main71072-VT010-C1iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#

main71072-VT010-E1iMAGA10,MAGH10..L..IND202212

DARK CHESTNUT,TRIM4#

main71072-VT020-E1iMAGH10..M..IND202212

DARK CHESTNUT,TRIM4#

main71072-VT030-E2iMAGH10..H..IND202212

DARK CHESTNUT,TRIM4#

main71072-VT040-C1iMAGA10,MAGH10..L..IDN202211

BLACK,TRIM2#

main71072-VT040-E1iMAGA10,MAGH10..L..IDN202211

DARK CHESTNUT,TRIM4#

main71072-VT050-C3iMAGA10,MAGH10..RHD..IDNP..08S..(H,M)202211

BLACK,TRIM2#

main71072-VT050-E1iMAGA10,MAGH10..08S..M..IDN202211

DARK CHESTNUT,TRIM4#

main71072-VT060-C5iMAGA10,MAGH10..RHD..IDNP..07S202211

BLACK,TRIM2#

main71072-VT060-C6iMAGA10,MAGH10..07S..(IDN,TH)202211

DK.CHESTNUT,TRIM4#

main71072-VT080-C5iMAGA10,MAGH10..L..(GCC,PH)202211

BLACK,TRIM2#

main71072-VT080-E2iMAGA10,MAGH10..L..(GCC,PH)202211

DARK CHESTNUT,TRIM4#

main71072-VT090-C5iMAGA10..L..VN;MAGA10..M..PH;MAGH10..H..GCC202211

BLACK,TRIM2#

main71072-VT090-E1iMAGA10..L..VN;MAGA10..M..PH;MAGH10..H..GCC202211

DARK CHESTNUT,TRIM4#

main71072-VT100-C2iMAGA10..M..VN202211

BLACK,TRIM2#

main71072-VT100-E1iMAGA10..M..VN202211

DARK CHESTNUT,TRIM4#

main71072-VT110-C5iMAGH10..PH202211

BLACK,TRIM2#

main71072-VT110-C6iMAGH10..PH,VN202211

DK.CHESTNUT,TRIM4#

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-VT010-C2iMAGA10,MAGH10..L..IND202212-202308

BLACK,TRIM2#

main71073-VT010-E2iMAGA10,MAGH10..L..IND202212-202308

DARK CHESTNUT,TRIM4#

main71073-VT020-E1iMAGH10..M..IND202212-202308

DARK CHESTNUT,TRIM4#

main71073-VT030-E2iMAGH10..H..IND202212-202503

DARK CHESTNUT,TRIM4#

main71073-VT040-C1iMAGA10,MAGH10..L..IDN202211

BLACK,TRIM2#

main71073-VT040-E1iMAGA10,MAGH10..L..IDN202211

DARK CHESTNUT,TRIM4#

main71073-VT060-C5iMAGA10,MAGH10..08S..M..IDN202211

BLACK,TRIM2#

main71073-VT060-E1iMAGA10,MAGH10..08S..M..IDN202211

DARK CHESTNUT,TRIM4#

main71073-VT080-C2iMAGA10,MAGH10..08S..MA202211

BLACK,TRIM2#

main71073-VT090-C2iMAGA10,MAGH10..07S..(MA,TH)202211

BLACK,TRIM2#

main71073-VT090-C3iMAGH10..TH202211

DK.CHESTNUT,TRIM4#

main71073-VT120-C4iMAGA10,MAGH10..07S..IDN202211

BLACK,TRIM2#

main71073-VT120-C5iMAGA10,MAGH10..07S..IDN202211

DK.CHESTNUT,TRIM4#

main71073-VT130-E1iMAGH10..M..IND202308-202503

DARK CHESTNUT,TRIM4#

main71073-VT140-C0iMAGA10,MAGH10..L..(GCC,PH)202211

BLACK,TRIM2#

main71073-VT140-E0iMAGA10,MAGH10..L..(GCC,PH)202211

DARK CHESTNUT,TRIM4#

main71073-VT160-C0iMAGA10..M..PH202211

BLACK,TRIM2#

main71073-VT160-C0iMAGA10..M..PH202211

SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71073-VT160-E0iMAGH10..H..GCC202211

DARK CHESTNUT,TRIM4#

main71073-VT160-E0iMAGH10..H..GCC202211

SRS AIR BAG-WITH(DRIVER & PASSENGER),DARK CHESTNUT,TRIM4#

main71073-VT170-C0iMAGA10..VN;MAGH10..H..GCC202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#

main71073-VT170-C0iMAGA10..VN;MAGH10..H..GCC202211

BLACK,TRIM2#

main71073-VT170-E0iMAGA10..M..PH202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),DARK CHESTNUT,TRIM4#

main71073-VT170-E0iMAGA10..M..PH202211

DARK CHESTNUT,TRIM4#

main71073-VT180-C2iMAGH10..PH202211

BLACK,TRIM2#

main71073-VT180-C3iMAGH10..PH,VN202211

DK.CHESTNUT,TRIM4#

main71073-VT190-C0iMAGA10,MAGH10..L..IND202308-202503

BLACK,TRIM2#

main71073-VT190-E0iMAGA10,MAGH10..L..IND202308-202503

DARK CHESTNUT,TRIM4#

71074ACOVER SUB-ASSY, FRONT SEATBACK, LH

main71074-VT010-C2iMAGA10,MAGH10..L..IND202212-202308

BLACK,TRIM2#

main71074-VT010-E2iMAGA10,MAGH10..L..IND202212-202308

DARK CHESTNUT,TRIM4#

main71074-VT020-E1iMAGH10..M..IND202212-202308

DARK CHESTNUT,TRIM4#

main71074-VT030-E2iMAGH10..H..IND202212-202503

DRAK CHESTNUT,TRIM4#

main71074-VT040-C1iMAGA10,MAGH10..L..IDN202211

BLACK,TRIM2#

main71074-VT040-E1iMAGA10,MAGH10..L..IDN202211

DARK CHESTNUT,TRIM4#

main71074-VT060-C5iMAGA10,MAGH10..08S..M..IDN202211

BLACK,TRIM2#

main71074-VT060-E1iMAGA10,MAGH10..08S..M..IDN202211

DARK CHESTNUT,TRIM4#

main71074-VT070-C5iMAGA10,MAGH10..08S..M..IDN202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#

main71074-VT070-C5iMAGA10,MAGH10..08S..MA202211

BLACK,TRIM2#

main71074-VT080-C4iMAGA10,MAGH10..RHD..IDNP..07S202211

BLACK,TRIM2#

main71074-VT080-C5iMAGA10,MAGH10..07S..(IDN,TH)202211

DK.CHESTNUT,TRIM4#

main71074-VT110-C2iMAGA10..M..VN202211

BLACK,TRIM2#

main71074-VT110-E1iMAGA10..M..VN202211

DARK CHESTNUT,TRIM4#

main71074-VT120-C4iMAGH10..PH202211

BLACK,TRIM2#

main71074-VT120-C5iMAGH10..PH,VN202211

DK.CHESTNUT,TRIM4#

main71074-VT130-E1iMAGH10..M..IND202308-202503

DARK CHESTNUT,TRIM4#

main71074-VT140-C0iMAGA10,MAGH10..L..(GCC,PH)202211

BLACK,TRIM2#

main71074-VT140-E0iMAGA10,MAGH10..L..(GCC,PH)202211

DARK CHESTNUT,TRIM4#

main71074-VT160-C0iMAGA10..M..PH202211

BLACK,TRIM2#

main71074-VT160-C0iMAGA10..M..PH202211

SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71074-VT160-E0iMAGH10..H..GCC202211

DARK CHESTNUT,TRIM4#

main71074-VT160-E0iMAGA10..M..PH202211

SRS AIR BAG-WITH(DRIVER & PASSENGER),DARK CHESTNUT,TRIM4#

main71074-VT170-C0iMAGA10..M..PH202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#

main71074-VT170-C0iMAGA10..L..VN;MAGH10..H..GCC202211

BLACK,TRIM2#

main71074-VT170-E0iMAGA10..M..PH202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),DARK CHESTNUT,TRIM4#

main71074-VT170-E0iMAGA10..L..VN;MAGH10..H..GCC202211

DARK CHESTNUT,TRIM4#

main71074-VT180-C0iMAGA10,MAGH10..L..IND202308-202503

BLACK,TRIM2#

main71074-VT180-E0iMAGA10,MAGH10..L..IND202308-202503

DARK CHESTNUT,TRIM4#

71511APAD, FRONT SEAT CUSHION, RH

main71511-VT010iMAGA10,MAGH10..(L,M)..IND202212

main71511-VT030iMAGH10..H..IND202212

main71511-VT040iMAGA10,MAGH10..GCC,IDN,PH,VN202211

main71511-VT050iMAGA10,MAGH10..MA,TH202211

71512PAD, FRONT SEAT CUSHION, LH

main71502-VT030iMAGH10..H..IND202212

main71512-VT010iMAGA10,MAGH10..(L,M)..IND202212

main71512-VT020iMAGA10..L..VN;MAGA10..GCC,IDN,MA,PH;MAGH10..GCC,IDN,MA,TH202211

main71512-VT040iMAGH10..PH,VN;MAGA10..M..VN202211

71551APAD, FRONT SEATBACK, RH

main71551-VT010iMAGA10,MAGH10..(L,M)..IND202212-202308

main71551-VT030iMAGH10..H..IND202212-202503

main71551-VT050iMAGA10..M..PH;MAGA10,MAGH10..08S..(L,M)..(GCC,IDN,PH)202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main71551-VT060iMAGA10..VN;MAGA10..07S..IDN;MAGH10..H..(GCC,IDN,PH,VN)202211

UAE SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main71551-VT060iMAGA10..VN;MAGA10..07S..IDN;MAGH10..H..(GCC,IDN,PH,VN)202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main71551-VT070iMAGA10,MAGH10..MA,TH202211

main71551-VT110iMAGA10,MAGH10..(L,M)..IND202308-202503

71552APAD, FRONT SEATBACK, LH

main71552-VT010iMAGA10,MAGH10..(L,M)..IND202212-202308

main71552-VT020iMAGH10..H..GCC202211

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main71552-VT030iMAGA10..M..PH;MAGA10,MAGH10..08S..(IDN,PH)202211

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main71552-VT030iMAGA10..M..PH;MAGA10,MAGH10..08S..(IDN,PH)202211

UAE SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main71552-VT070iMAGH10..PH,VN;MAGA10..M..VN202211

main71552-VT080iMAGH10..H..IND202212-202503

main71552-VT090iMAGA10,MAGH10..(L,M)..IND202308-202503

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-VT010-C1iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main71910-VT020-E1iMAGH10..M..IND202212

DARK CHESTNUT,TRIM4#

main71910-VT030-E3iMAGH10..H..IND202212

DARK CHESTNUT,TRIM4#

main71910-VT040-C1iMAGA10,MAGH10..L..(GCC,IDN,PH)202211

BLACK,TRIM2#,4#

main71910-VT050-C3iMAGA10..L..VN;MAGA10..M..PH;MAGH10..07S..GCC;MAGA10,MAGH10..IDNP..08S..(H,M)202211

BLACK,TRIM2#

main71910-VT050-E2iMAGA10..L..VN;MAGA10..M..PH;MAGH10..07S..GCC;MAGA10,MAGH10..08S..(H,M)..(GCC,IDN,VN)202211

DARK CHESTNUT,TRIM4#

main71910-VT060-C3iMAGA10..RHD..IDNP..07S;MAGH10..07S..(IDN,MA,PH,TH)202211

BLACK,TRIM2#

main71910-VT060-E4iMAGA10..07S..IDN;MAGH10..H..(IDN,PH,TH,VN)202211

DK. CHESTNUT,TRIM4#

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-VT010-C1iMAGA10,MAGH10..L..IND202212

BLACK,TRIM2#,4#

main71910-VT020-E1iMAGH10..M..IND202212

DARK CHESTNUT,TRIM4#

main71910-VT030-E3iMAGH10..H..IND202212

DARK CHESTNUT,TRIM4#

main71910-VT040-C1iMAGA10,MAGH10..L..(GCC,IDN,PH)202211

BLACK,TRIM2#,4#

main71910-VT050-C3iMAGA10..L..VN;MAGA10..M..PH;MAGH10..07S..GCC;MAGA10,MAGH10..IDNP..08S..(H,M)202211

BLACK,TRIM2#

main71910-VT050-E2iMAGA10..L..VN;MAGA10..M..PH;MAGH10..07S..GCC;MAGA10,MAGH10..08S..(H,M)..(GCC,IDN,VN)202211

DARK CHESTNUT,TRIM4#

main71910-VT060-C3iMAGA10..RHD..IDNP..07S;MAGH10..07S..(IDN,MA,PH,TH)202211

BLACK,TRIM2#

main71910-VT060-E4iMAGA10..07S..IDN;MAGH10..H..(IDN,PH,TH,VN)202211

DK. CHESTNUT,TRIM4#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-0D140-C1iMAGH10..GCC,IDN,PH;MAGA10..IDNP..(L,M)202211

W(LOCK),BLACK,TRIM2#,4#

main71930-0D140-C1iMAGH10..VN202211

W(LOCK),BLACK,TRIM4#

main71930-0K050-C1iMAGA10,MAGH10..MA202211

W(LOCK),BLACK,TRIM2#

main71930-0K050-C1iMAGA10,MAGH10..MA202211

W(LOCK),BLACK,TRIM2#,4#

main71930-VT010-C0iMAGH10..M..IND202212

W(LOCK),BLACK,TRIM4#

main71930-VT010-C0iMAGA10,MAGH10..L..IND202212

W(LOCK),BLACK,TRIM2#,4#

main71930-VT020-C0iMAGH10..H..IND202212

W(LOCK),BLACK,TRIM4#

main71931-0D150-C1iMAGH10..GCC,IDN,PH;MAGA10..IDNP..(L,M)202211

W/O(LOCK),BLACK,TRIM2#,4#

main71931-0D150-C1iMAGH10..GCC,IDN,PH;MAGA10..IDNP..(L,M)202211

W/O(LOCK),BLACK,TRIM4#

main71931-0K040-C1iMAGH10..TH202211

W/O(LOCK),BLACK,TRIM2#

main71931-0K040-C1iMAGH10..TH202211

W/O(LOCK),BLACK,TRIM2#,4#

main71931-VT010-C0iMAGA10,MAGH10..L..IND202212

W/O(LOCK),BLACK,TRIM2#,4#

main71931-VT010-C0iMAGA10,MAGH10..L..IND202212

W/O(LOCK),BLACK,TRIM4#

main71931-VT020-C0iMAGH10..H..IND202212

W/O(LOCK),BLACK,TRIM4#

71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH

main71930-0D140-C1iMAGA10,MAGH10..MA202211

W(LOCK),BLACK,TRIM2#

main71930-0D140-C1iMAGA10,MAGH10..MA202211

W(LOCK),BLACK,TRIM2#,4#

main71930-0K050-C1iMAGH10..PH;MAGA10..M..VN202211

W(LOCK),BLACK,TRIM2#,4#

main71930-0K050-C1iMAGH10..VN202211

W(LOCK),BLACK,TRIM4#

main71930-VT010-C0iMAGA10,MAGH10..L..IND202212

W(LOCK),BLACK,TRIM2#,4#

main71930-VT010-C0iMAGA10,MAGH10..L..IND202212

W(LOCK),BLACK,TRIM4#

main71931-0D150-C1iMAGA10,MAGH10..MA202211

W/O(LOCK),BLACK,TRIM2#,4#

main71931-0D150-C1iMAGA10..L..VN;MAGA10..GCC,IDN,PH;MAGH10..GCC,IDN,TH202211

W/O(LOCK),BLACK,TRIM2#

main71931-0K040-C1iMAGH10..PH;MAGA10..M..VN202211

W/O(LOCK),BLACK,TRIM2#,4#

main71931-0K040-C1iMAGH10..VN202211

W/O(LOCK),BLACK,TRIM4#

main71931-VT010-C0iMAGA10,MAGH10..L..IND202212

W/O(LOCK),BLACK,TRIM4#

main71931-VT010-C0iMAGH10..(H,M)..IND202212

W/O(LOCK),BLACK,TRIM2#,4#

89953BSENSOR, BELT WARNING OCCUPANT DETECTION

main89953-0K020iMAGA10,MAGH10..IDNP202211

main89953-VT010iMAGA10,MAGH10..IND202212

8271112B10WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B10¥140

9046818008

main90468-18008¥80

15 parts on this diagram · 17 diagrams in section
