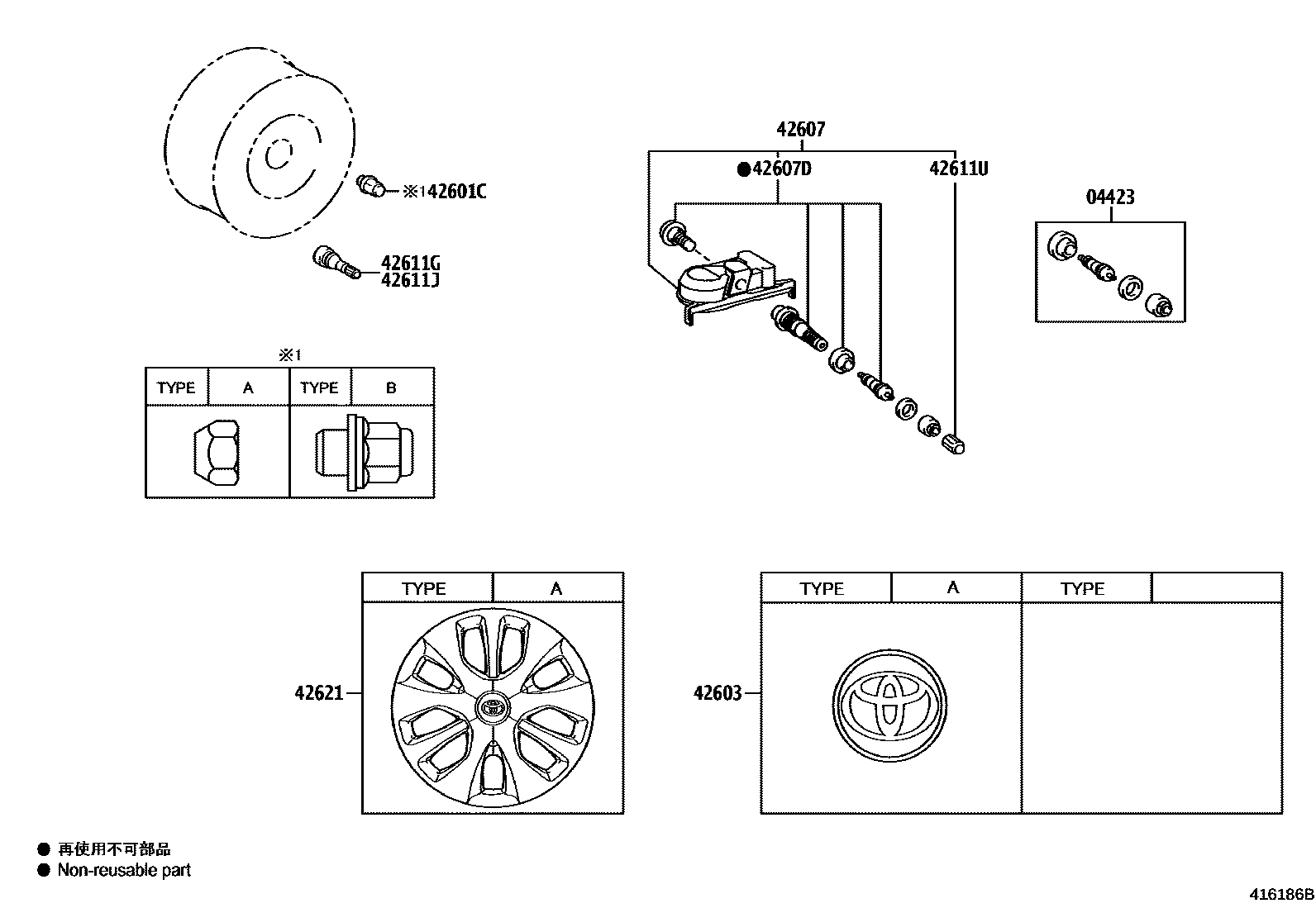

Toyota INNOVA — DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iMAGA10,MAGH10..L..GCC;MAGA10,MAGH10..(H,M)..(GCC,IND,MA,TH,VN)¥280202211

42601WHEEL, DISC

main42611-VT030iMAGA10,MAGH10..L..IND202212

16X6J, #,TYPE B:REFER ILLUST.

main42611-VT040iMAGA10,MAGH10..IDNP..L202211

16X6J, #,TYPE E:REFER ILLUST.

main42611-VT050iMAGA10,MAGH10..IDNP..L202211

16X6J, #,TYPE F:REFER ILLUST.

main42611-VT060iMAGA10,MAGH10..IDNP..L202211

16X6J, #,TYPE G:REFER ILLUST.

main42611-VT070iMAGH10..M..IND202212

17X6.5J, #,TYPE C:REFER ILLUST.

main42611-VT080iMAGA10..M;MAGH10..07S..GCC;MAGH10..08S..(H,M)..(GCC,IDN)202211

17X6.5J, #,TYPE H:REFER ILLUST.

main42611-VT090iMAGA10..M;MAGH10..07S..GCC;MAGH10..08S..(H,M)..(GCC,IDN)202211

17X6.5J, #,TYPE I:REFER ILLUST.

main42611-VT230iMAGH10..H..IND202404

18X7J, #,TYPE D:REFER ILLUST.

main4261A-VT010iMAGH10..H..IND202212-202404

18X7J, #,TYPE D:REFER ILLUST.

main4261A-VT020iMAGA10,MAGH10..H..(IDN,MA,PH,TH,VN)202211

18X7J, #,TYPE J:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iMAGA10,MAGH10..IND¥430202403

TYPE B:REFER ILLUST.

main90942-T1003iMAGA10,MAGH10..IND202211-202403

TYPE B:REFER ILLUST.

main90942-T1003iMAGA10,MAGH10..IDNP202211

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-VT010iMAGA10,MAGH10202211

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12020iMAGA10,MAGH10..L..GCC;MAGA10,MAGH10..(H,M)..(GCC,IND,MA,TH,VN)¥6,500202211

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044iMAGA10,MAGH10..L..GCC;MAGA10,MAGH10..(H,M)..(GCC,IND,MA,TH,VN)¥530202211

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iMAGA10..L..VN;MAGA10,MAGH10..IDN,PH¥390202211

main90942-T5001iMAGA10,MAGH10..L..IND202212

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMAGA10,MAGH10..IDNP¥390202211

main90942-T5001iMAGA10,MAGH10..IND202212

42611UCAP, TIRE VALVE

main90942-05039iMAGA10,MAGH10..L..GCC;MAGA10,MAGH10..(H,M)..(GCC,IND,MA,TH,VN)¥90202211

42621CAP, WHEEL

main42602-0K080

10 parts on this diagram · 2 diagrams in section
