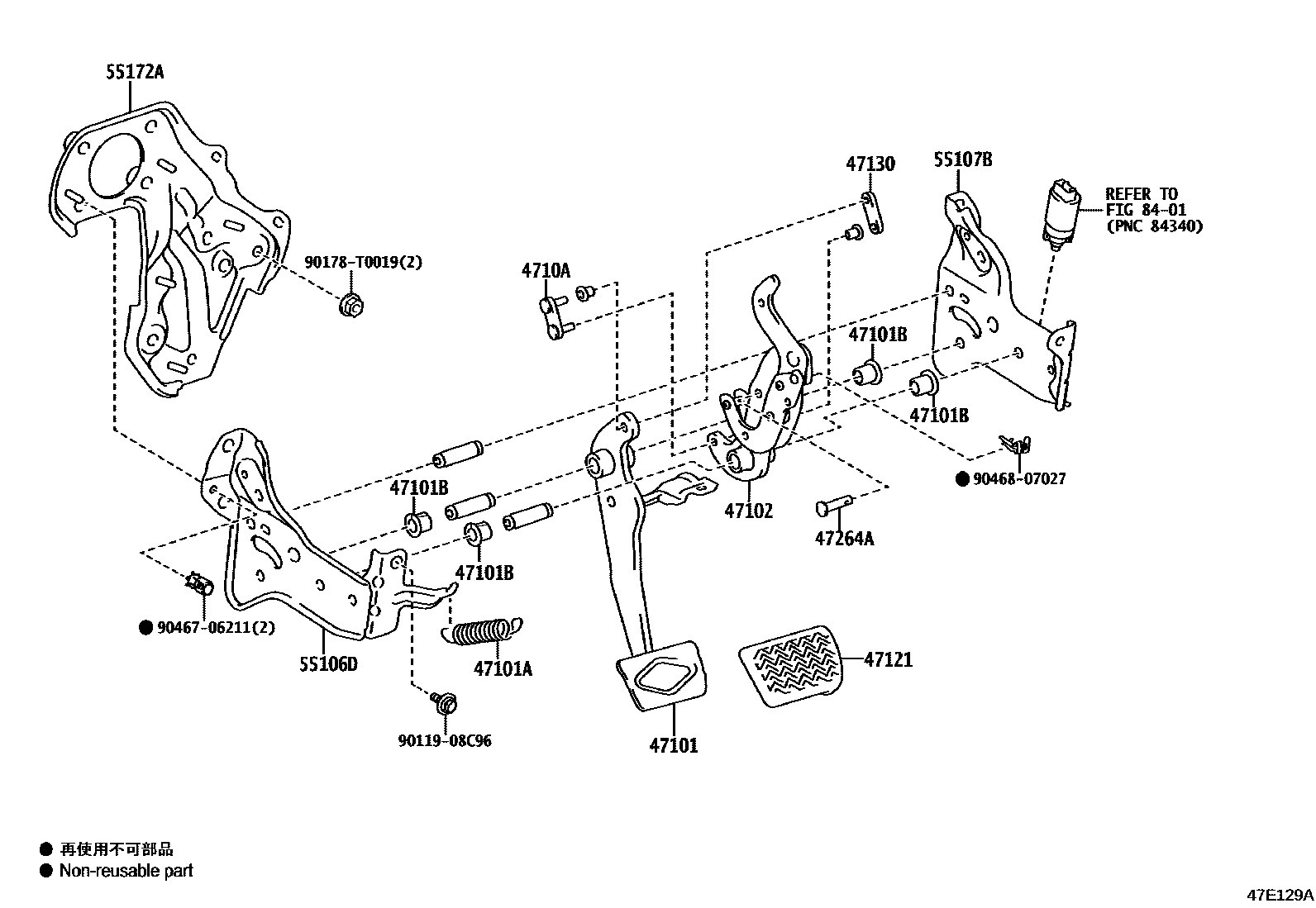

Toyota INNOVA — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101PEDAL SUB-ASSY, BRAKE

main47101-VT010iMAGA10..RHD..IDNP202211

main47101-VT020iMAGH10..RHD..IDNP202211

main47101-VT030iMAGA10..LHD202211

main47101-VT040iMAGH10..LHD202211

main47101-VT050iMAGA10..IND202212

main47101-VT060iMAGH10..IND202212

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-VT030iMAGA10,MAGH10..IDNP202211

main47146-VT040iMAGA10,MAGH10..IND202212

47101BBUSH(FOR BRAKE PEDAL)

main90386-14016iMAGA10,MAGH10202211

47102LEVER SUB-ASSY, BRAKE PEDAL

main47102-VT010iMAGA10..RHD..IDNP202211

main47102-VT020iMAGH10..RHD..IDNP202211

main47102-VT030iMAGA10..LHD202211

main47102-VT040iMAGH10..LHD202211

main47102-VT050iMAGA10..IND202212

main47102-VT060iMAGH10..IND202212

4710ALINK SUB-ASSY, BRAKE PEDAL

main4710A-22020iMAGA10,MAGH10..RHD202211

main4710A-60030iMAGA10,MAGH10..LHD202211

47121PAD, BRAKE PEDAL

main47121-47010iMAGA10,MAGH10¥400202211

47130LINK ASSY, BRAKE PEDAL

main47130-60021iMAGA10,MAGH10¥350202211

47264APIN(FOR PUSH ROD)

main90240-08082iMAGA10,MAGH10¥120202211

55106DBRACKET SUB-ASSY, PEDAL

main55106-VT010iMAGA10,MAGH10..RHD..IDNP202211

main55106-VT020iMAGA10..LHD202211

main55106-VT030iMAGH10..LHD202211

main55106-VT040iMAGA10,MAGH10..IND202212

55107BBRACKET SUB-ASSY, PEDAL, NO.2

main55107-VT010iMAGA10..RHD..IDNP202211

main55107-VT020iMAGH10..RHD..IDNP202211

main55107-VT030iMAGA10,MAGH10..LHD202211

main55107-VT040iMAGA10..IND202212

main55107-VT050iMAGH10..IND202212

55172ABASE, BRAKE PEDAL SUPPORT

main55172-VT010iMAGA10,MAGH10..IND202212

main55172-VT020iMAGA10,MAGH10..RHD..IDNP202211

main55172-VT030iMAGA10,MAGH10..LHD202211

8401

9011908C96

main90119-08C96¥80

90178T0019

main90178-T0019

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

16 parts on this diagram · 4 diagrams in section
