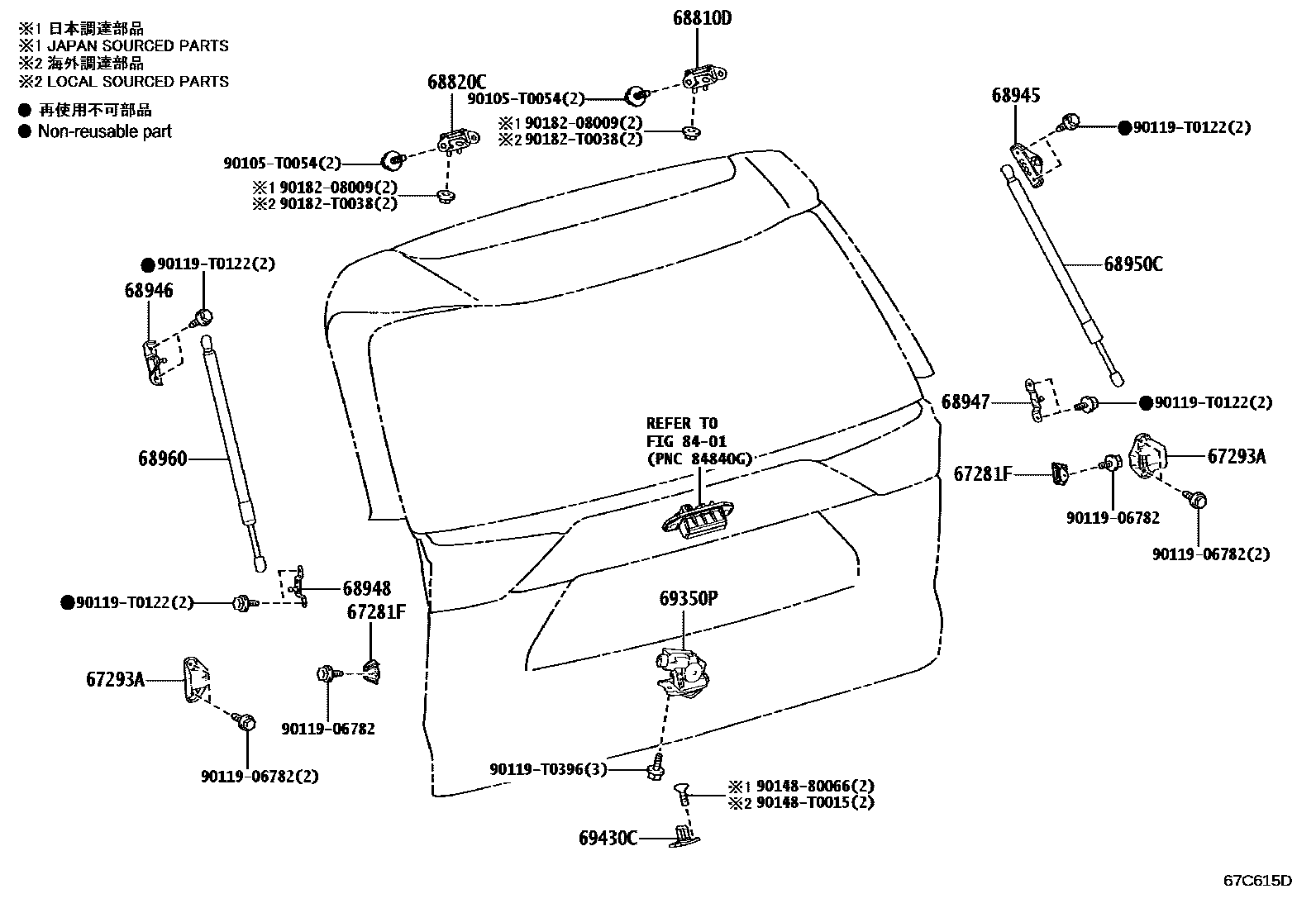

Toyota INNOVA — BACK DOOR LOCK & HINGE

0001 1 0002 1

67281FSTOPPER, BACK DOOR, LOWER

main67281-VT010iMAGA10,MAGH10..IDNP202211

main67281-VT020iMAGA10,MAGH10..IND202212

67293ACUSHION, BACK DOOR STOPPER

main67293-0K020iMAGA10,MAGH10..IDNP202211

main67293-0K030iMAGA10,MAGH10..IND202212

68810DHINGE ASSY, BACK DOOR, RH

main68810-VT010iMAGA10,MAGH10..IDNP202211

PAD T=1.0

main68810-VT020iMAGA10,MAGH10..IDNP202211

PAD T=1.5

main68810-VT030iMAGA10,MAGH10..IDNP202211

PAD T=2.0

main68810-VT040iMAGA10,MAGH10..IND202212

PAD T=1.0

main68810-VT050iMAGA10,MAGH10..IND202212

PAD T=1.5

main68810-VT060iMAGA10,MAGH10..IND202212

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-VT010iMAGA10,MAGH10..IDNP202211

PAD T=1.0

main68810-VT020iMAGA10,MAGH10..IDNP202211

PAD T=1.5

main68810-VT030iMAGA10,MAGH10..IDNP202211

PAD T=2.0

main68810-VT040iMAGA10,MAGH10..IND202212

PAD T=1.0

main68810-VT050iMAGA10,MAGH10..IND202212

PAD T=1.5

main68810-VT060iMAGA10,MAGH10..IND202212

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-VT010iMAGA10..GCC,IDN;MAGH10..07S..GCC;MAGA10..L..(PH,VN);MAGH10..08S..(GCC,IDN)202211

main68945-VT020iMAGA10..(H,M)..(MA,PH,VN);MAGH10..H..(IDN,MA,PH,TH,VN)202211

main68945-VT030iMAGA10,MAGH10..(L,M)..IND202212

main68945-VT040iMAGH10..H..IND202212

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-VT010iMAGA10..GCC,IDN;MAGH10..07S..GCC;MAGA10..L..(PH,VN);MAGH10..08S..(GCC,IDN)202211

main68946-VT020iMAGA10..(H,M)..(MA,PH,VN);MAGH10..H..(IDN,MA,PH,TH,VN)202211

main68946-VT030iMAGA10,MAGH10..(L,M)..IND202212

main68946-VT040iMAGH10..H..IND202212

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-VT010iMAGA10..GCC,IDN;MAGH10..07S..GCC;MAGA10..L..(PH,VN);MAGH10..08S..(GCC,IDN)202211

main68947-VT020iMAGA10..(H,M)..(MA,PH,VN);MAGH10..H..(IDN,MA,PH,TH,VN)202211

main68947-VT030iMAGA10,MAGH10..(L,M)..IND202212

main68947-VT040iMAGH10..H..IND202212

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-VT010iMAGA10..GCC,IDN;MAGH10..07S..GCC;MAGA10..L..(PH,VN);MAGH10..08S..(GCC,IDN)202211

main68948-VT020iMAGA10..(H,M)..(MA,PH,VN);MAGH10..H..(IDN,MA,PH,TH,VN)202211

main68948-VT030iMAGA10,MAGH10..(L,M)..IND202212

main68948-VT040iMAGH10..H..IND202212

68950CSTAY ASSY, BACK DOOR, RH

main68950-VT010iMAGA10..GCC,IDN;MAGH10..07S..GCC;MAGA10..L..(PH,VN);MAGH10..08S..(GCC,IDN)202211

main68950-VT020iMAGA10,MAGH10..(L,M)..IND202212

68960STAY ASSY, BACK DOOR, LH

main68960-VT010iMAGA10..GCC,IDN;MAGH10..07S..GCC;MAGA10..L..(PH,VN);MAGH10..08S..(GCC,IDN)202211

main68960-VT020iMAGA10,MAGH10..(L,M)..IND202212

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0K190iMAGA10..GCC,IDN;MAGH10..07S..GCC;MAGA10..L..(PH,VN);MAGH10..08S..(GCC,IDN)202211

main69350-0K290iMAGA10..(H,M)..(MA,PH,VN);MAGH10..H..(IDN,MA,PH,TH,VN)202211

main69350-0K300iMAGA10,MAGH10..(L,M)..IND202212

main69350-0K311iMAGH10..H..IND202212

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0K061iMAGA10,MAGH10..IND202212

main69430-0K161iMAGA10,MAGH10..IDNP202211

8401

90105T0054

main90105-T0054

9011906782

main90119-06782¥60

90119T0122

main90119-T0122

90119T0396

main90119-T0396

9014880066

main90148-80066¥60

90148T0015

main90148-T0015

9018208009

main90182-08009¥100

90182T0038

main90182-T0038

21 parts on this diagram · 2 diagrams in section
