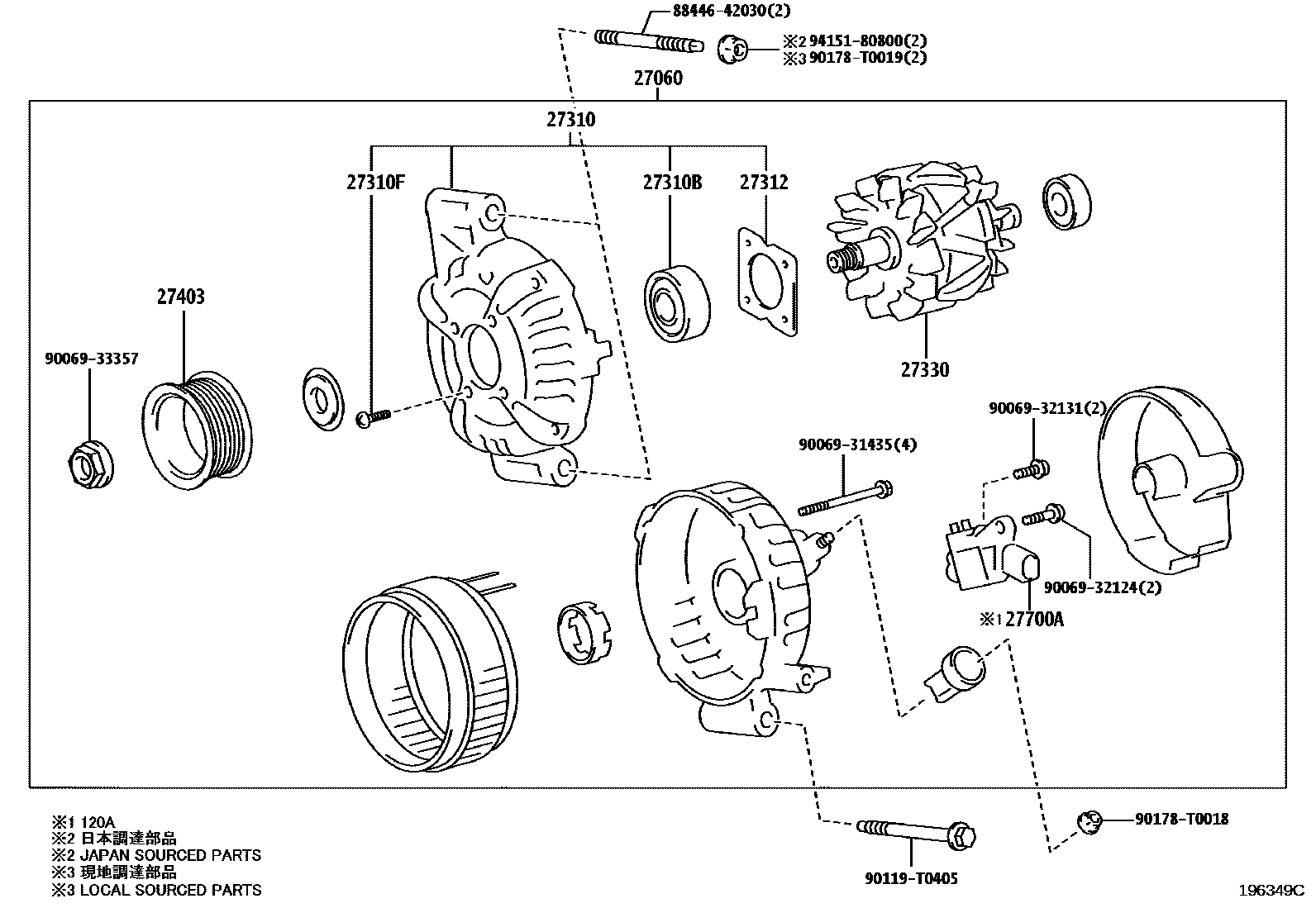

Toyota INNOVA — ALTERNATOR

0001 112V 120A 0002 112V 100A

27060ALTERNATOR ASSY, W/REGULATOR

main27060-F2100iM20AFKS..MAGA10..IND202212

12V 120A

main27060-F2170iM20AFKS..MAGA10..IDNP202211

12V 100A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-F2100iM20AFKS..MAGA10..IND202212

main27310-F2130iM20AFKS..MAGA10..IDNP202211

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033iM20AFKS..MAGA10..IDNP202211

main90069-40015iM20AFKS..MAGA10..IND202212

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90068-00022iM20AFKS..MAGA10..IDNP202211

main90069-32123iM20AFKS..MAGA10..IND202212

27312PLATE, RETAINER

main27312-0C020iM20AFKS..MAGA10..IDNP202211

main27312-F2100iM20AFKS..MAGA10..IND202212

27330ROTOR ASSY, ALTERNATOR

main27330-0V220iM20AFKS..MAGA10..IDNP202211

main27330-F2100iM20AFKS..MAGA10..IND202212

27403PULLEY SET, ALTERNATOR

main27403-F2100iM20AFKS..MAGA10..IND202212

27700AREGULATOR ASSY, GENERATOR

main27700-K0020iM20AFKS..MAGA10..IND202212

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

9006931435

main90069-31435

9006932124

main90069-32124

9006932131

main90069-32131

9006933357

main90069-33357

90119T0405

main90119-T0405

90178T0018

main90178-T0018¥70

90178T0019

main90178-T0019

9415180800

main94151-80800¥80

17 parts on this diagram · 2 diagrams in section
