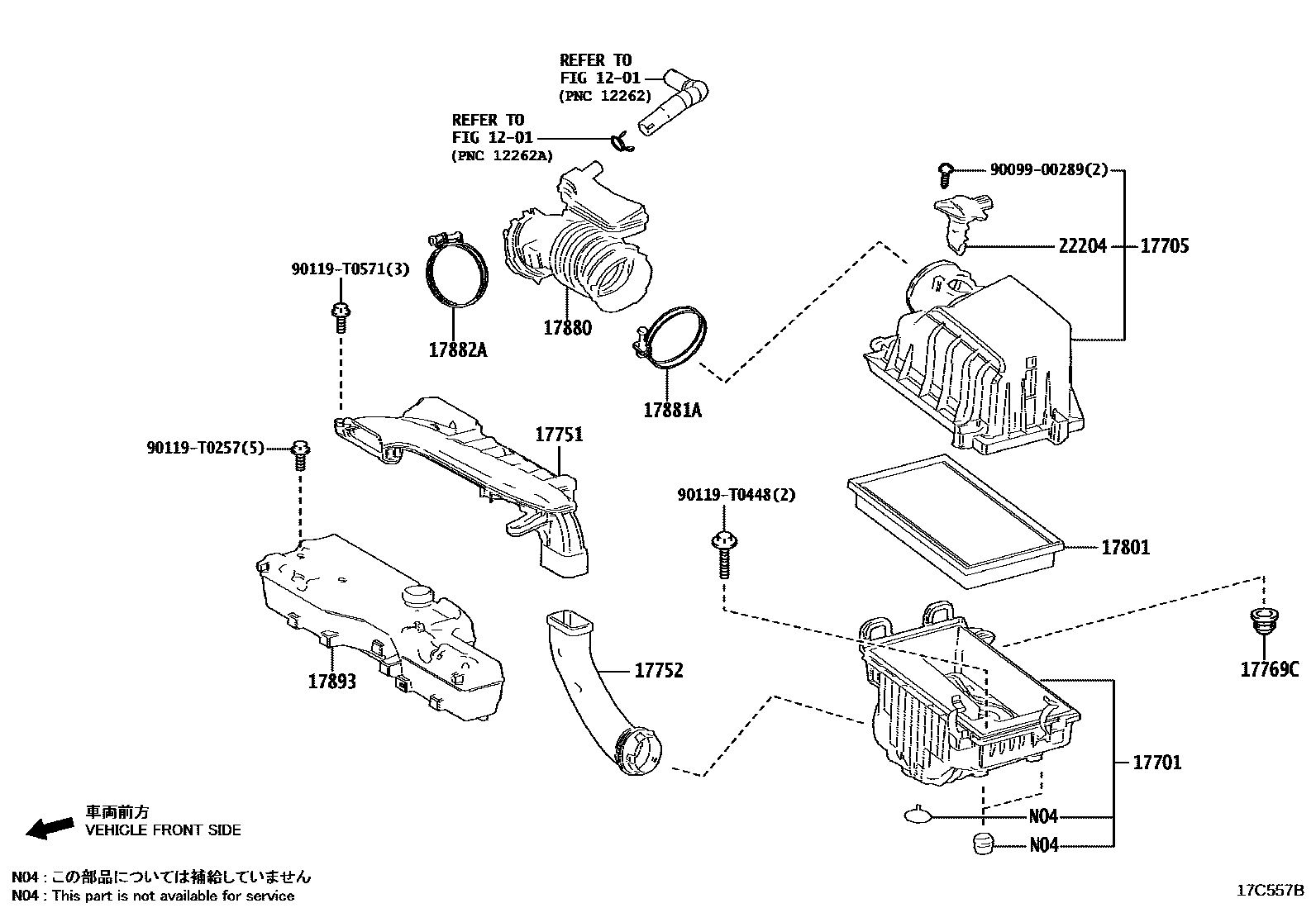

Toyota INNOVA — AIR CLEANER

0001 1 0002 1

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-VT010iM20AFKS..MAGA10..IND202212

main17701-VT020iM20AFKS..MAGA10..IDNP202211

main17701-VT031iM20AFXE..MAGH10..IDNP202212-202403

sub17701-VT032

sub17735-VT032

main17701-VT032iM20AFXE..MAGH10..IND202406

main17701-VT041iM20AFXE..MAGH10..IDNP202211-202305

17705CAP SUB-ASSY, AIR CLEANER

main17705-VT010iM20AFKS..MAGA10..IND202212

main17705-VT020iM20AFKS..MAGA10..IDNP202211

17751INLET, AIR CLEANER, NO.1

main17751-VT010iM20AFKS..MAGA10..IND202212

main17751-VT020iM20AFKS..MAGA10..IDNP202211

17752INLET, AIR CLEANER, NO.2

main17752-VT010iM20AFKS..MAGA10..IND202212

main17752-VT020iM20AFKS..MAGA10..IDNP202211

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25010iM20AFKS..MAGA10¥170202211

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-VT010iM20#..MAGA10,MAGH10202211

17880HOSE ASSY, AIR CLEANER

main17880-VT010iM20AFKS..MAGA10..IND202212

main17880-VT020iM20AFKS..MAGA10..IDNP202211

17881HOSE, AIR CLEANER, NO.1

main17881-VT030iM20AFXE..MAGH10202211

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710iM20AFXE..MAGH10¥160202211

main96111-10850iM20AFKS..MAGA10¥240202211

17882HOSE, AIR CLEANER, NO.2

main17882-VT010iM20AFXE..MAGH10202211

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-T0005iM20#..MAGA10,MAGH10202211

17893RESONATOR, INTAKE AIR

main17893-VT010iM20AFKS..MAGA10..IND202212

main17893-VT020iM20AFKS..MAGA10..IDNP202211

main17893-VT030iM20AFXE..MAGH10..IND202212

main17893-VT040iM20AFXE..MAGH10..IDNP202211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iM20AFXE..MAGH10..IND¥12,400202212

main22204-75040iM20AFKS..MAGA10¥9,400202211

9009900289

main90099-00289¥60

90119T0257

main90119-T0257

90119T0448

main90119-T0448

90119T0571

main90119-T0571

18 parts on this diagram · 2 diagrams in section
