Toyota HILUX — WIRING & CLAMP

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� & ������ 0005 1����� ��� 0006 1����� & ������ 0007 1����� ��� 0008 1����� & ������ 0009 1������-� ��� 0010 1������-� ��� 0011 1��� ��� 0012 1��� ��� 0013 1�-�,���,��-� & ���������� ���0014 1�-��� �����

82121WIRE, ENGINE

main82121-3D540iLN147¥16,500199708-200407

main82121-3D550iLN167,172¥19,500199708-200407

main82121-3D680iLN165,170¥37,200199708-199908

main82121-3D760iRZN147..MTM¥34,000199708-200308

main82121-3D770iRZN147,152..ATM¥34,000199708-200108

main82121-3D780iRZN167¥37,200199708-199908

main82121-3G510iRZN169,174¥61,100199908-200308

main82121-3M010iRZN147,152..ATM¥42,400200108-200308

82122WIRE, ENGINE, NO.2

main82122-35510iLN147¥18,100199708-200407

main82122-35520iLN147¥22,400199708-200407

main82122-35550iLN167..D¥22,400199708-200407

main82122-35560iLN167,172..Q¥22,300199708-199908

sub82122-35561¥24,000

main82122-35561iLN167,172..Q¥24,000199908-200407

main82122-35570iLN165,170¥22,300199708-199908

main82122-35580iLN167..D¥21,100199708-200407

main82122-35600iRZN147¥10,500199708-199908

sub82122-35601¥21,500

main82122-35601iRZN147,152¥21,500199908-200108

main82122-35630iRZN167¥21,000199708-199908

main82122-35670iRZN167¥21,000199708-199908

main82122-35691iRZN169,174¥31,900199908-200308

main82122-35730iLN16#,17#..Q¥22,300199708-199908

sub82122-35731¥37,200

main82122-35731iLN167,172..Q¥37,200199908-200407

main82122-35860iRZN147¥12,000199708-199908

sub82122-35861¥21,400

main82122-35861iRZN147,152¥21,400199908-200108

main82122-35A10iRZN147,152¥21,500200306-200308

main82122-3D030iRZN169,174¥31,900199908-200308

main82122-3D110iRZN147,152¥21,500200108-200308

main82122-3D120iRZN147,152¥21,500200108-200306

82127WIRE, DIFFERENTIAL

main82127-35140iLN172¥460199708-200407

82823SCAP, STARTER TERMINAL

main82823-35040iRZN147,152,16#,174¥470199708-200108

main82823-35040iRZN147,152,169,174¥470200108-200308

main82823-35050iRZN147,152,169,174¥530200108-200308

main82823-35050iRZN16#,174¥530199708-200108

main82823-35060iLN147,167,172¥660199708-200108

main82823-35060iLN147,167,172¥660200108-200407

main82823-35070iLN147,16#,17#¥690199708-200108

main82823-35070iLN147,167,172¥690200108-200407

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iLN147,16#,17#¥390199708-200308

main82823-22050iLN147,167,172¥390200108-200407

8271534210BRACKET,WIRING HARNESS CLAMP

main82715-34210¥360

8271535680BRACKET,WIRING HARNESS CLAMP

main82715-35680¥390

8271535880BRACKET,WIRING HARNESS CLAMP

main82715-35880¥510

827153D040BRACKET,WIRING HARNESS CLAMP

main82715-3D040¥660

827153D080BRACKET,WIRING HARNESS CLAMP

main82715-3D080¥510

827153D090BRACKET,WIRING HARNESS CLAMP

main82715-3D090¥510

827153D120BRACKET,WIRING HARNESS CLAMP

main82715-3D120¥430

827153D140BRACKET,WIRING HARNESS CLAMP

main82715-3D140¥510

827153D230BRACKET,WIRING HARNESS CLAMP

main82715-3D230¥870

827153D330BRACKET,WIRING HARNESS CLAMP

main82715-3D330¥370

827153D340BRACKET,WIRING HARNESS CLAMP

main82715-3D340¥510

8271589115BRACKET,WIRING HARNESS CLAMP

main82715-89115¥320

8271589118BRACKET,WIRING HARNESS CLAMP

main82715-89118¥440

8271589119BRACKET,WIRING HARNESS CLAMP

main82715-89119¥260

9011906915

main90119-06915¥60

9011908671

main90119-08671¥90

9017908053

main90179-08053¥140

91611B0610

main91611-B0610¥70

91611B0614

main91611-B0614¥110

91611G0612

main91611-G0612¥70

91621J0814

main91621-J0814¥60

9164180818

main91641-80818¥80

9165161016

main91651-61016¥130

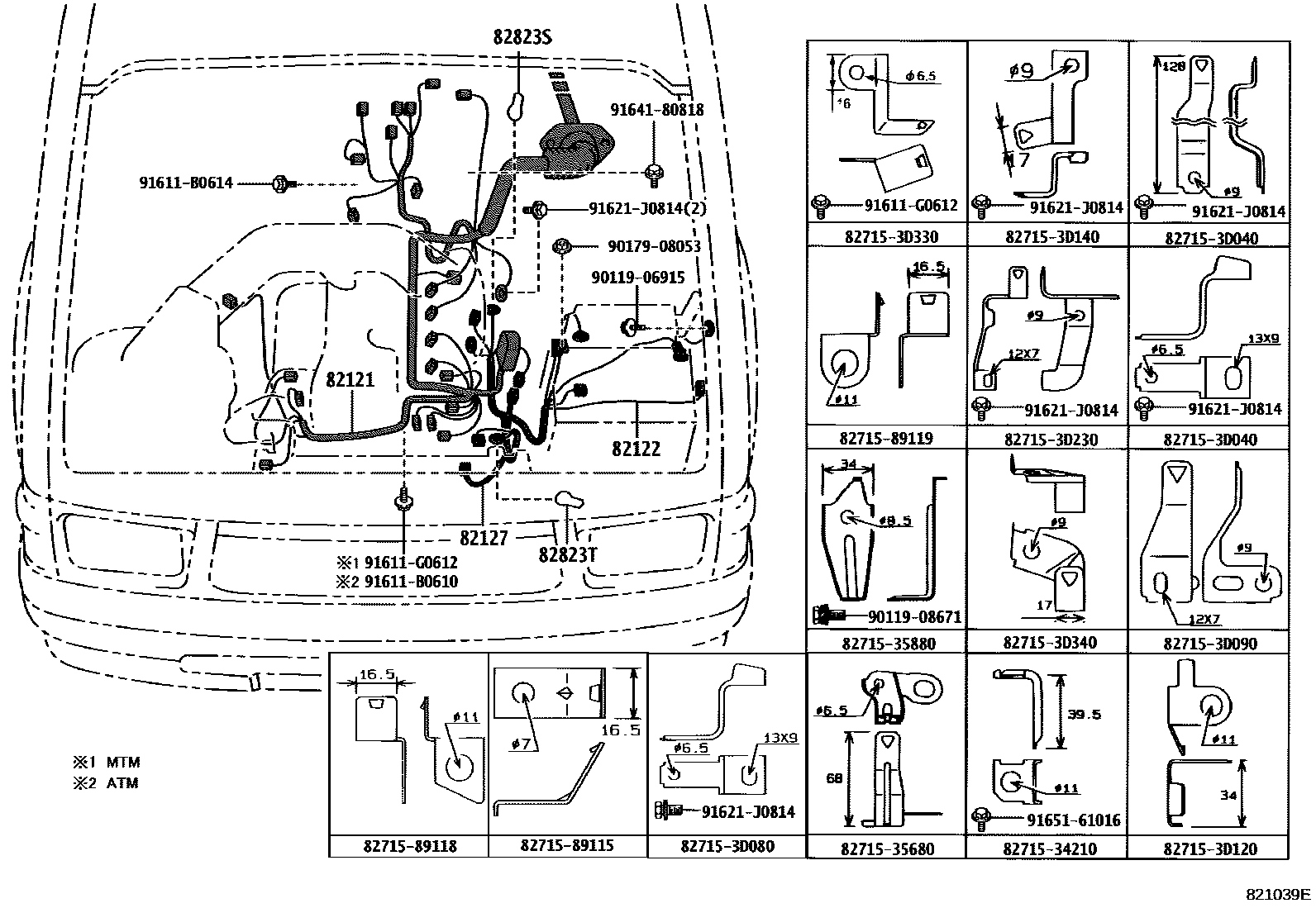

28 parts on this diagram · 14 diagrams in section
