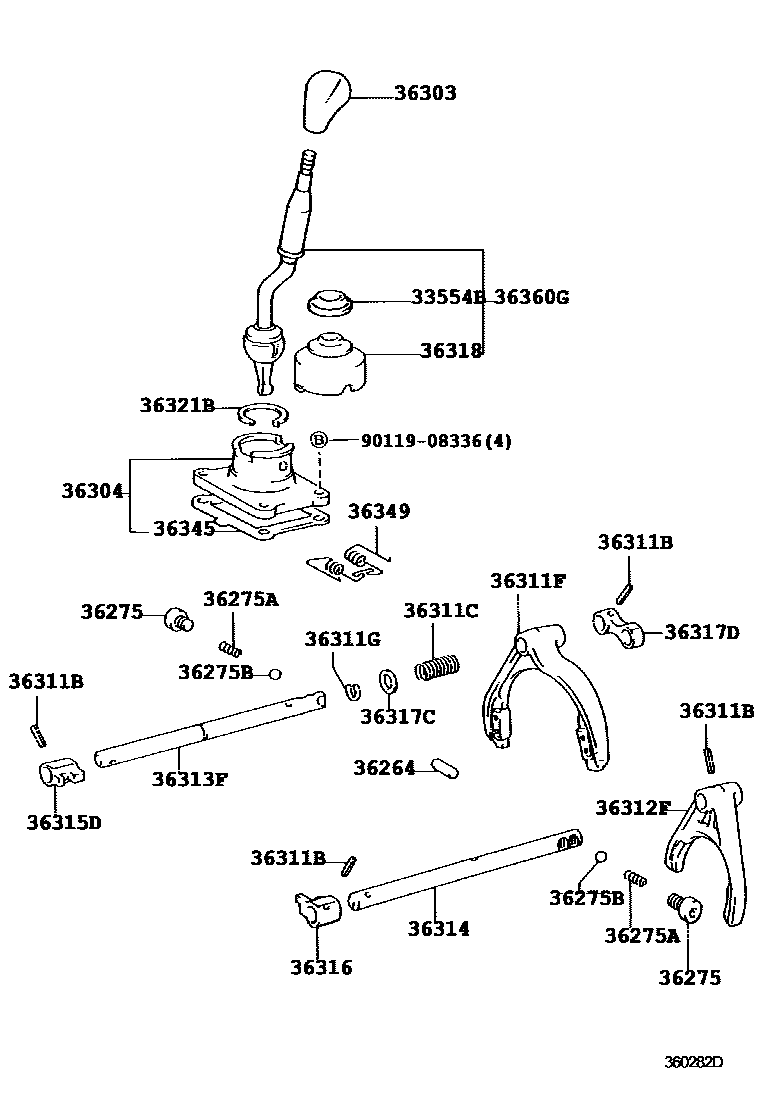

Toyota HILUX — TRANSFER LEVER & SHIFT ROD

33554BCAP, TRANSFER SHIFT LEVER

main33554-20010iLN16#,17#,RZN16#,174¥460199708-200407

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020iLN16#,17#,RZN16#,174¥150199708-200407

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014iLN16#,17#,RZN16#,174¥110199708-200407

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116iLN16#,17#,RZN16#,174¥100199708-200407

36275BBALL, SHIFT DETENT

main90360-10003iLN16#,17#,RZN16#,174¥100199708-200108

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35140-B1iLN16#,17#,RZN16#,174199708-200407

MD.MOON MIST,TRIM1#

sub36303-35140¥2,220

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35051iLN167,172,RZN169,174¥2,500199708-200407

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001iLN167,172,RZN169,174¥110199708-200407

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088iLN16#,17#,RZN16#,174¥150199708-200407

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35020iLN167¥7,400199708-200407

main36311-35030iLN16#,17#,RZN16#,174..Q¥5,000199708-200407

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iLN16#,17#,RZN16#,174¥80199708-200407

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35040iLN16#,17#,RZN16#,174¥1,980199708-200407

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35080iLN167,172,RZN169,174¥2,340199708-200407

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35110iLN167,172,RZN169,174¥2,640199708-200407

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36315-35010iLN16#,17#,RZN16#,174¥1,380199708-200407

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35020iLN16#,17#,RZN16#,174¥1,380199708-200407

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35020iLN16#,17#,RZN16#,174¥90199708-200407

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030iLN16#,17#,RZN16#,174¥400199708-200407

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iLN16#,17#,RZN16#,174¥290199708-200407

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iRZN169,174¥130199708-200407

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iLN165,170,RZN167¥170199708-200407

36349SPRING, TRANSFER SELECT RETURN

main36349-35020iLN165,170,RZN167¥280199708-200407

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35370iLN165,170¥14,600199708-199908

main36360-35380iRZN167¥14,600199708-199908

main36360-35400iLN167,172¥14,600199708-200407

main36360-35480iRZN169,174¥14,600199908-200308

9011908336

main90119-08336¥160

24 parts on this diagram · 1 diagram in section
