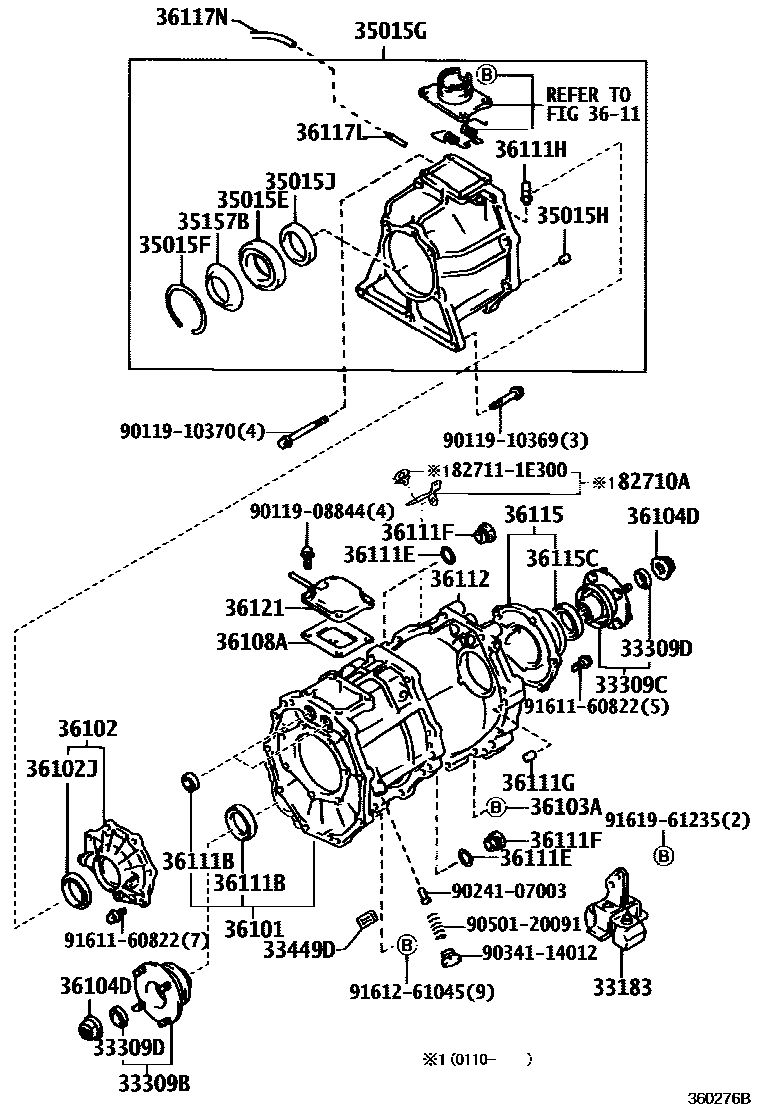

Toyota HILUX — TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33183DAMPER, TRANSFER DYNAMIC

main33183-34031iLN16#,17#..DCB,XTR¥20,300199708-199908

main33183-34031iLN167,172..DCB,XTR¥20,300199908-200108

main33183-34031iLN167,172..DCB,XTR¥20,300200108-200407

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35061iLN16#,17#,RZN16#,174¥8,900199708-200108

sub33309-35063¥8,800

sub90311-41017¥400

main33309-35061iLN167,172,RZN169,174¥8,900200108-200407

sub33309-35063¥8,800

sub90311-41017¥400

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35100iLN16#,17#,RZN16#,174¥7,700199708-200108

main33309-35100iLN167,172,RZN169,174¥7,700200108-200407

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iLN16#,17#,RZN16#,174¥120199708-200108

main90312-23001iLN167,172,RZN169,174¥120200108-200407

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iLN16#,17#,RZN16#,174¥650199708-200108

main33449-32020iLN167,172,RZN169,174¥650200108-200407

35015EBEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER)

main90363-37001iLN165,170,RZN169,174¥1,760199708-200108

main90363-37001iRZN169,174¥1,760200108-200308

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iLN165,170,RZN169,174¥80199708-200108

main90521-72001iRZN169,174¥80200108-200308

35015GADAPTER, TRANSFER, REAR

main35015-35011iLN165,170,RZN169,174¥27,400199708-200108

main35015-35011iRZN169,174¥27,400200108-200308

35015HPIN, RING(FOR TRANSFER CASE)

main90253-11001iLN165,170¥120199708-199908

main90253-11001iRZN169,174¥120199908-200108

main90253-11001iRZN169,174¥120200108-200308

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-40007iLN165,170,RZN169,174¥400199708-200108

main90311-40007iRZN169,174¥400200108-200308

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-35010iLN165,170,RZN169,174¥1,340199708-200108

sub35157-60010¥820

main35157-35010iRZN169,174¥1,340200108-200207

sub35157-60010¥820

main35157-60010iRZN169,174¥820200207-200308

36101CASE SUB-ASSY, TRANSFER

main36101-35120iLN16#,17#,RZN16#,174¥74,500199708-200108

sub36101-35121¥74,500

sub33309-35062¥8,900

main36101-35120iLN167,172,RZN169,174¥74,500200108-200407

sub36101-35121¥74,500

sub33309-35062¥8,900

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35050iLN16#,17#,RZN16#,174¥4,910199708-200011

sub36102-35051¥4,910

main36102-35051iLN167,172,RZN169,174¥4,910200011-200108

main36102-35051iLN167,172,RZN169,174¥4,910200108-200407

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40021iLN16#,17#,RZN16#,174¥400199708-200108

main90311-40021iLN167,172,RZN169,174¥400200108-200407

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iLN16#,17#,RZN16#,174¥120199708-200108

���W�|�P�D�Q�T�o�w�T�T�|�R�O

main90119-08A28iLN167,172,RZN169,174¥120200108-200407

���W�|�P�D�Q�T�o�w�T�T�|�R�O

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iLN16#,17#,RZN16#,174¥220199708-200108

main90179-22016iLN167,172,RZN169,174¥220200108-200407

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35030iLN16#,17#,RZN167¥620199708-199803

sub36108-35031¥620

main36108-35031iLN16#,17#,RZN16#,174¥620199803-200108

sub36128-35060¥380

main36108-35031iLN167,172,RZN169,174¥620200108-200208

sub36128-35060¥380

main36128-35060iLN167,172,RZN169,174¥380200208-200407

3611

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iLN167,172,RZN169,174¥210200108-200407

�t�H�[�N�@�V���t�g��

main90311-15008iLN16#,17#,RZN16#,174¥210199708-200108

�t�H�[�N�@�V���t�g��

main90311-41008iLN16#,17#,RZN16#,174¥390199708-200108

�t�����g�@�A�E�g�v�b�g��

sub90311-41011¥390

main90311-41008iLN167,172,RZN169,174¥390200108-200207

�t�����g�@�A�E�g�v�b�g��

sub90311-41011¥390

main90311-41010iLN167,172,RZN169,174¥400200209-200407

�t�����g�@�A�E�g�v�b�g��

sub90311-41012¥400

main90311-41011iLN167,172,RZN169,174¥390200207-200209

�t�����g�@�A�E�g�v�b�g��

sub90311-41010¥400

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iLN167..D¥110199708-200108

��(LOW ����)

main90430-18008iLN167,172,RZN169,174¥110200108-200407

��(LOW ����)

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iLN167..D¥180199708-200108

��(LOW ����)

main90341-18006iLN167,172,RZN169,174¥180200108-200407

��(LOW ����)

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iLN16#,17#,RZN16#,174¥120199708-200108

�������P�S�C�O�a���P�O

main90250-10214iLN167,172,RZN169,174¥120200108-200407

�������P�S�C�O�a���P�O

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03085iLN165,170,RZN169,174¥500199708-200108

main90930-03085iRZN169,174¥500200108-200308

36112CASE, TRANSFER, REAR

main36112-35070iLN16#,17#,RZN16#,174¥23,200199708-200108

main36112-35070iLN167,172,RZN169,174¥23,200200108-200407

36115HOUSING, TRANSFER EXTENSION

main36105-35020iLN16#,17#,RZN167¥7,800199708-199901

sub36105-35040¥6,000

main36105-35040iLN16#,17#,RZN16#,174¥6,000199901-200108

main36105-35040iLN167,172,RZN169,174¥6,000200108-200407

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iLN16#,17#,RZN16#,174¥390199708-200108

sub90311-41020¥390

main90311-41007iLN167,172,RZN169,174¥390200108-200407

sub90311-41020¥390

36117ADAPTER, TRANSFER

main36107-35100iRZN167¥56,000199708-199908

main36107-35100iLN167,172¥56,000199708-200108

main36107-35100iLN167,172¥56,000200108-200407

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iLN165,170,RZN167¥180199708-199908

main90441-05001iLN167,172,RZN169,174¥180199708-200108

main90441-05001iLN167,172,RZN169,174¥180200108-200407

36117NHOSE(FOR TRANSFER ADAPTER)

main90904-45005iLN16#,17#,RZN16#,174¥350199708-200108

main90904-45005iLN167,172,RZN169,174¥350200108-200407

36121COVER, TRANSFER CASE, NO.1

main36102-35020iLN16#,17#,RZN167¥3,400199708-199901

sub36102-35040¥2,130

main36102-35040iLN16#,17#,RZN16#,174¥2,130199901-200108

main36102-35040iLN167,172,RZN169,174¥2,130200108-200407

82710ACLAMP ASSY, WIRING HARNESS

main82710-35040iLN167,172,RZN169,174¥510200110-200407

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300¥70

9011908844

main90119-08844¥140

9011910369

main90119-10369¥110

9011910370

main90119-10370¥110

9024107003

main90241-07003¥100

9034114012

main90341-14012¥190

9050120091

main90501-20091¥110

9161160822

main91611-60822¥170

9161261045

main91612-61045¥120

9161961235

main91619-61235¥130

41 parts on this diagram · 2 diagrams in section
