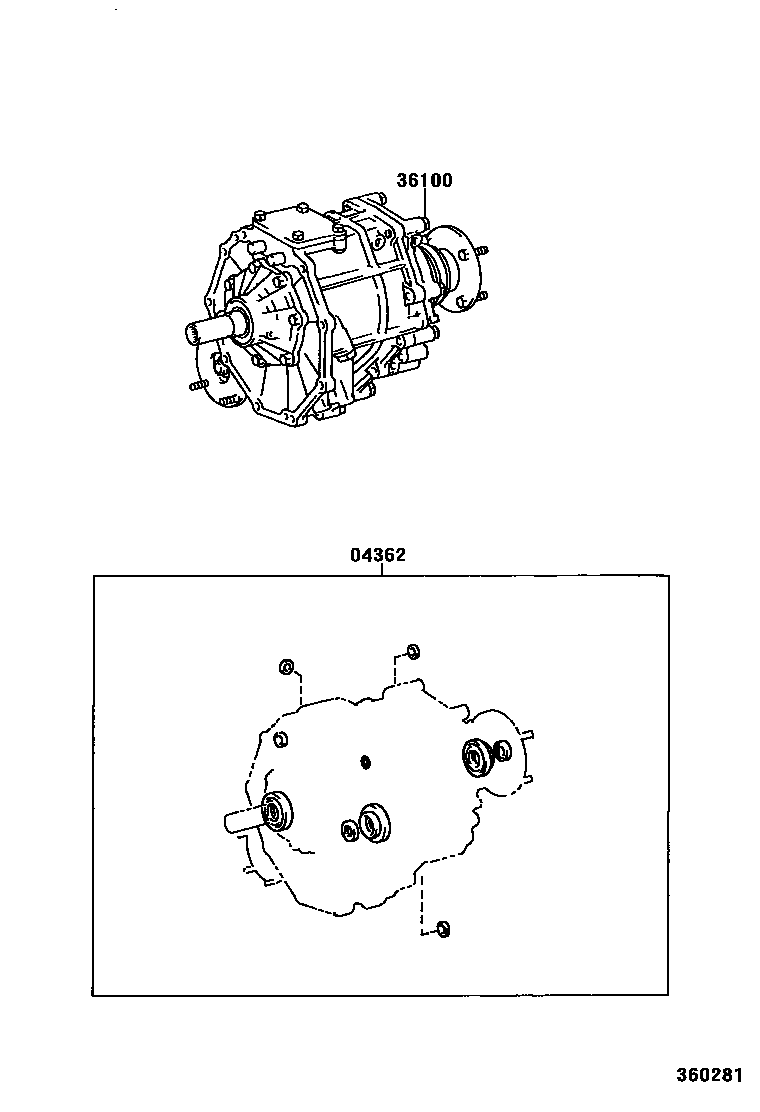

Toyota HILUX — TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-35060iLN16#,17#,RZN167¥3,720199708-199905

sub04362-35061¥3,720

main04362-35061iLN167,172,RZN169,174¥3,720199905-200407

sub04362-35062¥3,720

36100TRANSFER ASSY

main36100-34090iRZN169,174¥208,000199908-200308

main36100-3D130iLN167..Q¥208,000199708-200108

main36100-3D130iLN172¥208,000200108-200407

main36100-3D170iLN167..D¥208,000199708-200407

main36100-3D190iLN167¥208,000199708-200407

main36100-3D230iLN165,170¥208,000199708-199908

2 parts on this diagram · 1 diagram in section
