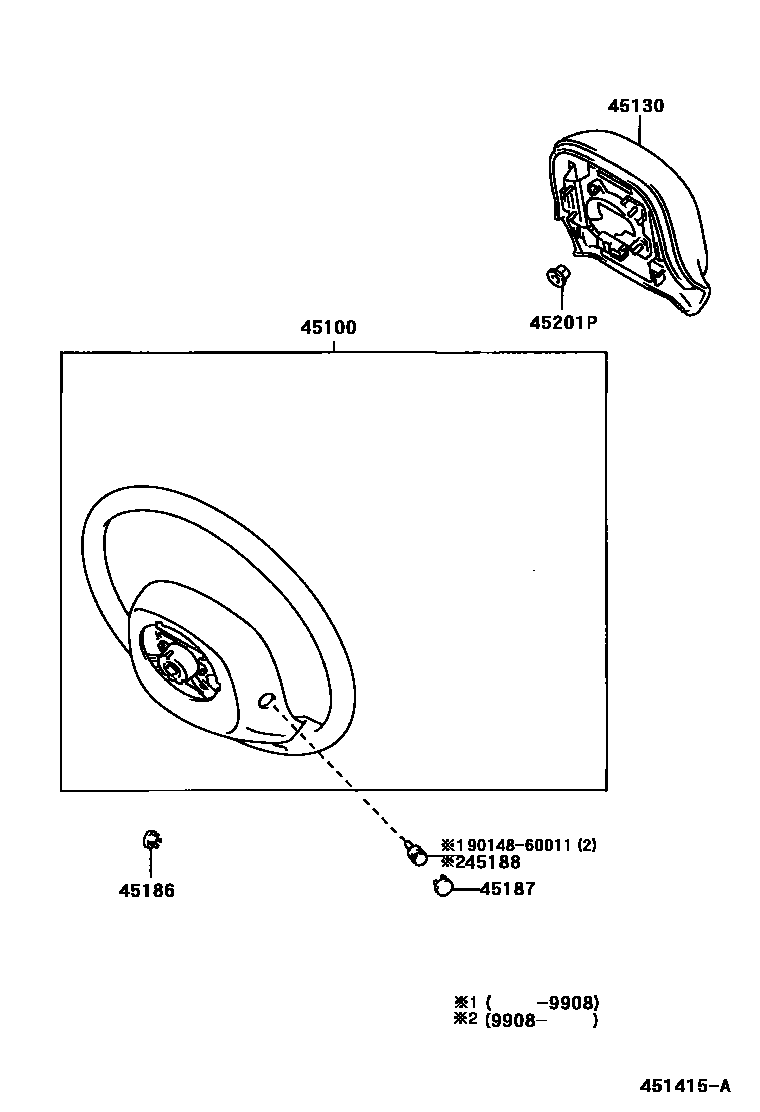

Toyota HILUX — STEERING WHEEL

0001 12-SPOKE,��(*80) 0002 14-SPOKE,��(*80)

45100WHEEL ASSY, STEERING

main45100-26250-C0iRZN147,167;LN147,167..SCB199708-199908

sub45100-26250¥27,900

main45100-26290-C0iRZN169;LN147,167,RZN147,174..T1,T3199908-200407

sub45100-26290¥27,900

main45100-26300-C0iLN147,167,172,RZN147,152..DCB,XTR199908-200407

sub45100-26300¥27,900

main45100-35380-C0iLN147,16#,17#..DCB,XTR199708-199908

45130BUTTON ASSY, HORN

main45130-35350-C0iLN147,16#,17#,RZN147,167199708-199908

BLACK,TRIM1#

main45130-35380-C0iLN147,167,172,RZN147,152,169,174199908-200407

BLACK,TRIM1#

sub45130-35380¥77,200

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-26010-C0iLN147,16#,17#,RZN147,167199708-199908

BLACK,TRIM1#

sub45186-26010¥110

main45186-33050-C0iLN147,167,172,RZN147,152,169,174199908-200407

BLACK,TRIM1#

sub45186-33050¥110

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-26010-C0iLN147,16#,17#,RZN147,167199708-199908

BLACK,TRIM1#

sub45186-26010¥110

main45186-33050-C0iLN147,167,172,RZN147,152,169,174199908-200407

BLACK,TRIM1#

sub45186-33050¥110

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iLN147,167,172,RZN147,152,169,174¥160199908-200407

45201PNUT, STEERING WHEEL SET

main90179-12071iLN147,16#,17#,RZN147,152,16#,174¥130199708-200407

9014860011

main90148-60011¥230

7 parts on this diagram · 2 diagrams in section
