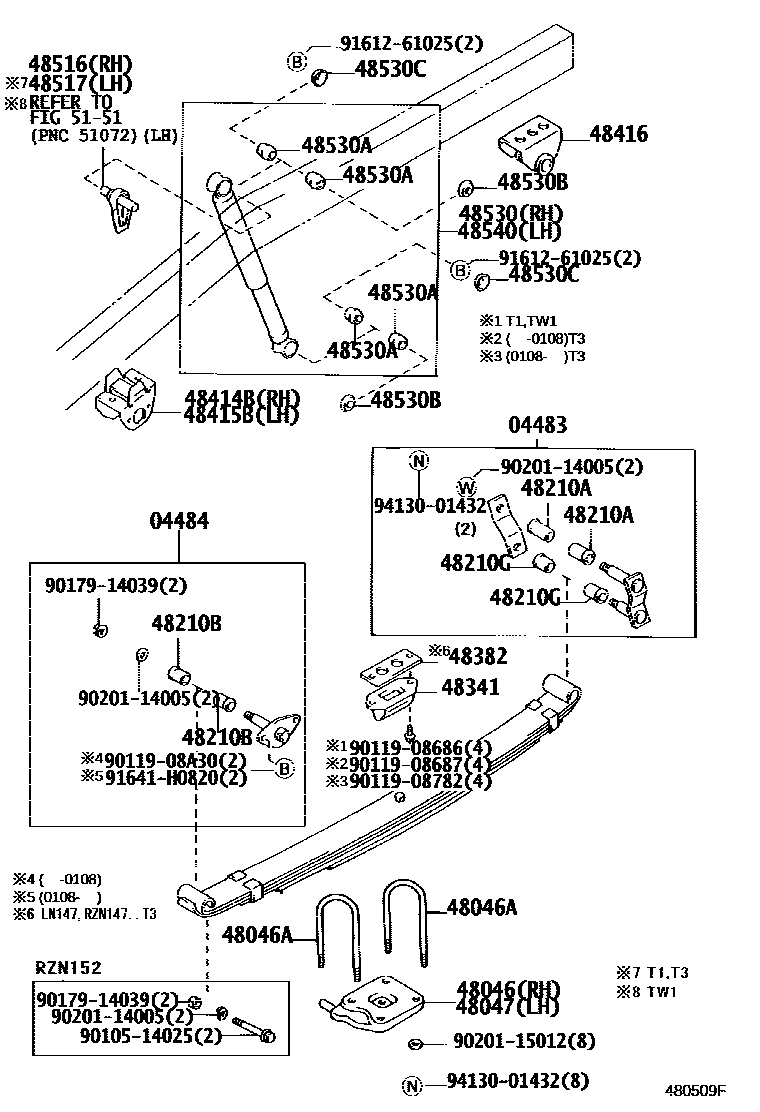

Toyota HILUX — REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 14-LEAF 0004 14-LEAF 0005 15-LEAF 0006 15-LEAF 0007 14-LEAF 0009 16-LEAF 0010 14-LEAF 0011 15-LEAF

04483SHACKLE KIT, REAR SPRING

main04483-35120iLN167;LN147,165,17#,RZN147,152,16#,174..DCB,XTR¥5,500199708-200407

main04483-35130iLN147,RZN147..SCB¥5,500199708-200407

04484PIN KIT, REAR SPRING

main04484-35070iLN147,RZN147..SCB¥3,570199708-200407

main04484-35080iLN147..TW1¥3,570199708-200407

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35170iLN165,170,RZN167¥3,420199708-200407

main48046-35230iLN147,RZN147,152¥2,920199708-200407

48046ABOLT, U(FOR REAR SPRING)

main90117-14039iRZN147..Q¥1,290199708-200108

main90117-14040iLN147¥1,460199708-200407

main90117-14044iLN167,172¥1,660199708-200407

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35170iLN167,172,RZN169,174¥3,420199708-200407

main48046-35230iLN147,RZN147,152¥2,920199708-200407

48210SPRING ASSY, REAR RH

main48210-35870iRZN174¥45,500199708-199912

sub48210-35871¥45,500

main48210-35871iLN167,172,RZN169,174..Q¥45,500199912-200108

sub48210-35A00¥45,500

main48210-35872iLN172,RZN169,174¥50,400200108-200407

main48210-35880iLN167..D¥63,300199708-199912

sub48210-35881¥63,300

main48210-35881iLN167..D¥63,300199912-200108

sub48210-35882¥63,400

main48210-3D010iRZN147..Q¥34,000199708-200108

main48210-3D040iLN147..TW1¥42,500199708-200407

main48210-3D070iLN147,RZN147..T1¥44,500199708-200407

main48210-3D080iLN147,RZN147..T3¥51,900199708-200407

main48210-3D150iRZN152¥44,200199908-200308

main48210-3D170iRZN174¥45,500199908-199911

main48210-3D220iLN167¥63,900200108-200407

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18013iRZN147¥390199708-200407

main90385-18019iLN165,170,RZN167¥440199708-200407

48210BBUSH(FOR REAR SPRING PIN)

main90385-18020iLN147..TW1¥390199708-200407

main90385-18046iLN147..SCB¥380199708-200407

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18020iLN167;LN147,172..DCB,XTR¥390199708-200407

main90385-18046iRZN147¥380199708-200407

48341BUMPER, REAR SPRING

main48341-35080iLN147,RZN147,152..T1¥3,480199708-200407

main48341-35090iLN147,RZN147..T3¥3,830199708-200407

main48341-35100iLN147..TW1¥4,280199708-200407

48382SPACER, BUMPER BLOCK

main48382-35021iLN147,RZN147..T3¥1,870199708-200407

48414BBRACKET, SPRING, NO.3 RH

main48404-35050iRZN147¥3,050199708-200407

main48404-35060iRZN152¥2,240199908-200308

main48414-35120iLN165,170,RZN167¥1,620199708-200407

48415BBRACKET, SPRING, NO.3 LH

main48407-35040iRZN152¥2,240199908-200308

main48407-35050iRZN147¥3,050199708-200407

main48415-35050iLN165,170,RZN167¥1,620199708-200407

48416BRACKET, SPRING, NO.4

main48416-35070iLN165,170,RZN167¥1,840199708-200407

main48416-35120iRZN147,152¥1,820199708-200407

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35030iLN147,RZN147,152¥2,270199708-200407

main48505-35070iLN167,172,RZN169,174¥2,470199708-200407

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-35030iLN147,RZN147,152..T1,T3¥2,270199708-200407

main48506-35010iLN170¥2,500199708-200407

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09150iRZN152¥7,000199908-200108

main48531-80637iRZN152¥7,000199908-200308

main48531-80638iLN147,RZN147..T1,TW1¥7,000199708-200407

main48531-80641iLN147,RZN147..T3¥7,000199708-200407

main48531-80642iRZN147..Q¥6,800199708-200108

main48531-80644iLN16#,17#,RZN167¥8,100199708-199809

sub48531-80669¥8,200

main48531-80669iLN165,170,RZN167¥8,200199809-200407

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iLN147,RZN147,152¥260199708-200407

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iRZN147,152¥200199708-200407

main90948-03011iLN167,172¥130199708-200407

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03012iLN147¥100199708-200407

main90948-03020iLN167,172¥350199708-200407

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09150iRZN152¥7,000199908-200108

main48531-80637iRZN152¥7,000199908-200308

main48531-80638iLN147,RZN147..T1,TW1¥7,000199708-200407

main48531-80641iLN147,RZN147..T3¥7,000199708-200407

main48531-80642iRZN147..Q¥6,800199708-200108

main48541-39305iLN16#,17#,RZN167¥8,100199708-199809

sub48541-39306¥8,200

main48541-39306iLN167,172,RZN169,174¥8,200199809-200407

sub48541-39316¥7,000

5151

9010514025

main90105-14025¥670

9011908686

main90119-08686¥90

9011908687

main90119-08687¥100

9011908782

main90119-08782¥190

9011908A30

main90119-08A30¥130

9017914039

main90179-14039¥240

9020114005

main90201-14005¥240

9020115012

main90201-15012¥110

9161261025

main91612-61025¥120

91641H0820

main91641-H0820¥90

9413001432

main94130-01432¥110

33 parts on this diagram · 10 diagrams in section
