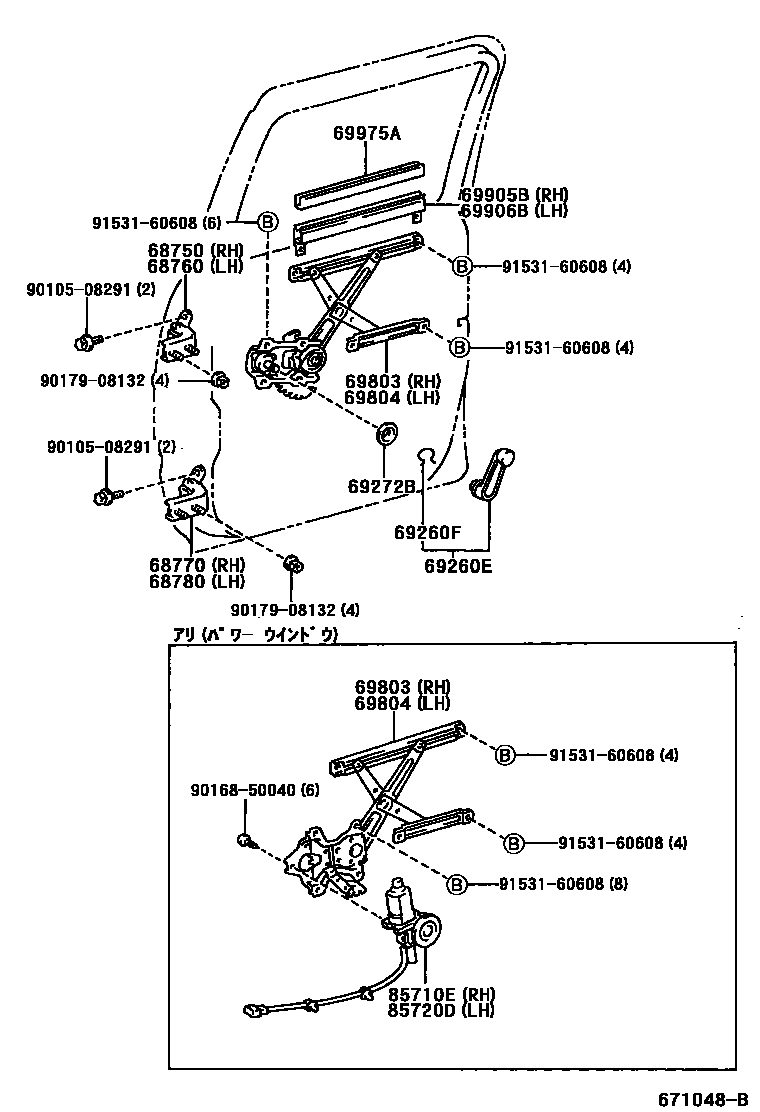

Toyota HILUX — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32060iRZN169¥2,720199708-200407

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32060iLN147,16#,RZN147,16#..TW1¥3,250199708-200407

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-35030iLN147,16#,RZN147,16#..TW1¥3,250199708-200407

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-35030iLN147,16#,RZN147,16#..TW1¥3,250199708-200407

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-89104-B1iLN147,16#,RZN147,167..TW1199708-200407

MD.MOON MIST,TRIM1#

sub69260-89104¥1,510

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iLN147,16#,RZN147,167..TW1¥160199708-200407

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010iLN147,16#,RZN147,167..TW1¥330199708-200407

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-35040iLN147,167..TW1¥6,800199708-200407

main69803-35050iLN16#,RZN147,16#..Q¥6,800199708-200308

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-35040iLN147,167..TW1¥6,800199708-200407

main69804-35050iRZN169¥6,800199708-200308

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69901-89113iLN147,16#,RZN147,16#..TW1¥680199708-200407

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69901-89113iRZN169¥680199708-200407

69975AFILLER, REAR DOOR GLASS CHANNEL

main69971-89106iLN147,16#,RZN147,16#..TW1¥610199708-200407

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35130iLN16#,RZN147,16#..Q¥25,500199708-200308

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35100iLN16#,RZN147,16#..Q¥25,500199708-200308

9010508291

main90105-08291¥90

9016850040

main90168-50040¥70

9017908132

main90179-08132¥100

9153160608

main91531-60608¥60

18 parts on this diagram · 1 diagram in section
